InLine 44432C PoE adapter 10 Gigabit Ethernet 52 V

Compatible with current PoE standards:Supports IEEE 802.3af/at/bt for flexible deployment in professional networks.
Powerful PoE++ port:Delivers up to 90 W via a Cat.6 or better cable – ideal for energy-intensive end devices.
Future-proof with 10GBase-T:The 10 Gigabit connection ensures maximum bandwidth even for demanding applications.
High operational reliability:Integrated surge and ESD protection reliably protects connected devices during continuous operation.
Network upgrade without switch replacement:Enables retrofitting of PoE++ functionality without interfering with existing switching infrastructure.

The InLine® PoE++ Injector 10Gigabit is the professional solution for expanding existing networks with powerful Power over Ethernet technology. It supports all relevant standards – IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++) – and thus offers full flexibility for the integration of modern network devices.
With a maximum output power of up to 90 W via a Cat.6 or better Ethernet cable, the injector reliably supplies even particularly power-hungry end devices. Typical applications include professional WLAN access points, IP cameras with PTZ function, video door intercom systems and thin clients. The integrated 10GBase-T port ensures that even large amounts of data are transferred without bottlenecks – a clear advantage in modern IT environments.
Thanks to its simple plug-and-play installation, the PoE++ injector can be easily integrated into existing network infrastructures without having to replace the existing switch architecture. The integrated surge and ESD protection ensures reliable operation even under demanding conditions.

Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3an 10GBase-T, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE

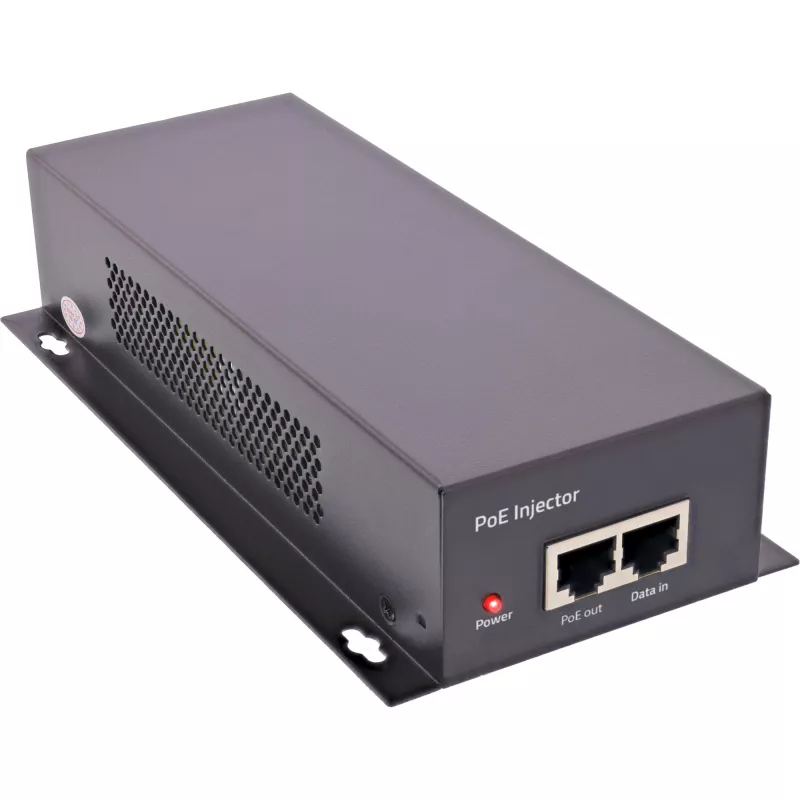

Port ‘Data in’: 1x 10GBase-T RJ45
Port ‘PoE out’: 1x 10GBase-T RJ45

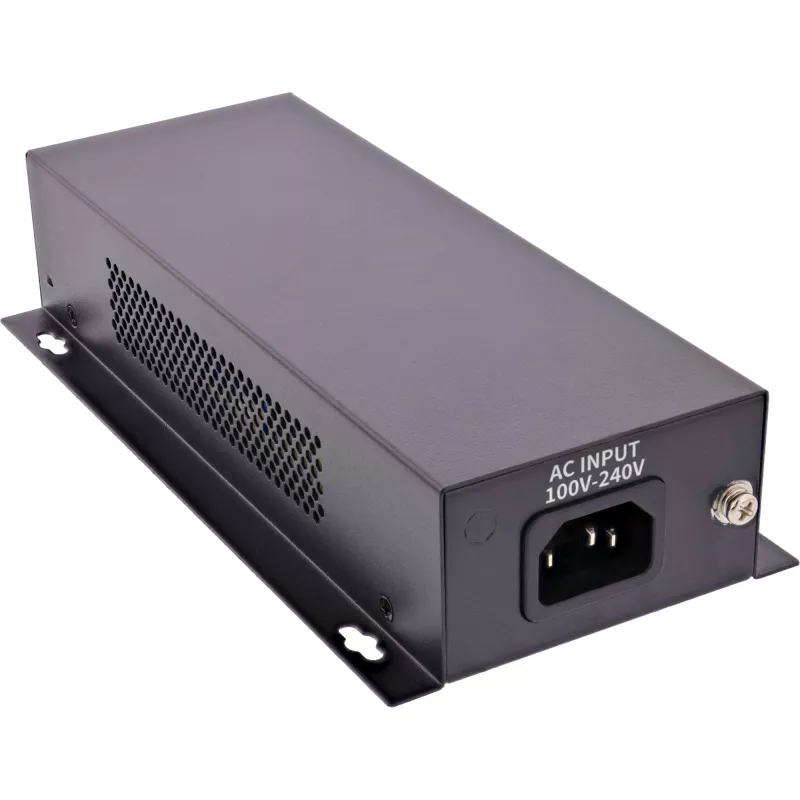

Power supply: AC 100 V - 240 V 50/60 Hz / DC 52 V / 1.92 A
PoE output voltage: DC 44-57 V
PoE output power: max. 90 watts
Overvoltage protection: Connection overvoltage: differential mode 2KV, common mode 6KV / Electrostatic: ESD 6KV, air 8KV (Class B)
LED indicators: POWER
Dimensions (L x W x H): 187 x 95 x 40 mm
Weight: approx. 490 g
Ambient conditions: Operating temperature -20-50 °C, storage temperature -40-85 °C, humidity 5-90 % non-condensing

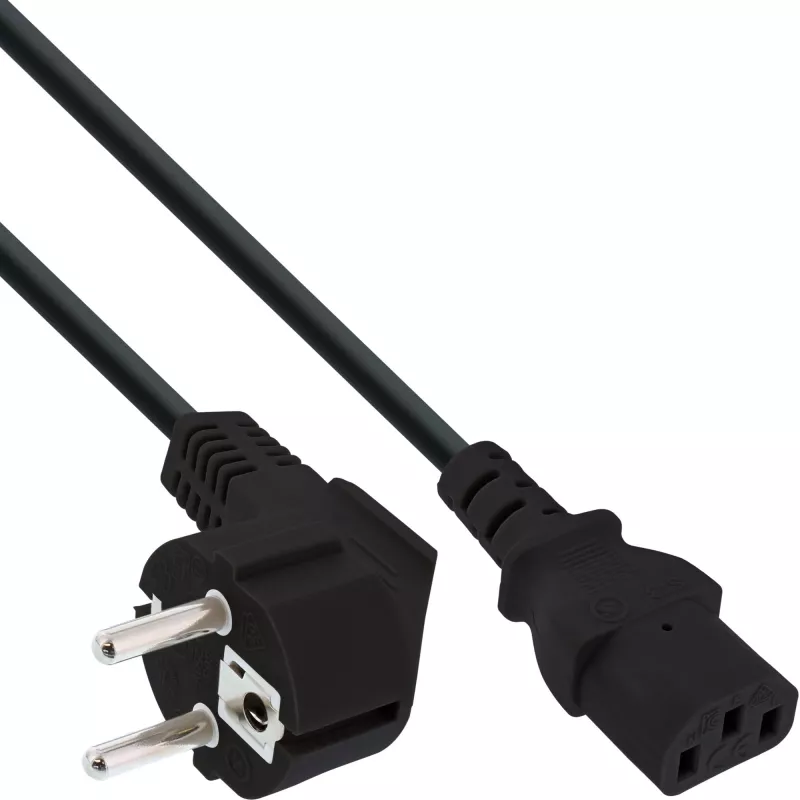

Scope of delivery: 1x InLine® PoE++ injector 10 Gigabit, 802.3bt, 90 Watt, 2x operating instructions (German/English), 1x power cable

InLine 44432C. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, LED indicators: Power, Power protection features: Over voltage, Surge protection. Power over Ethernet (PoE) voltage: 52 V, Output power: 90 W, AC adapter input voltage: 100 - 240 V. Compliance certificates: CE, TÜV mark. Width: 90 mm, Depth: 190 mm, Height: 43 mm

How to use

Install the injector inline between your network switch and the powered device by connecting the switch uplink to the injector input and the injector output to the PoE device using appropriate Cat6A or better cabling to preserve 10 Gbps performance. Ensure the switch or upstream device is configured for passthrough or is able to supply data without interfering with PoE negotiation. Power the injector from a suitable AC source following the product safety instructions, then verify PoE negotiation and device power-up. Monitor device operation and link speed via the connected devices' management interfaces.

Recommendations

Use shielded, high-quality Ethernet cable (Cat6A or Cat7) for runs requiring full 10 Gbps and high PoE power to minimize heat and power loss. Verify the connected device supports PoE++ and the required power budget before deployment. For long cable runs or outdoor installations, consider environmental protection and cable routing practices to maintain performance and safety.
