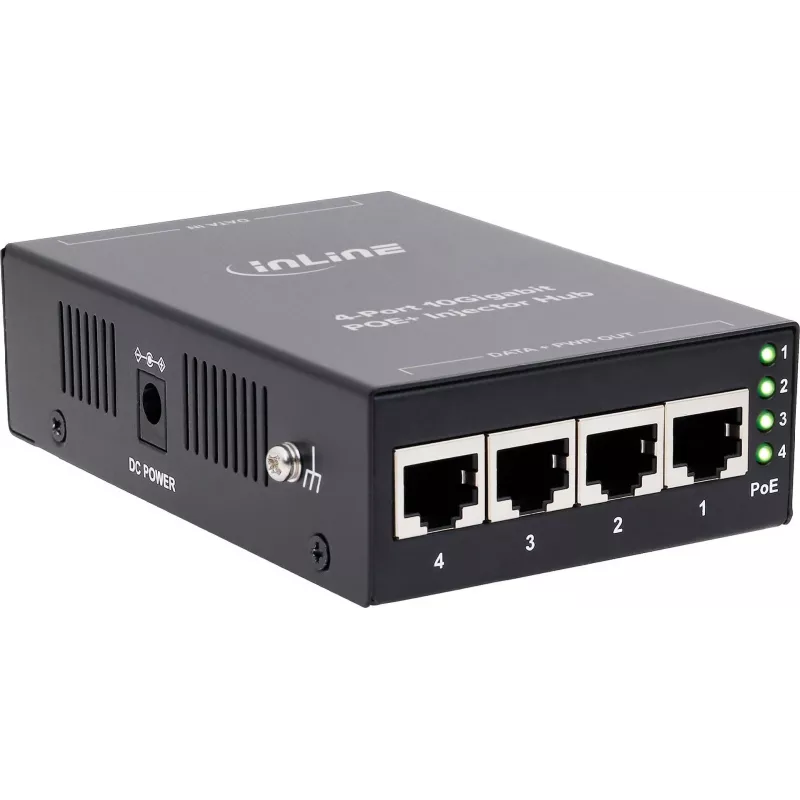

InLine 32304H 4-Port PoE+ 10Gigabit Injector Hub, Metal, Fanless, 120W Budget

Power and connect four PoE+ devices at full 10Gbps speed with this robust metal injector hub. Ideal for IT administrators deploying high-bandwidth access points, IP cameras, or VoIP phones in offices or industrial environments where a network switch lacks PoE capability. Simply connect your existing non-PoE 10G switch to the uplink port and inject power and data to four PoE+ endpoints over standard Cat6a/Cat7 cabling.

Key specifications

• 4x PoE+ 10G RJ45 ports (IEEE 802.3af/at, up to 30W per port)
• 1x 10G RJ45 uplink port (non-PoE) for connection to existing network
• Total PoE power budget: 120W (external 52V/2.3A DC adapter included)
• 10 Gigabit Ethernet data rate on all ports (10GBASE-T)
• Fanless metal housing for silent, durable operation
• Desktop or wall-mountable design
• LED indicators for power, link/activity, and PoE status per port
• Supports jumbo frames up to 16KB, 16K MAC address table, 100Gbps switching capacity
• Operating temperature: 0°C to 40°C

Why choose it

This injector hub eliminates the need to replace your existing non-PoE 10G switch. It delivers both data and power over a single cable, simplifying installation and reducing clutter. The fanless metal chassis ensures silent operation and long-term reliability, making it suitable for noise-sensitive areas. With a 120W budget, it can power multiple high-demand PoE+ devices simultaneously.

Ideal use cases

• Deploying Wi-Fi 6/6E access points that require 10G uplinks and PoE+ power
• Connecting high-resolution IP cameras in surveillance systems
• Powering VoIP phones and video conferencing endpoints in modern offices
• Industrial or commercial settings where a separate PoE switch is not desired

Good to know

The hub is plug-and-play with no configuration required. It supports all standard PoE/PoE+ powered devices (PDs) and automatically negotiates power. The included external power adapter ensures stable operation. Mounting hardware for wall installation is included.
