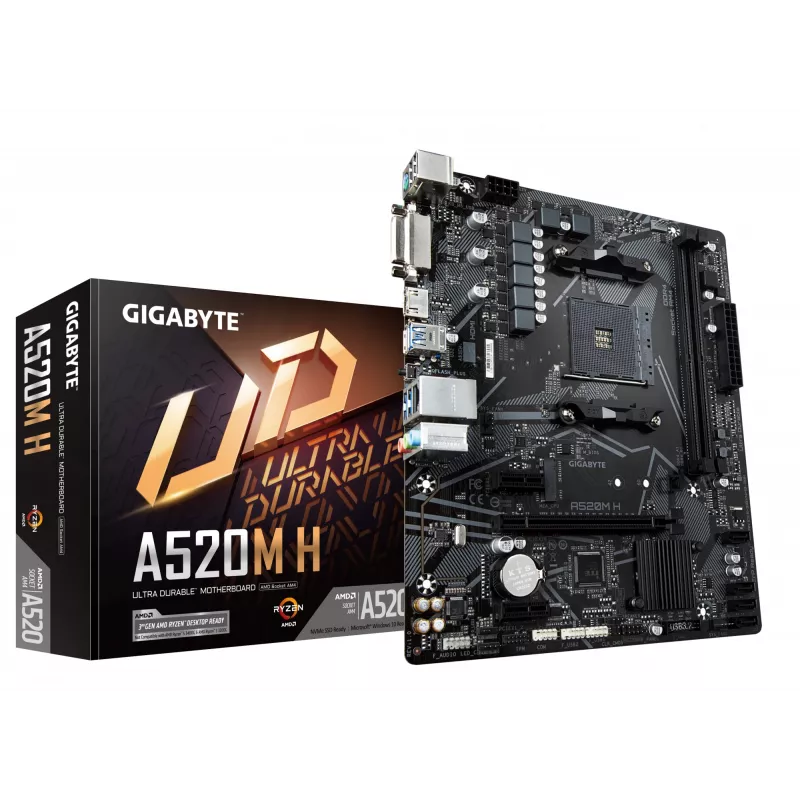

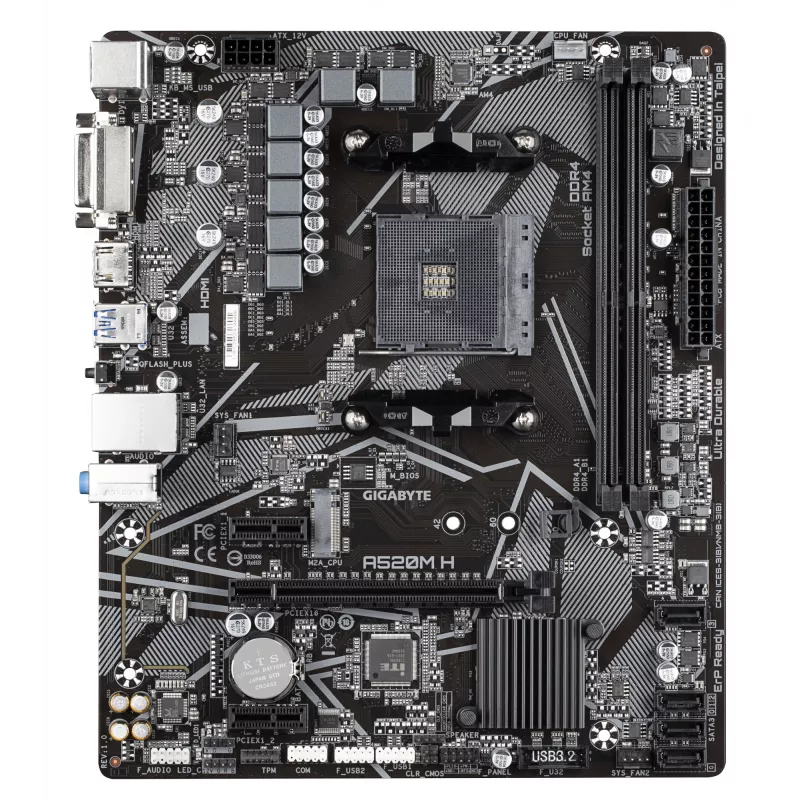

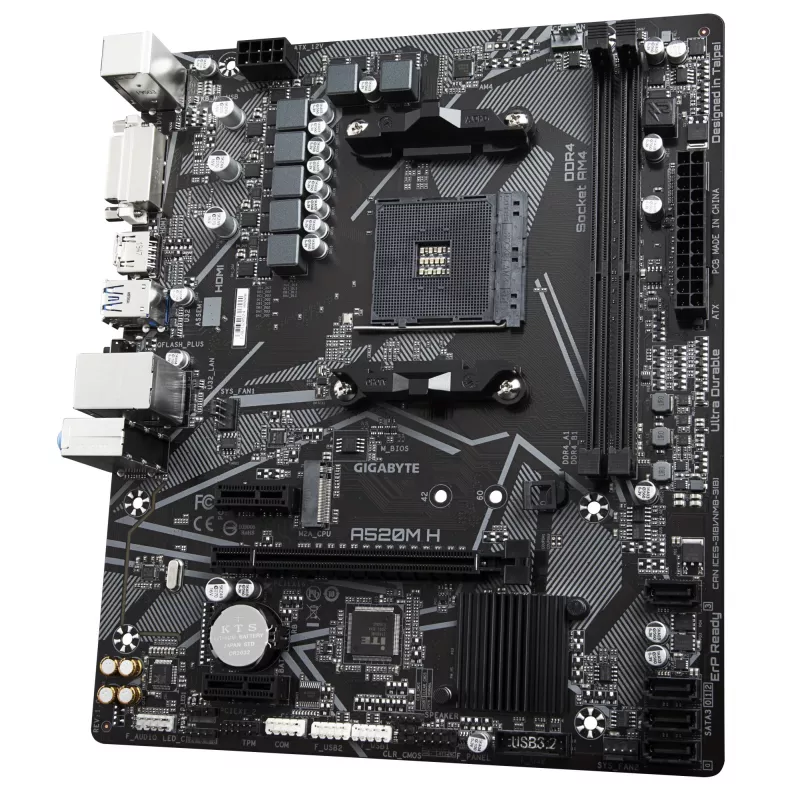

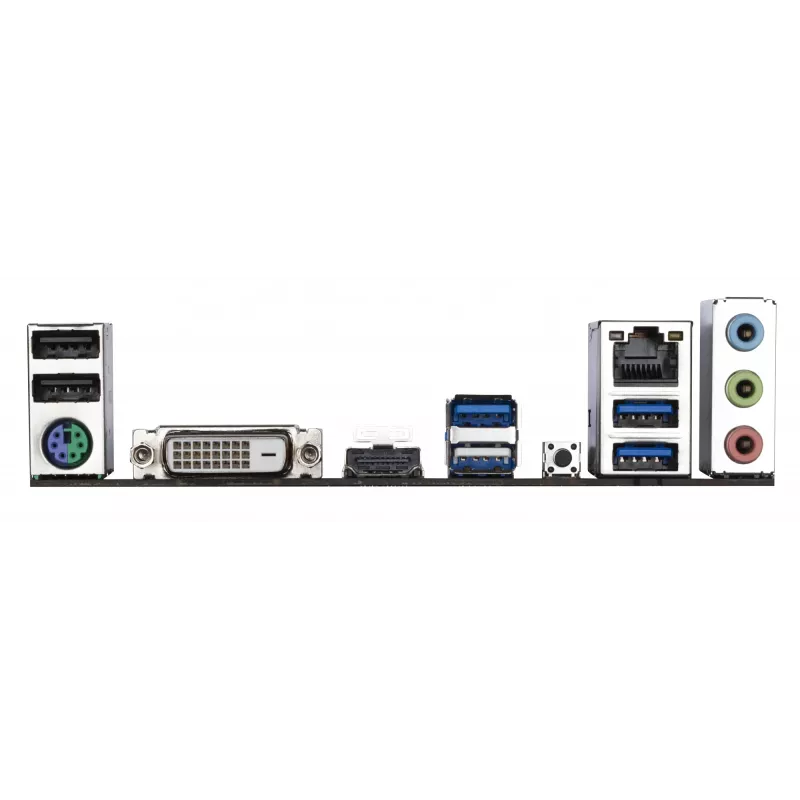

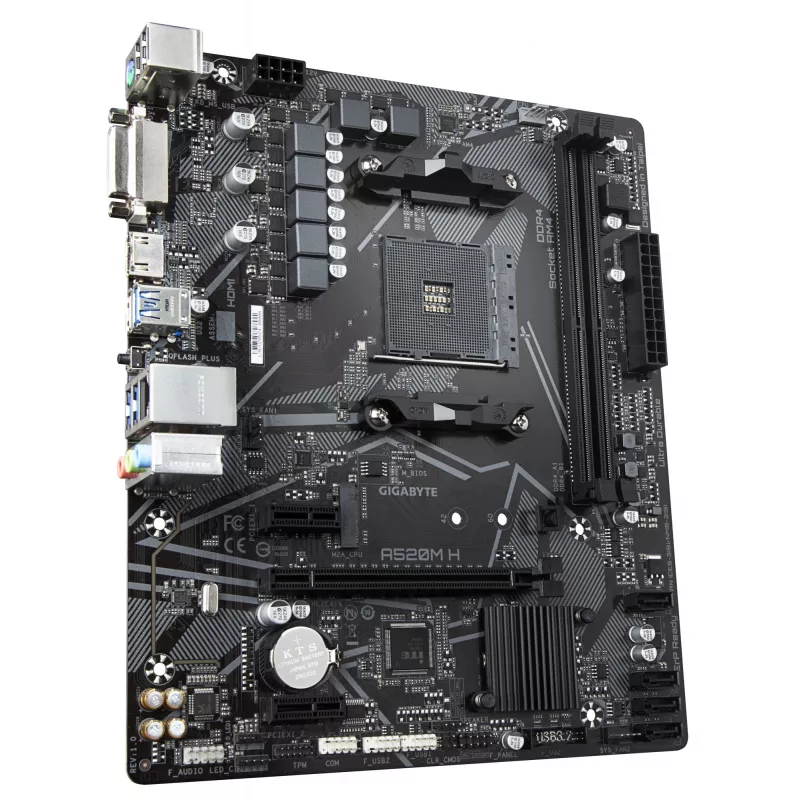

GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
36 mo.
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
R1,796
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Out Of Stock
Add to Wish List Compare this Product
Stock Out Of StockNo Stock Code 1729141 Brand GIGABYTE Model A520M H Warranty 3 Years
CategoryMotherboards

Shipping & Returns

ASRock Motherboard A520M-HDV AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
Quickview
ASRock Motherboard A520M-HDV AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
R1,328
Ex Tax:R1,155
Add to Cart Add to Wish List Compare this Product
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
Quickview
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
R1,821
Ex Tax:R1,583
Add to Cart Add to Wish List Compare this Product
Motherboard ASRock A520M-ITX/ac Socket AM4 micro ATX
Quickview
Motherboard ASRock A520M-ITX/ac Socket AM4 micro ATX
R2,329
Ex Tax:R2,026
Add to Cart Add to Wish List Compare this Product
Motherboard MSI PRO B760M-P micro ATX, Intel B760, LGA 1700, 4× DDR5 slots, 192 GB, SATA III, PCIe 4.0
Quickview
Motherboard MSI PRO B760M-P micro ATX, Intel B760, LGA 1700, 4× DDR5 slots, 192 GB, SATA III, PCIe 4.0
R2,155
Ex Tax:R1,874
Add to Cart Add to Wish List Compare this Product
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Quickview
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
R4,660
Ex Tax:R4,052
Add to Cart Add to Wish List Compare this Product
Motherboard ASUS PRIME B650-PLUS WIFI ATX — AMD B650, Socket AM5, DDR5, 4 DIMM, 192 GB, Wi‑Fi 6E, 2.5Gb LAN
Quickview
Motherboard ASUS PRIME B650-PLUS WIFI ATX — AMD B650, Socket AM5, DDR5, 4 DIMM, 192 GB, Wi‑Fi 6E, 2.5Gb LAN
R3,422
Ex Tax:R2,976
Add to Cart Add to Wish List Compare this Product
Motherboard ASRock B850M Pro RS WiFi — AMD B850, Socket AM5, microATX, DDR5, 4 DIMM, 256GB, Wi‑Fi 6E, 2.5Gb LAN, 3x M.2
Quickview
Motherboard ASRock B850M Pro RS WiFi — AMD B850, Socket AM5, microATX, DDR5, 4 DIMM, 256GB, Wi‑Fi 6E, 2.5Gb LAN, 3x M.2
R3,085
Ex Tax:R2,683
Add to Cart Add to Wish List Compare this Product
Motherboard ASRock B860 Pro-A — Intel B860 ATX, LGA 1851, DDR5, 4x DIMM, 256GB, 2.5Gb LAN, 1x M.2, 4x SATA III
Quickview
Motherboard ASRock B860 Pro-A — Intel B860 ATX, LGA 1851, DDR5, 4x DIMM, 256GB, 2.5Gb LAN, 1x M.2, 4x SATA III
R2,760
Ex Tax:R2,400
Add to Cart Add to Wish List Compare this Product
ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX
Quickview
ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX
R2,918
Ex Tax:R2,537
Add to Cart Add to Wish List Compare this Product
MSI B850M GAMING PLUS WIFI6E motherboard AMD B850 Socket AM5 micro ATX
Quickview
MSI B850M GAMING PLUS WIFI6E motherboard AMD B850 Socket AM5 micro ATX
R3,535
Ex Tax:R3,074
Add to Cart Add to Wish List Compare this Product
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A

Key Highlights
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
  • AMD Socket AM4 AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
  • PC micro ATX AMD A520 Realtek ALC887 7.1 channels
  • DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
  • HDD & SSD M.2, PCI Express 3.0, SATA III RAID support Number of storage drives supported: 5
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • Gigabit Ethernet
Specifications
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC887
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Cables included
SATA
Chassis intrusion connector
Yes
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for
PC
Cooling type
Active
Country of origin
China
CPU fan connector
Yes
Depth
205 mm
Desktop Management Interface (DMI) version
2.7
Discrete graphics support
Yes
DVI-D ports quantity
1
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
64 GB
Maximum internal memory supported by processor
64 GB
Maximum number of SMP processors
1
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD A520
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of battery cells
1
Number of EATX power connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
5
Package depth
235 mm
Package height
52 mm
Package weight
740 g
Package width
265 mm
Parallel processing technology support
Not supported
PC health monitoring
CPU, Fan, LED, Power supply, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Power fan connector
Yes
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM4
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Serial port headers
1
Supported memory clock speed (max)
5100 MHz
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory module capacities
1GB, 8GB, 16GB
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Total number of SATA connectors
4
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB connector type
USB Type-A
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64

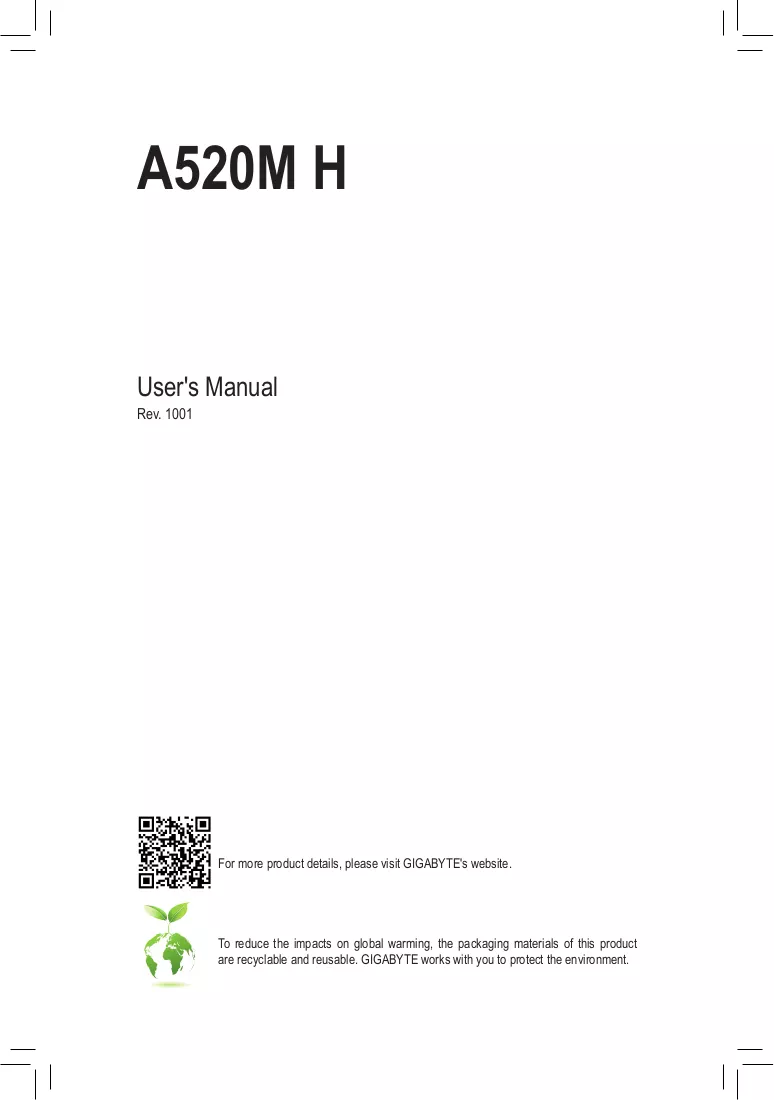

Manual

Open Manual

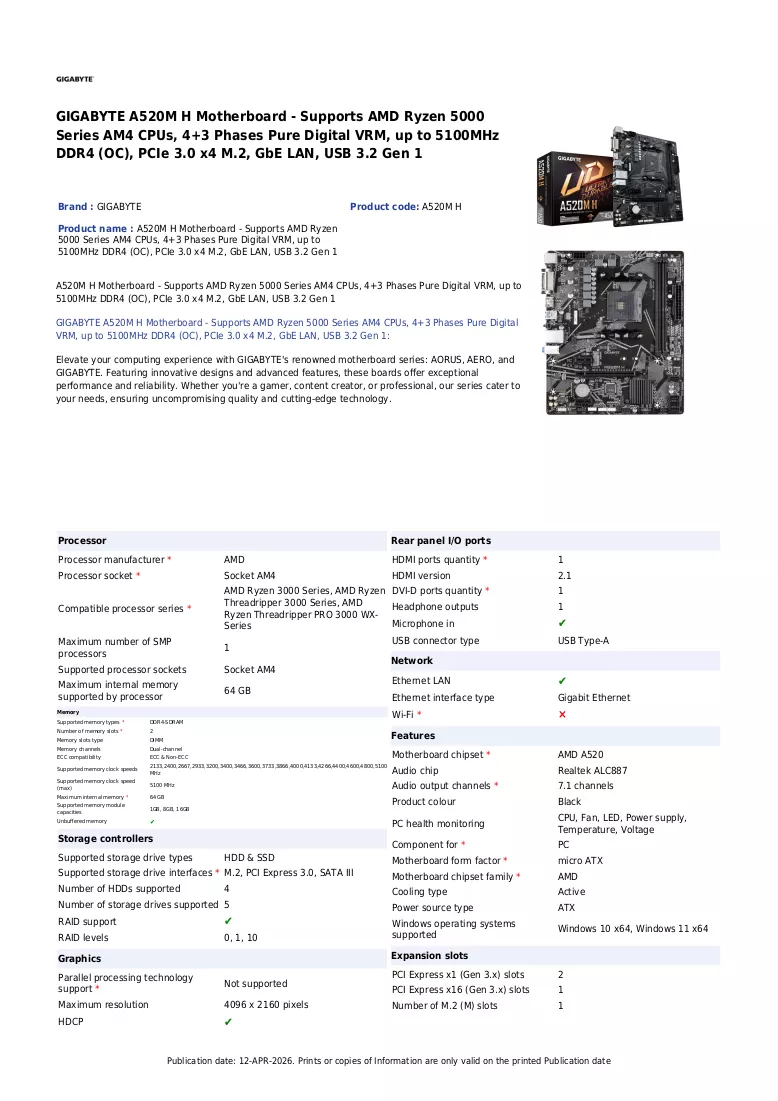

Leaflet

Open Leaflet
