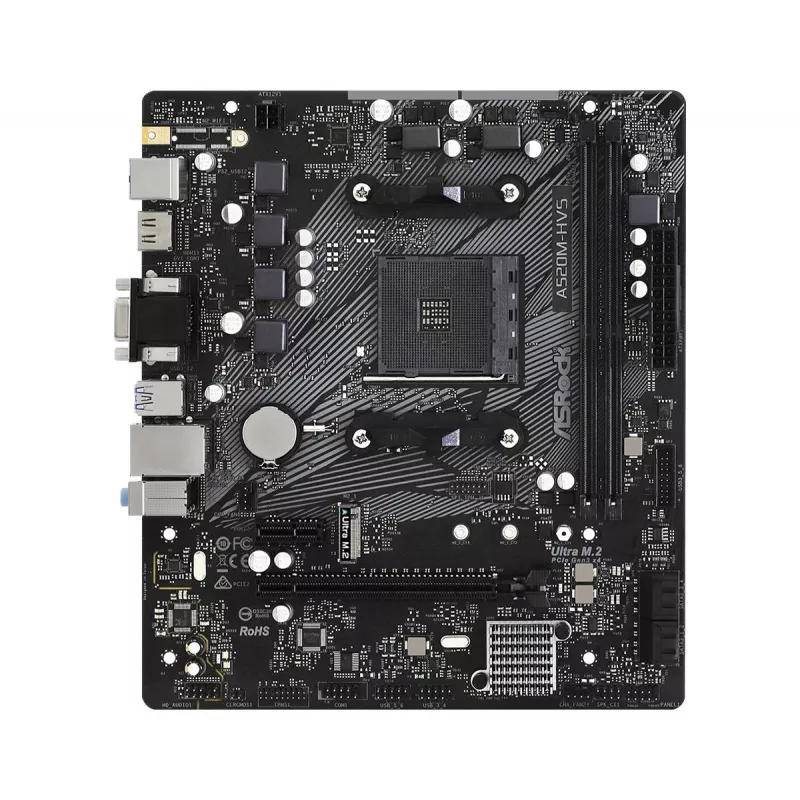

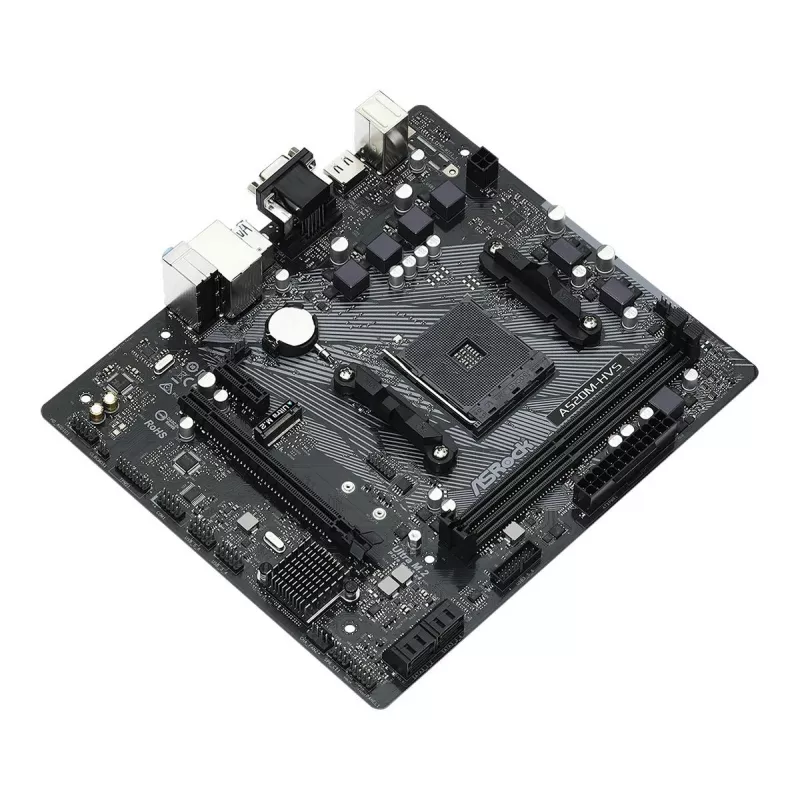

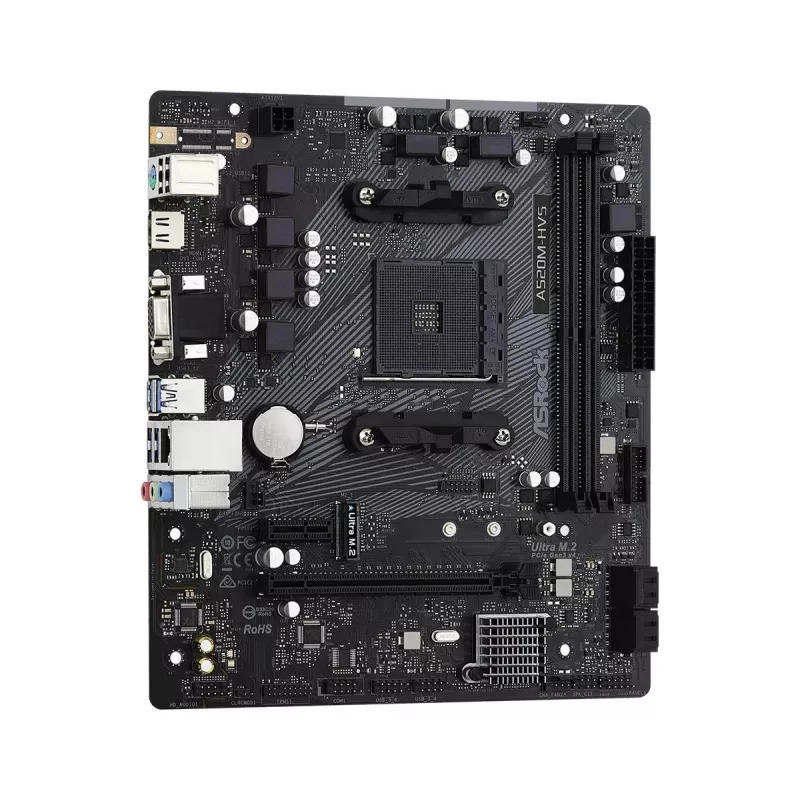

ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX

ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
ASRock Motherboard A520M-HVS AM4 AMD A520 2 X DDR4 USB 3.2 SATA 3 7.1ch HD Audio mATX
R1,920
The ASRock A520M-HVS is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors. It supports AMD Ryzen 3000 Series CPUs and features dual-channel DDR4 memory architecture, delivering reliable performance for everyday computing and multimedia tasks.Key features Socke... Read More
Stock 70 Code 132996 Brand ASROCK Model A520M-HVS Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock A520M-HVS is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors. It supports AMD Ryzen 3000 Series CPUs and features dual-channel DDR4 memory architecture, delivering reliable performance for everyday computing and multimedia tasks.

Key features

  • Socket AM4 compatible with AMD Ryzen 3000 Series processors
  • 2 x DDR4 DIMM slots supporting up to 64 GB of memory with overclocking frequencies up to 4733 MHz
  • 1 x PCIe 3.0 x16 slot and 1 x PCIe 3.0 x1 slot for expansion cards
  • 4 x SATA III ports and 1 x M.2 socket for storage connectivity
  • Integrated Realtek RTL8111H Gigabit Ethernet LAN
  • 7.1-channel HD Audio with 8-channel support

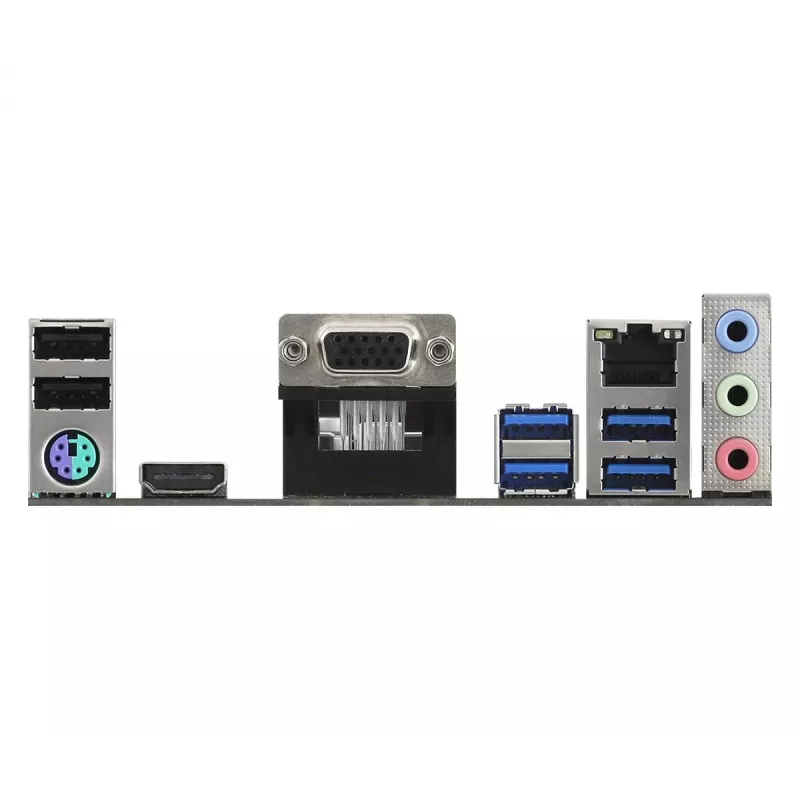

  • Rear panel connectors: 1 x PS/2, 1 x HDMI, 1 x RJ45, 2 x USB, 4 x USB 3.2 Gen1, and audio jacks
Key Highlights
  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS type
UEFI AMI
Cables included
SATA
Compatible processor series
AMD Ryzen 3000 Series
Component for
PC
CPU fan connector
Yes
Depth
201 mm
Drivers included
Yes
ECC ?ompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Graphics card
Radeon Vega
Graphics card family
AMD
Harmonized System (HS) code
84733020
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD A520
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of COM connectors
1
Number of HDDs supported
5
Number of memory slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
Supported memory clock speeds
2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Wi-Fi
No
Width
230 mm
