R1,307

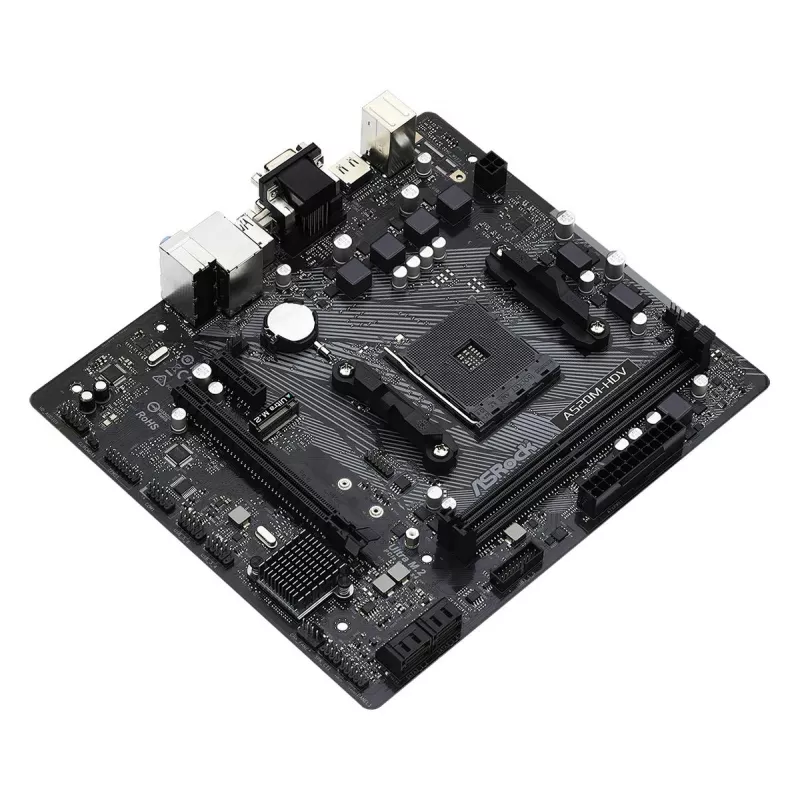

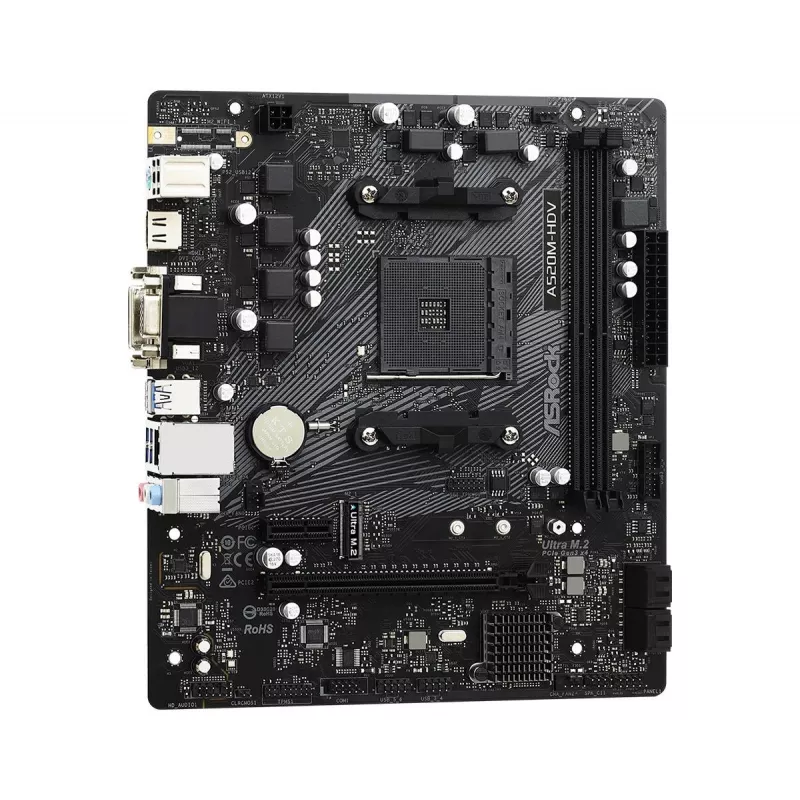

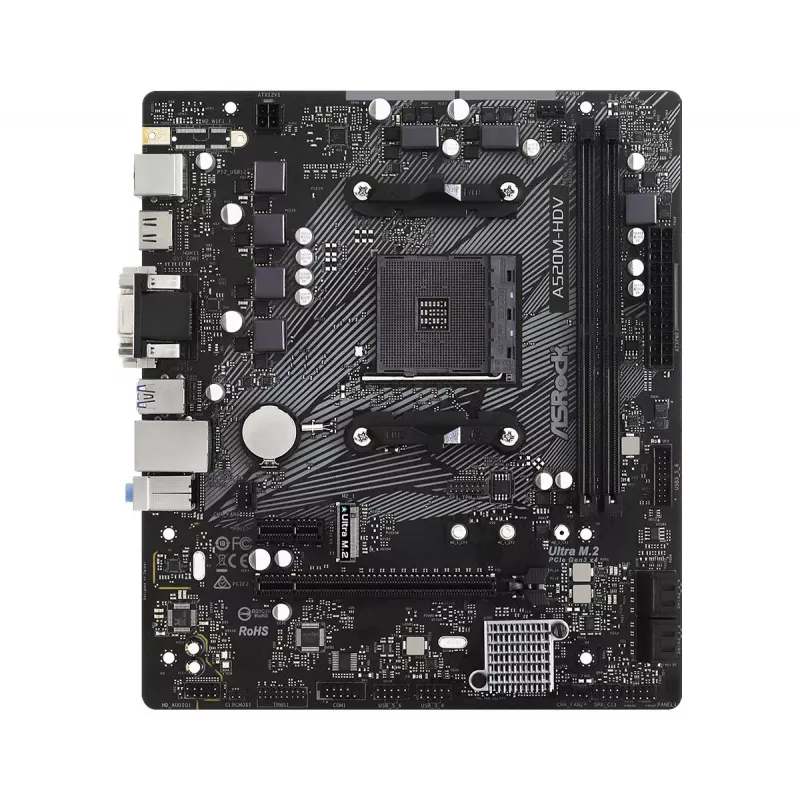

The ASRock A520M-HDV is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors. It supports AMD Ryzen CPUs and features dual-channel DDR4 memory with overclocking support up to 4733 MHz. This board delivers reliable performance for everyday computing and light gami... Read More
Stock 9 Code 10426 Brand ASROCK Model A520M-HDV Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock A520M-HDV is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors. It supports AMD Ryzen CPUs and features dual-channel DDR4 memory with overclocking support up to 4733 MHz. This board delivers reliable performance for everyday computing and light gaming, with integrated 7.1-channel HD audio and Gigabit LAN connectivity.

Key features

  • Socket AM4 compatible with AMD Ryzen 3000 series processors
  • 2 x DDR4 DIMM slots supporting up to 64 GB of memory with frequencies from 2133 MHz to 4733 MHz (OC)
  • 1 x PCIe 3.0 x16 slot for graphics cards and 1 x PCIe 3.0 x1 slot for expansion
  • 4 x SATA III ports and 1 x M.2 socket for high-speed storage

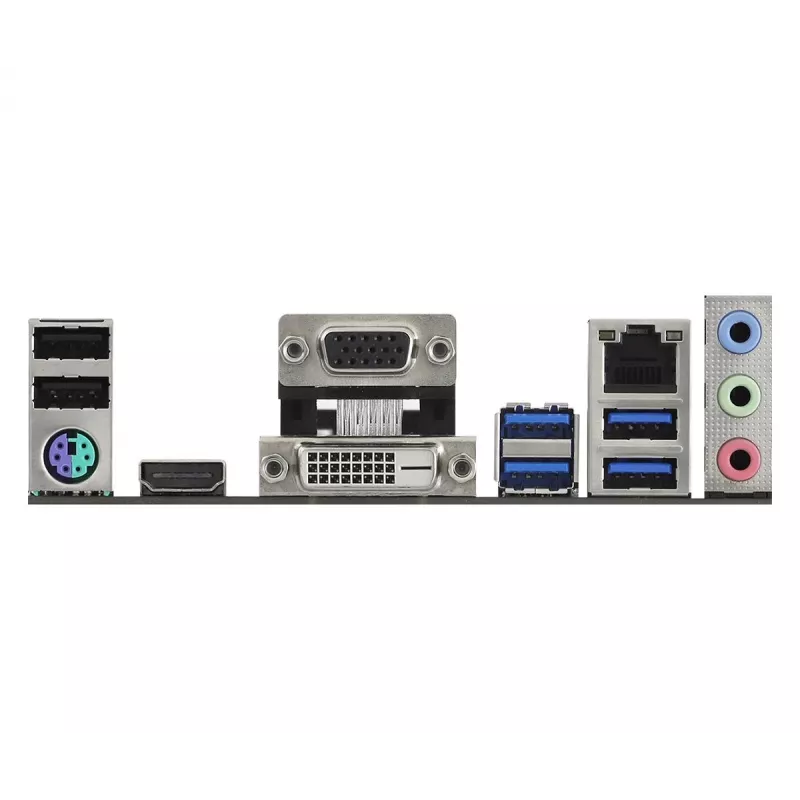

  • Rear panel connectors: 1 x PS/2, 1 x HDMI, 1 x VGA, 1 x DVI-D, 4 x USB 3.2 Gen1, 2 x USB, 1 x RJ45 Gigabit LAN, and audio jacks
  • Integrated Realtek RTL8111H Gigabit LAN and 7.1-channel HD Audio
  • Micro ATX form factor (201 mm x 230 mm) for compact builds
Key Highlights
  • Compact home or office desktops
  • Entry-level gaming or multimedia PCs using Ryzen APUs with integrated graphics
  • Small form-factor builds requiring Micro ATX motherboards
  • Form factor: Micro ATX
  • Socket: AM4 (supports AMD Ryzen 3000 series — verify CPU support list)
  • Memory: 2 × DDR4 DIMM slots, up to 64 GB
  • Storage: Ultra M.2 (PCIe Gen3 x4 & SATA3) and SATA III ports
  • Expansion: 1 × PCIe x16 (Gen3), 1 × PCIe x1 (Gen3)
  • Video outputs: D-Sub, DVI-D, HDMI (HDMI supports 4K@60Hz with compatible CPU)
  • LAN: Gigabit Ethernet (Realtek RTL8111H)
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS type
UEFI AMI
Component for
PC
CPU fan connector
Yes
Depth
201 mm
DVI-D ports quantity
0
ECC сompatibility
non-ECC
eSATA ports quantity
0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Firewire (IEEE 1394) ports
0
Front panel audio connector
Yes
Graphics card
Radeon Vega
Graphics card family
AMD
Harmonized System (HS) code
84733020
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of chassis fan connectors
2
Number of COM connectors
1
Number of HDDs supported
5
Number of memory slots
2
Number of Parallel ATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
0
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
Supported memory clock speeds
4466, 4533, 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4500
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III, M.2
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Wi-Fi
No
Width
230 mm
