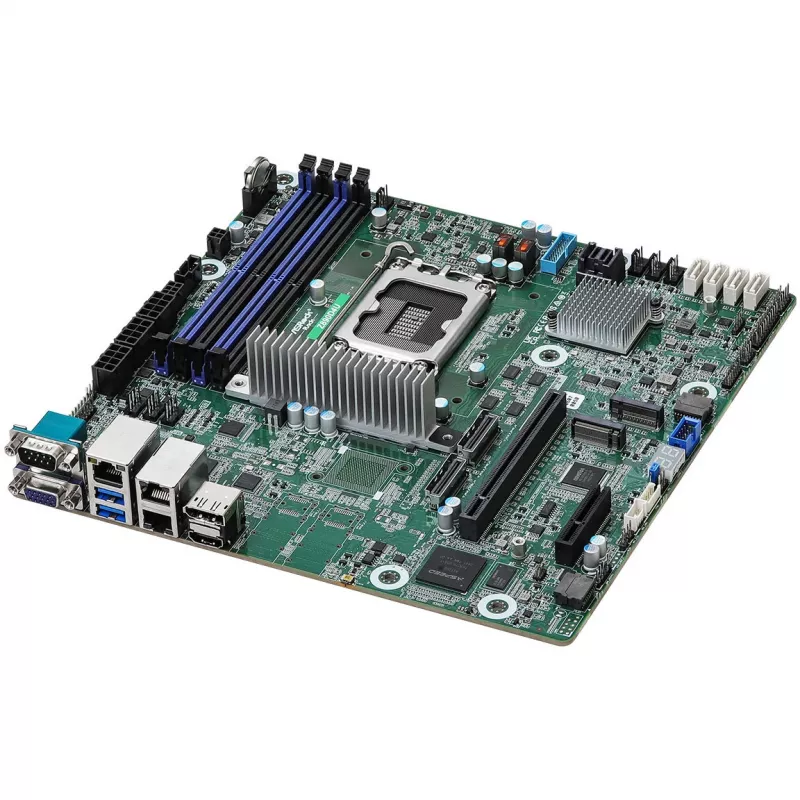

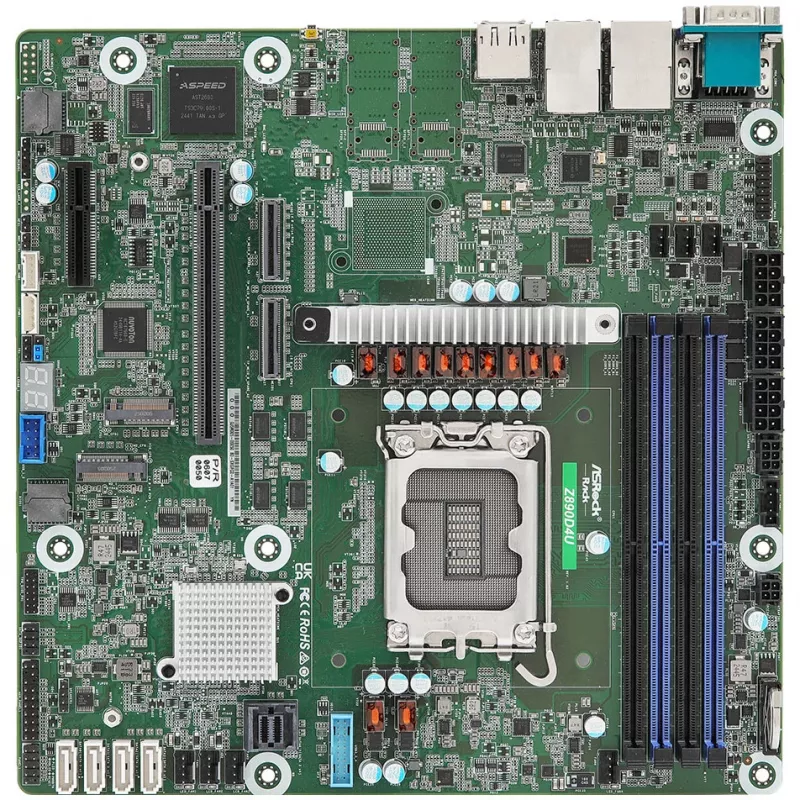

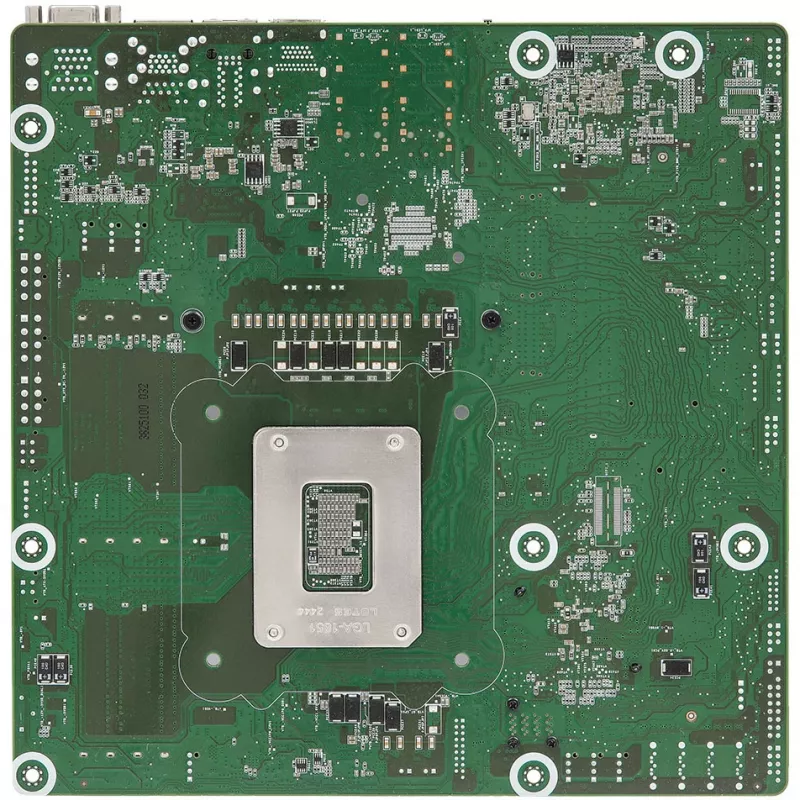

Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX

Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
Motherboard ASRock Z890D4U Intel Z890 LGA 1851 (Socket V1) micro ATX
R9,230
The ASRock Z890D4U is a micro ATX motherboard built for Intel Core Ultra (Series 2) processors, featuring the LGA 1851 (Socket V1) socket and the Intel Z890 chipset. It supports DDR5-SDRAM memory and includes integrated graphics via the ASPEED AST2600 controller, making it suitable for professional ... Read More
Stock 3 Code 1512674 Brand ASROCK Model Z890D4U Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock Z890D4U is a micro ATX motherboard built for Intel Core Ultra (Series 2) processors, featuring the LGA 1851 (Socket V1) socket and the Intel Z890 chipset. It supports DDR5-SDRAM memory and includes integrated graphics via the ASPEED AST2600 controller, making it suitable for professional and workstation builds.

Key features

  • Intel Z890 chipset with LGA 1851 (Socket V1) socket, compatible with Intel Core Ultra (Series 2) processors
  • Supports up to 64 GB of DDR5-SDRAM memory via DIMM slots
  • Integrated ASPEED AST2600 graphics controller for display output
  • Storage connectivity with SATA III interfaces and RAID support for levels 0, 1, 5, and 10
  • Gigabit Ethernet networking via Intel I210 LAN controller
  • Micro ATX form factor for compact system builds
Key Highlights
  • Small servers and edge computing appliances
  • Compact workstations that require Intel Core Ultra (Series 2) CPUs
  • Networked storage solutions with multiple SATA and M.2 drives
  • Remote-managed systems and lab/test benches using IPMI
  • Form factor: Micro ATX (9.6" x 9.6")
  • Chipset: Intel Z890
  • CPU socket: LGA 1851 (Socket V1) — Intel Core Ultra (Series 2) support
  • Memory: 4 DIMM slots, DDR5 non‑ECC UDIMM/CUDIMM, up to 64 GB
  • PCIe: 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x4, MCIO lanes (PCIe5.0 x8 or 2× PCIe5.0 x4) and additional MCIO (2× PCIe4.0 x4)
  • Storage: 2 × M.2 (PCIe4.0 x4), 8 × SATA 6Gb/s (SATA III RAID support)
  • Networking: 2 × RJ45 Gigabit Ethernet (Intel I210)
  • Management: ASPEED AST2600, IPMI remote management

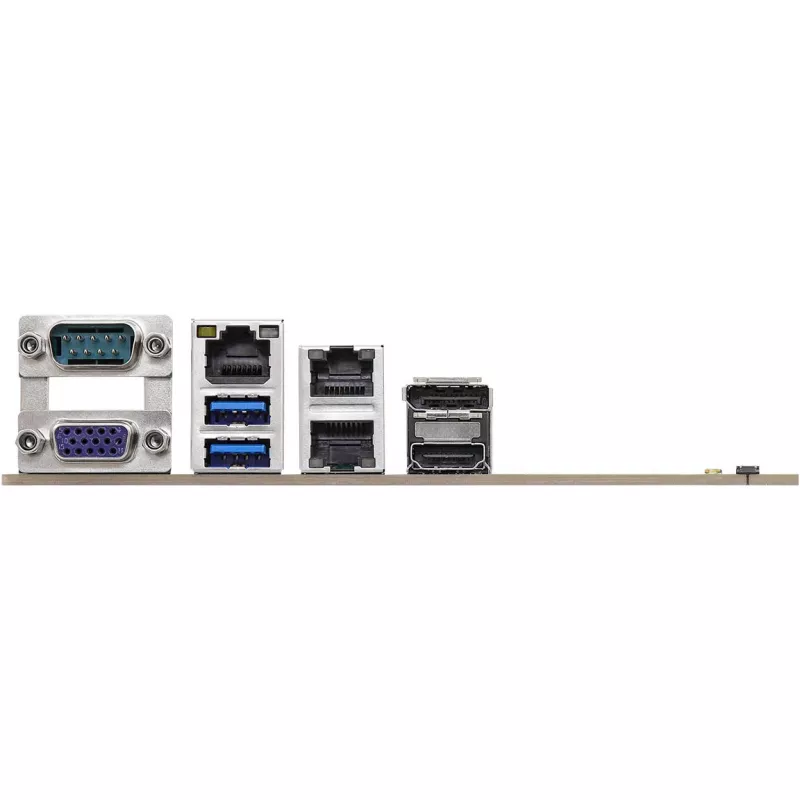

  • Video outputs: 1 × HDMI, 1 × DisplayPort
  • BIOS: AMI 256 Mbit, ACPI version 6.4
Specifications
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
ATX Power connector (24-pin)
Yes
BIOS memory size
256 Mbit
BIOS type
AMI
Component for
Server
Depth
243.84 mm
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
non-ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card
AST2600
Graphics card family
Aspeed
HDMI ports quantity
1
IPMI LAN (RJ-45) port
Yes
LAN controller
Intel I210
Maximum internal memory
64 GB
Memory slot pin count
288
Memory slots type
DIMM
Memory voltage
1.1
Motherboard chipset
Intel Z890
Motherboard chipset family
Intel
Motherboard form factor
Micro ATX
Number of memory slots
4
Number of SATA III connectors
8
On-board graphics card
Yes
Operating relative humidity (H-H)
20 - 90
Operating temperature (T-T)
10 - 35
PCI Express x16 (Gen 5.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
RAID levels
1, 5, 10
RAID support
Yes
Serial ports quantity
1
Storage temperature (T-T)
-40 - 70
Supported memory clock speeds
4800, 4400, 5600
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
SATA III
System Management BIOS (SMBIOS) version
2.3
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Wi-Fi
No
Width
243.84 mm
