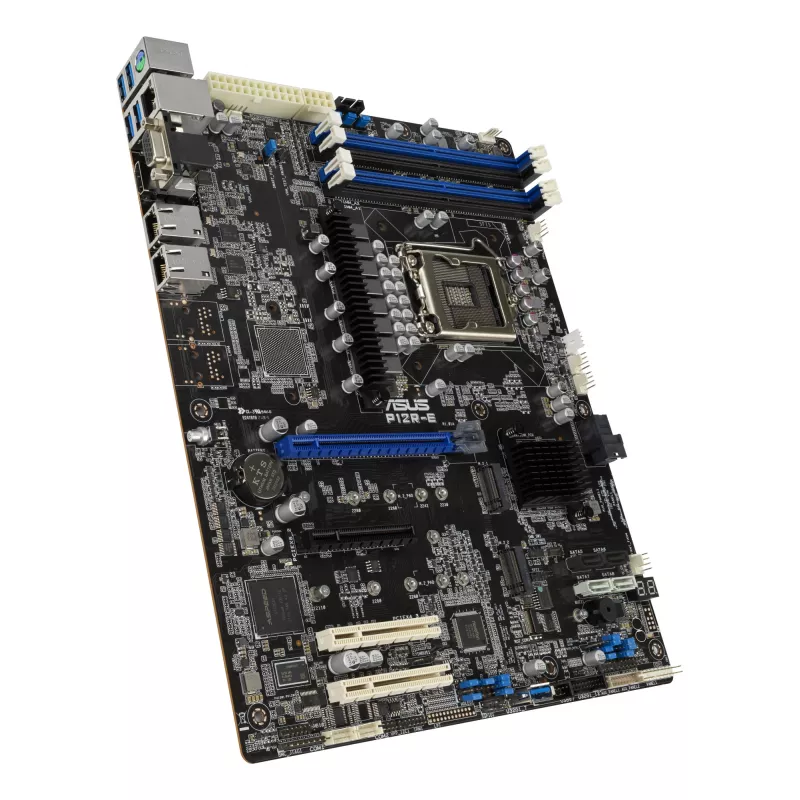

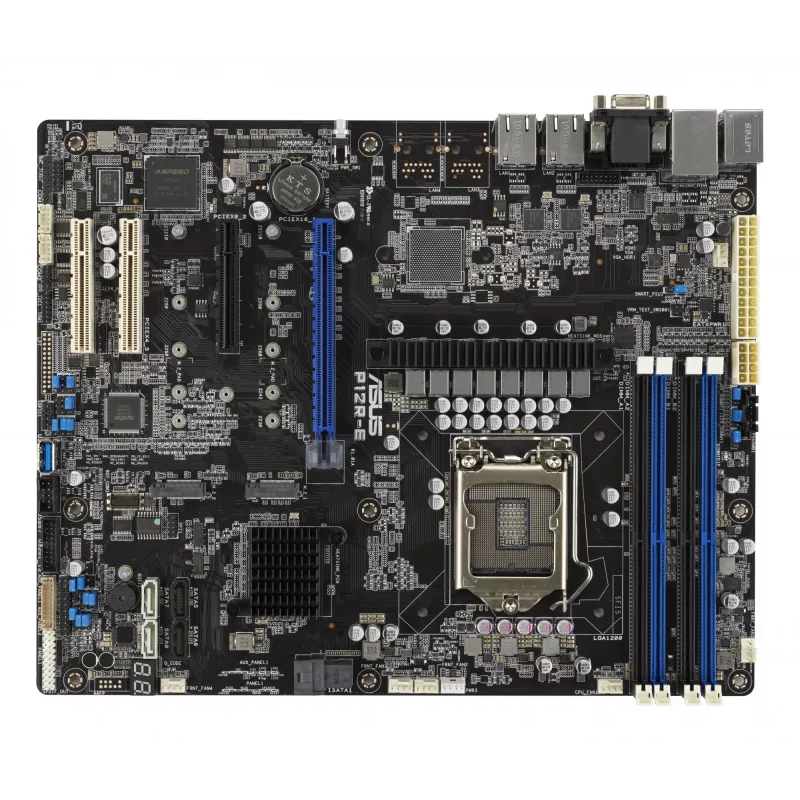

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
36 mo.
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
R7,413
PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networ... Read More
Stock 1 Code 119748 Brand ASUS Model 90SB0A90-M0UAY0 Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

ASUS P12R-E. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: ASPEED, On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: Gigabit Ethernet

Key Highlights
  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • Intel LGA 1200 (Socket H5) Intel® Pentium®, Intel Xeon E
  • Server ATX Intel C256
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
  • ASPEED
  • Gigabit Ethernet
Specifications
ATX Power connector (24-pin)
Yes
Chassis intrusion connector
Yes
Compatible processor series
Intel® Pentium®, Intel Xeon E
Component for
Server
Depth
244 mm
DVI-D ports quantity
0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card family
ASPEED
Harmonized System (HS) code
84733020
HDMI ports quantity
1
Height
68 mm
Maximum internal memory
128 GB
Memory slots type
DIMM
Motherboard chipset
Intel C256
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of COM connectors
1
Number of HDDs supported
8
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA III connectors
8
Number of storage drives supported
10
On-board graphics card
Yes
On-board graphics card memory
64 MB
On-board graphics card model
Aspeed AST2600
Operating temperature (T-T)
10 - 50 °C
Package depth
281 mm
Package height
78 mm
Package weight
1.5 kg
Package width
341 mm
PC health monitoring
CPU, Fan
PCI Express x16 (Gen 4.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
PCI Express x8 (Gen 4.x) slots
1
Power fan connector
Yes
Processor manufacturer
Intel
Processor socket
LGA 1200 (Socket H5)
PS/2 ports quantity
1
RAID support
Yes
Storage relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-40 - 70 °C
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2666,2933,3200 MHz
Supported memory module capacities
8GB, 16GB, 32GB
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
TPM connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Weight
800 g
Wi-Fi
No
Width
305 mm

Leaflet

Open Leaflet

Manual

Open Manual
