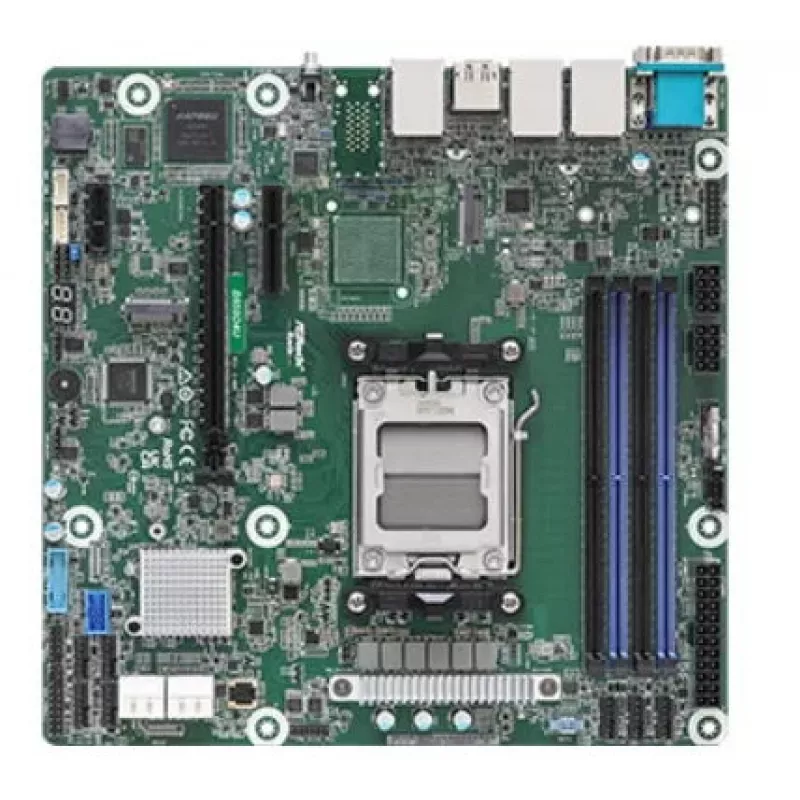

Motherboard ASRock B650D4U micro ATX Server AMD B650 Express Socket AM5 DDR5, 4x DIMM, 32GB, 2x LAN, IPMI, 4x SATA III, M.2

The Asrock B650D4U AMD B650 Express Socket AM5 micro ATX motherboard is built for AMD Socket AM5 processors, optimized for Ryzen 3 and Ryzen 5 series. It supports DDR5-SDRAM memory across four DIMM slots with a total maximum capacity of 32 GB. The board provides M.2 and SATA III storage interfaces and supports RAID levels 0, 1 and 10. Integrated Aspeed AST2600 graphics functions add basic server-oriented display and management capabilities within a compact micro ATX form factor suitable for server deployments.

Advantages

This motherboard combines AM5 compatibility with an AMD B650 Express chipset tailored for server use. Four memory slots with DDR5 support allow higher memory bandwidth within the 32 GB capacity limit. Multiple storage interfaces including M.2 and SATA III enable flexible drive configurations and RAID 0/1/10 support for performance or redundancy. The onboard Aspeed AST2600 provides integrated graphics and remote management features that are useful in server environments while the micro ATX form factor makes the board suitable for space-constrained chassis.

Suitable for

• Compact server builds and rackmount nodes where micro ATX is required
• Home lab servers and small business file or application servers
• Systems that require RAID 0/1/10 for storage performance or redundancy
• Setups needing basic onboard graphics and management via Aspeed AST2600

Key specifications

• Form factor: Micro ATX
• Chipset: AMD B650 Express
• Processor socket: Socket AM5 (supports compatible AMD Ryzen processors)
• Memory type: DDR5-SDRAM
• Number of memory slots: 4 DIMM slots
• Maximum internal memory: 32 GB
• Storage interfaces: M.2 and SATA III
• Supported RAID levels: 0, 1, 10
• Onboard graphics/management: Aspeed AST2600

How to use

Install an AM5-compatible Ryzen 3 or Ryzen 5 processor into the Socket AM5 following standard CPU installation procedures and apply the appropriate cooling solution. Populate DDR5 DIMM slots up to the supported 32 GB capacity, observing slot population rules from the motherboard manual for optimal channel configuration. Connect M.2 and SATA III storage devices as required, and configure RAID arrays 0, 1 or 10 in the BIOS/UEFI or a RAID utility if multiple drives are present. Use the onboard Aspeed AST2600 for basic console output and remote management where supported by your chassis or network setup.

Recommendations

For server stability, use quality ECC-capable modules if supported by your processor and environment, ensure adequate cooling for sustained loads, and keep firmware and management firmware for the Aspeed controller up to date. Match storage drives of similar capacity and performance when creating RAID arrays to maintain predictable behavior.
