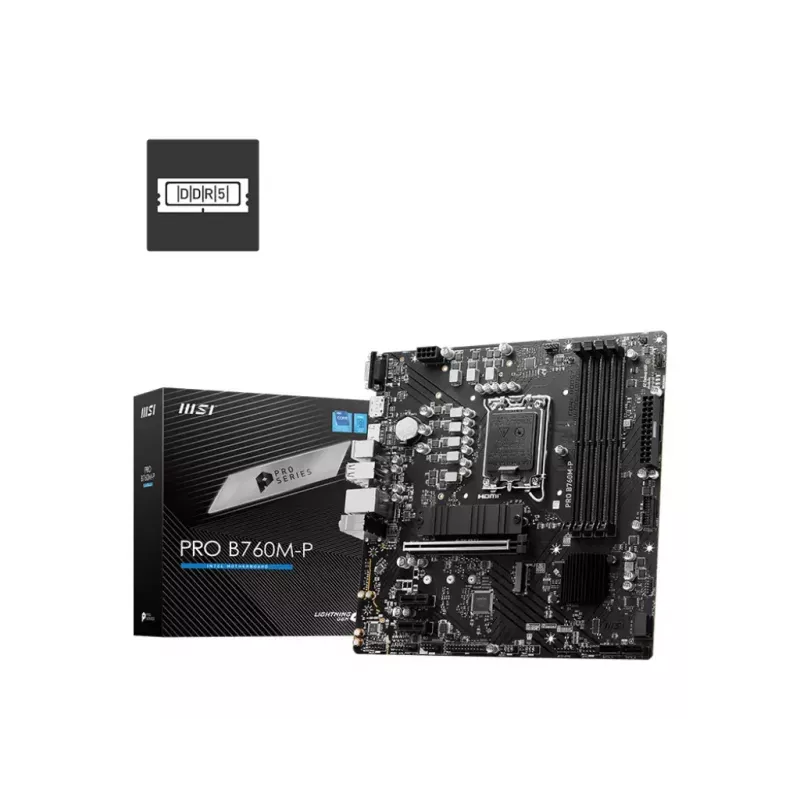

Motherboard MSI PRO B760M-P micro ATX, Intel B760, LGA 1700, 4× DDR5 slots, 192 GB, SATA III, PCIe 4.0

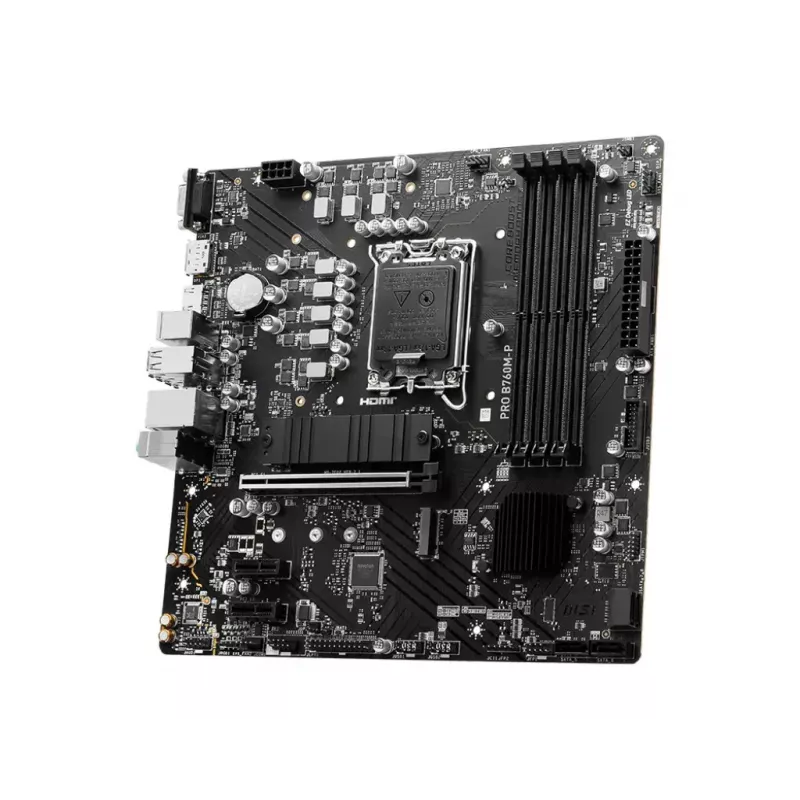

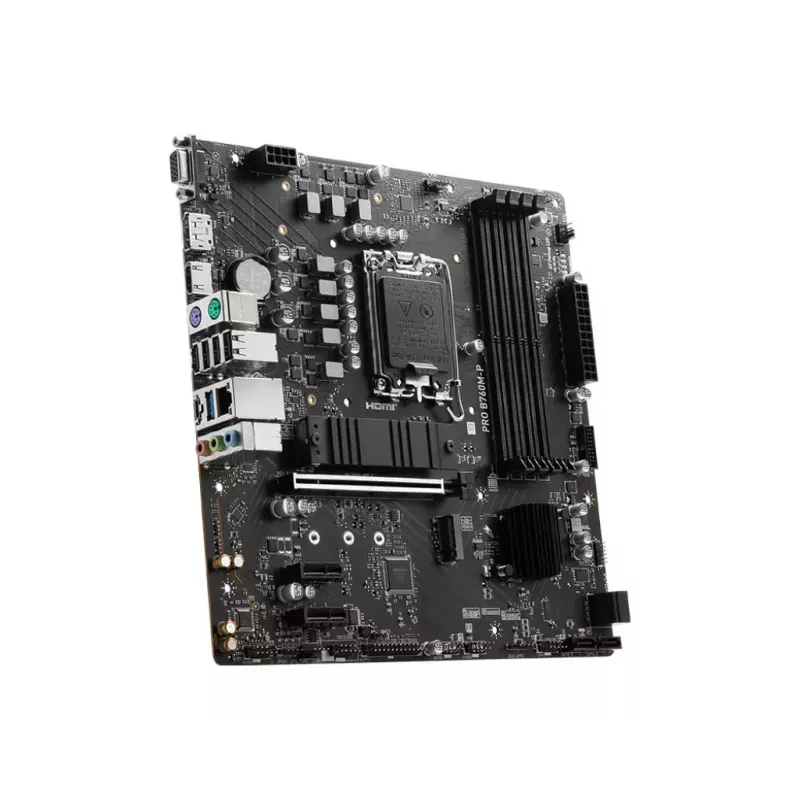

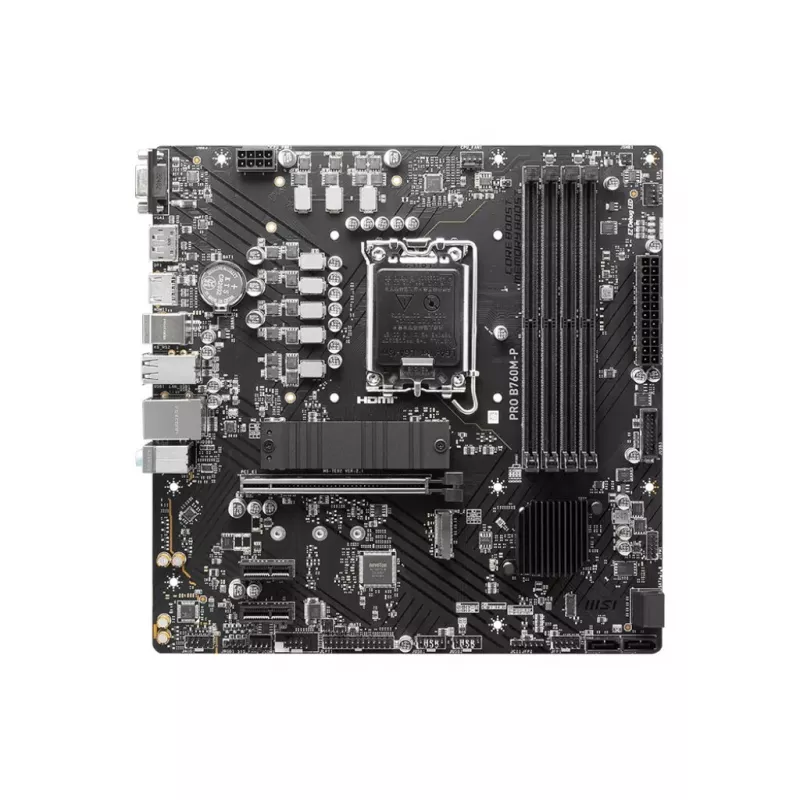

The MSI PRO B760M-P is a micro ATX motherboard for Intel LGA 1700 processors, compatible with Celeron, Pentium Gold and other 12th/13th/14th generation Intel CPUs. It supports DDR5 memory up to 192 GB across four slots, offers SATA III ports with RAID 0/1/5/10 support, Gigabit Ethernet via Realtek RTL8111H, and reinforced PCIe connections for heavier graphics cards. The board includes enhanced thermal solutions such as M.2 Shield Frozr and a chipset heatsink, and provides Lightning Gen 4 PCIe bandwidth for high-speed expansion.

Advantages

The PRO B760M-P combines MSI Core Boost power design for stable CPU current delivery with support for DDR5 memory and SMT-welded DIMM slots to maximize memory performance. Its strengthened M.2 thermal solution and chipset heatsink help maintain component reliability and performance. Reinforced soldered PCIe connections and Lightning Gen 4 x16 support ensure improved expansion capability and data throughput. MSI Center and automatic driver utility simplify BIOS, driver and utility management for DIY builders.

Suitable for

• Compact desktop builds using micro ATX chassis
• Office and business PCs requiring stable networking and storage
• Systems needing DDR5 memory performance and expandability
• Users who assemble or upgrade PCs and prefer DIY-friendly driver tools

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• Socket: LGA 1700
• Memory: DDR5, 4 slots, up to 192 GB, non-ECC
• Storage: SATA III ports, M.2 with M.2 Shield Frozr
• PCIe: Lightning Gen 4 x16 (backward compatible)
• LAN: Gigabit Ethernet, Realtek RTL8111H
• RAID: 0, 1, 5, 10

How to use

Install the motherboard into a compatible micro ATX chassis and mount an LGA 1700 CPU according to Intel socket instructions. Insert DDR5 memory modules in the recommended slot order, attach storage devices to SATA III ports or the M.2 slot (observe M.2 Shield Frozr placement), and connect power, front panel and rear I/O cables. Use MSI Center and the Driver Utility Installer after first network connection to download and install the latest drivers and utilities. Configure RAID in the BIOS if required and verify cooling and fan connections before first boot.

Recommendations

For best stability, use matched DDR5 memory modules and follow MSI’s slot population guide. When installing high-performance M.2 SSDs or heavy graphics cards, ensure heatsinks are properly seated and additional case airflow is provided.
