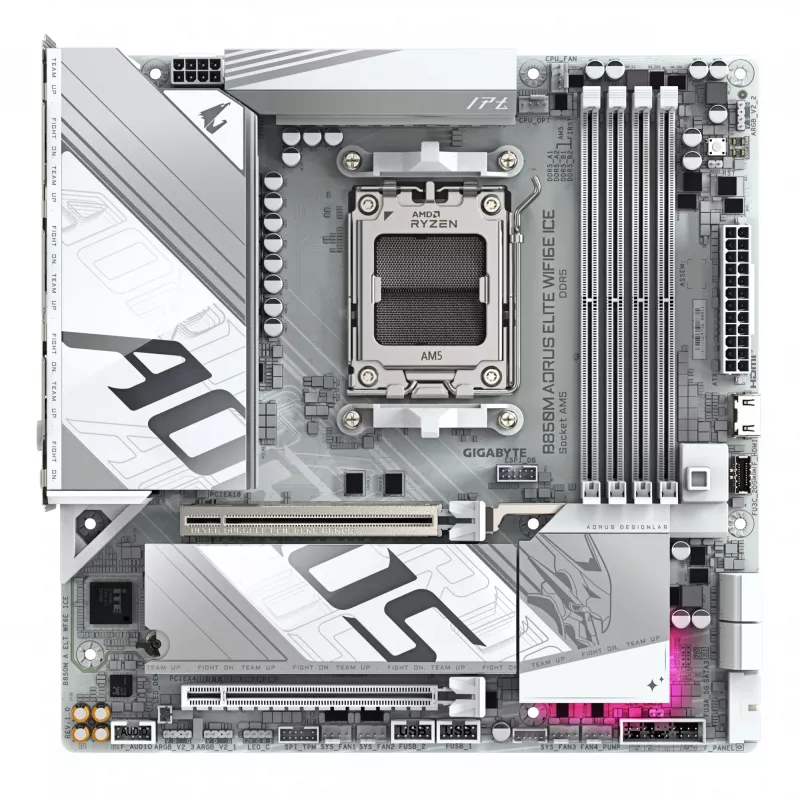

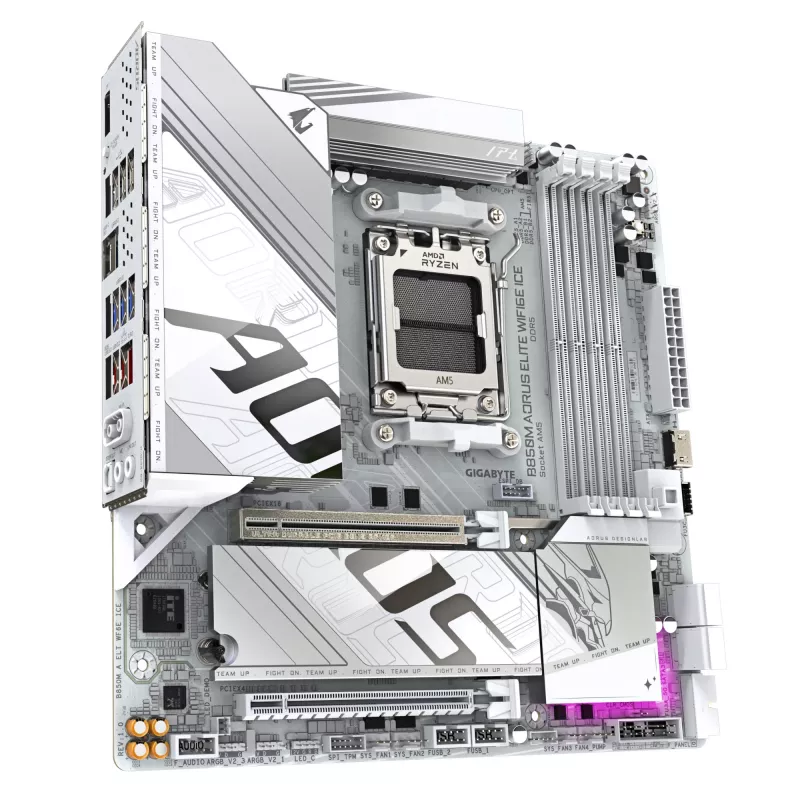

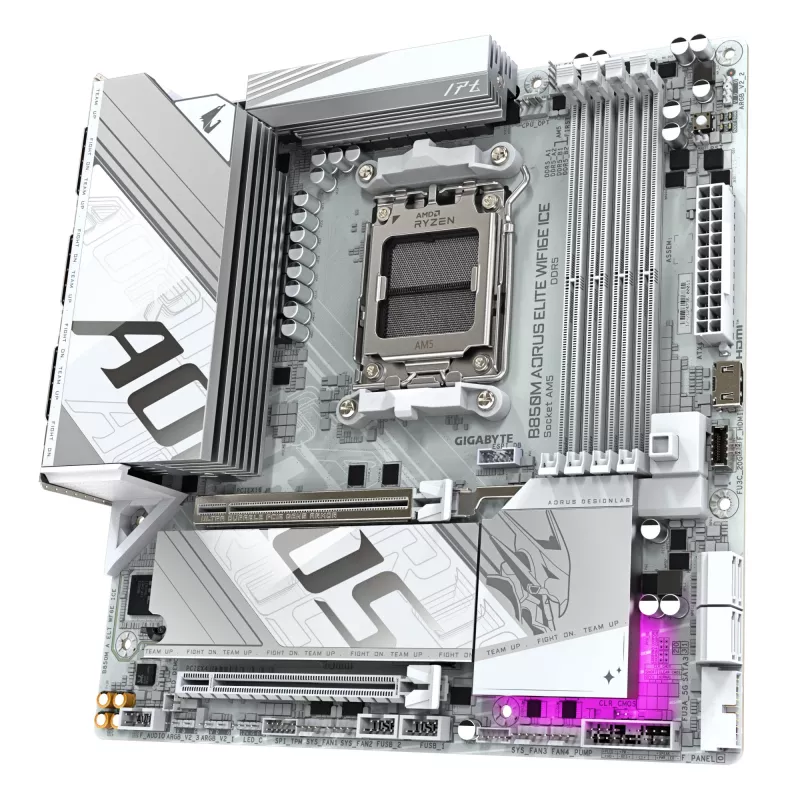

Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX

Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
36 mo.
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
Motherboard GIGABYTE B850M AORUS ELITE WIFI6E, AMD B850, Socket AM5, Micro ATX
R4,048
The GIGABYTE B850M AORUS ELITE WIFI6E is a Micro ATX motherboard for Socket AM5 that supports AMD Ryzen 7000, 8000 and 9000 series processors. It offers a 12+2+1 phases digital VRM, DDR5 memory support up to 8200 MHz (OC) across four memory slots with a maximum capacity of 256 GB, one PCIe x16 slot,... Read More
Stock 100 Code 30199 Brand GIGABYTE Model B850M A ELT WF6E ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B850M AORUS ELITE WIFI6E is a Micro ATX motherboard for Socket AM5 that supports AMD Ryzen 7000, 8000 and 9000 series processors. It offers a 12+2+1 phases digital VRM, DDR5 memory support up to 8200 MHz (OC) across four memory slots with a maximum capacity of 256 GB, one PCIe x16 slot, dual M.2 slots (one PCIe 5.0 and one PCIe 4.0), integrated 2.5 Gigabit Ethernet and Wi‑Fi 6E connectivity for high-performance gaming and productivity systems.

Advantages

The motherboard combines a robust power delivery design with modern connectivity options, including PCIe 5.0 M.2 storage and Wi‑Fi 6E, to support demanding CPUs and fast DDR5 memory. Its Micro ATX form factor balances compact size and expandability while integrated networking (2.5 GbE and Wi‑Fi 6E) and multiple M.2 slots simplify building a responsive system.

Suitable for

  • High-performance gaming PCs
  • Content creation and multimedia workstations
  • Compact yet expandable home or office desktops

Key specifications

  • Chipset: AMD B850
  • Socket: AM5 (supports Ryzen 7000/8000/9000 series)
  • Form factor: Micro ATX
  • Memory: DDR5, 4 slots, up to 256 GB, up to 8200 MHz (OC)
  • Power delivery: 12+2+1 phases digital VRM
  • Expansion: 1 × PCIe x16 slot
  • Storage: 2 × M.2 (1 × PCIe 5.0, 1 × PCIe 4.0)
  • Networking: 2.5 Gigabit Ethernet, Wi‑Fi 6E
  • Weight: 1.77 kg

How to use

Install a compatible Socket AM5 CPU, populate DDR5 modules across the four memory slots according to the motherboard manual to enable dual‑channel operation, and connect storage devices to the M.2 slots or available SATA ports. Use the PCIe x16 slot for a discrete graphics card if required. Configure BIOS settings for memory XMP/OC profiles and storage boot order, then install your operating system and drivers for network and chipset components.

Recommendations

For stable overclocking and maximum memory performance, ensure adequate CPU cooling and use a high-quality power supply. Follow the motherboard manual for proper memory slot population and M.2 thermal pad placement to maintain temperatures within recommended limits.
Key Highlights
  • Twin 12+2+1 Phases Digital VRM with DrMOS
  • Dual Channel DDR5:4*DIMMs
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus, Fully Covered MOSFET Heatsinks
  • Wi-Fi 6E with WIFI EZ-Plug & Directional Antenna
  • 2.5GbE LAN, Q-Flash Plus
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD B850 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
1.4
Headphone outputs
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
6
Number of water pump connectors
2
On-board graphics card
No
Package depth
268 mm
Package height
68 mm
Package weight
1.97 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.77 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8852CE

Manual

Open Manual

Leaflet

Open Leaflet
