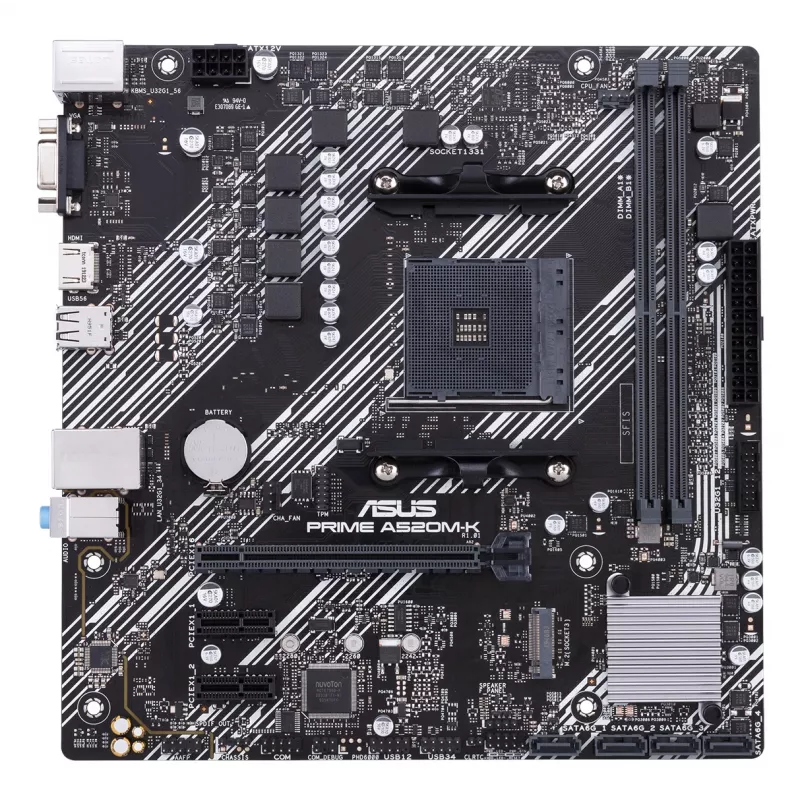

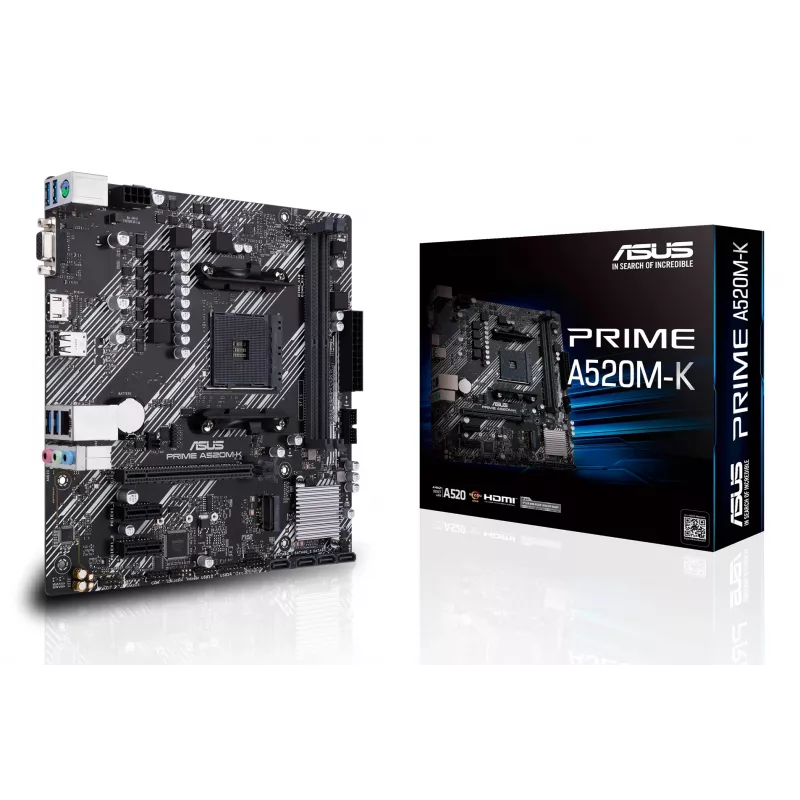

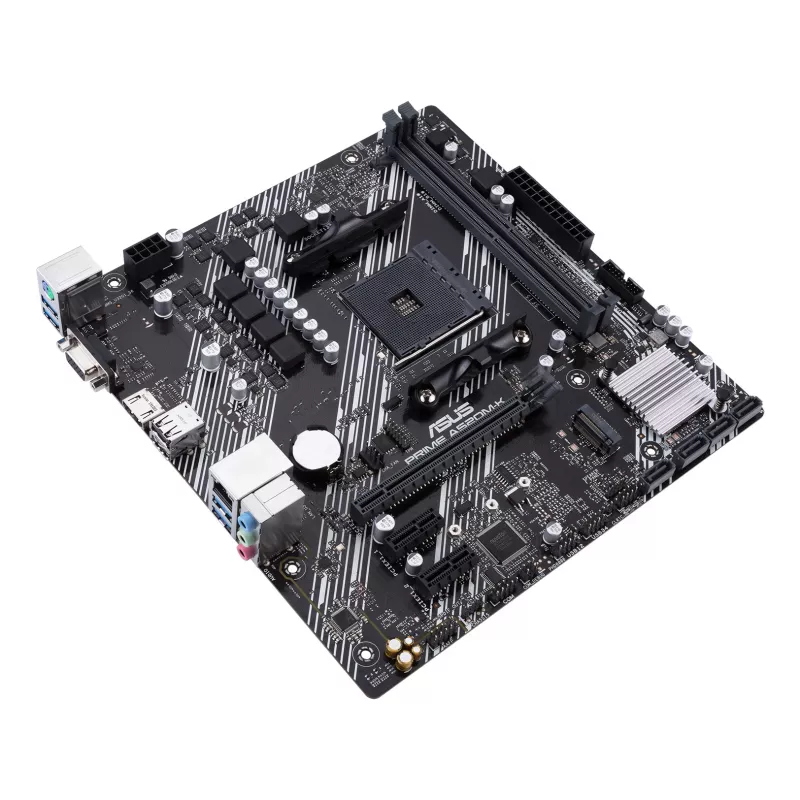

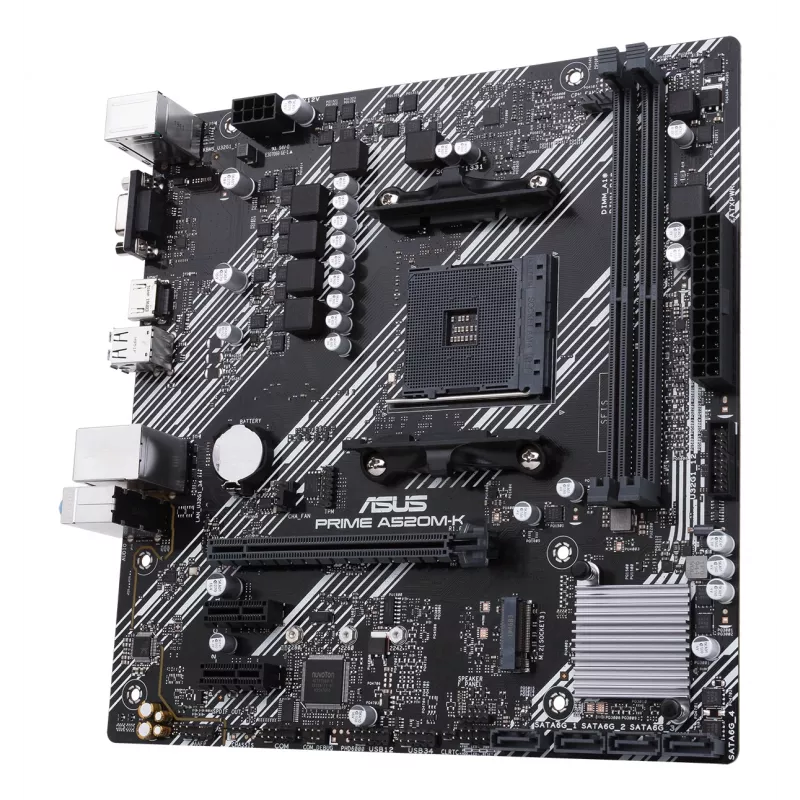

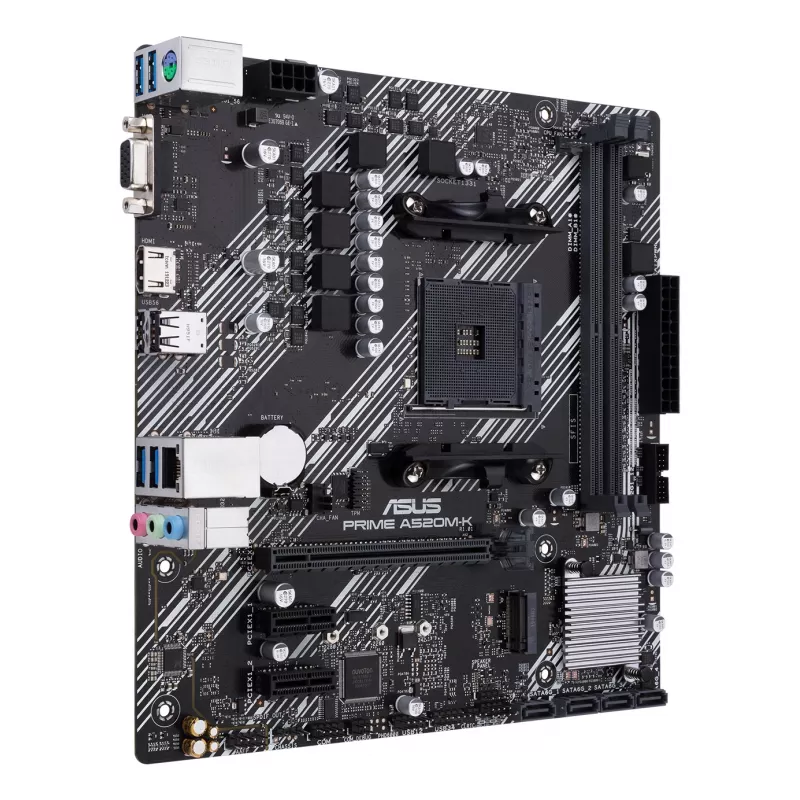

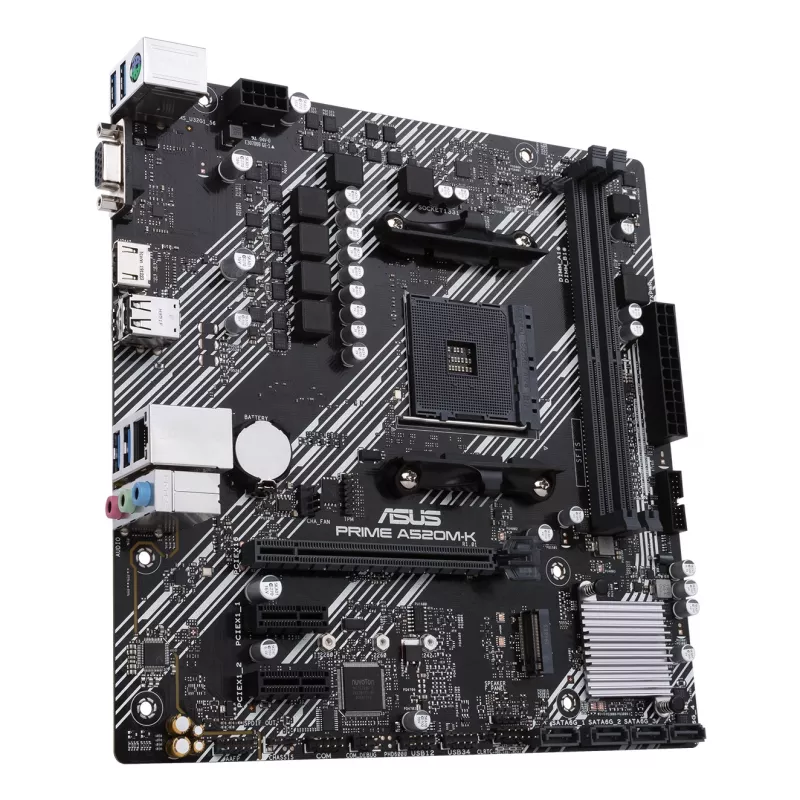

Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1

Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
36 mo.
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
Motherboard ASUS PRIME A520M-K, AMD A520 chipset, Socket AM4, micro ATX, 2x DDR4, 64 GB, 1x M.2, 4x SATA III, HDMI 2.1
R1,454
The ASUS PRIME A520M-K is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 to support AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. It offers a robust power design, comprehensive cooling, and intelligent tuning options, making it an ideal fou... Read More
Stock 87 Code 118005 Brand ASUS Model 90MB1500-M0EAY0 Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASUS PRIME A520M-K is a micro ATX motherboard built on the AMD A520 chipset, designed for Socket AM4 to support AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. It offers a robust power design, comprehensive cooling, and intelligent tuning options, making it an ideal foundation for daily users and DIY PC builders seeking reliable performance and flexibility.

Key features

  • Socket AM4 with AMD A520 chipset, supporting Ryzen 5000/4000 G/3000 Series processors
  • 2 x DDR4 DIMM slots, supporting up to 64 GB of memory with speeds up to 4600 MHz (OC)
  • 1 x M.2 socket and 4 x SATA III ports for fast storage connectivity
  • Rear panel includes HDMI 2.1, VGA, 4 x USB 3.2 Gen 1, 2 x USB 2.0, and Gigabit Ethernet
  • 1 x PCIe 3.0 x16 slot and 2 x PCIe 3.0 x1 slots for expansion
  • Comprehensive cooling with PCH heatsink and Fan Xpert for efficient thermal management
  • 5X Protection III hardware safeguards for enhanced system reliability and durability
Key Highlights
  • Home and office productivity PCs
  • Compact or budget-conscious custom builds (micro ATX)
  • Systems requiring fast boot or application drives (M.2 SSD)
  • Everyday multimedia and light content tasks
  • Chipset: AMD A520
  • CPU socket: Socket AM4 (supports 3rd Generation AMD Ryzen)
  • Form factor: Micro ATX
  • Memory: 2 x DDR4 DIMM slots, up to 64 GB
  • Storage: M.2 slot (PCIe 3.0 x4, up to 32 Gbps), SATA ports
  • Expansion: 1 x PCIe x16 (Gen3), 2 x PCIe x1 (Gen3)
  • LAN: Intel I211-AT and Realtek RTL8111H
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC887 / Realtek ALC897
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Cables included
SATA
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Component for
PC
CPU fan connector
Yes
Depth
221 mm
DVI-D ports quantity
0
ECC сompatibility
ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Harmonized System (HS) code
84733020
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
3
LAN controller
Realtek RTL8111H
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD A520
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of chassis fan connectors
1
Number of COM connectors
1
Number of EATX power connectors
2
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
5
Parallel processing technology support
Not supported
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
S/PDIF out connector
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB connector type
USB Type-A
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Wi-Fi
No
Width
226 mm
Windows operating systems supported
Windows 10 x64, Windows 11

Manual

Open Manual

Leaflet

Open Leaflet
