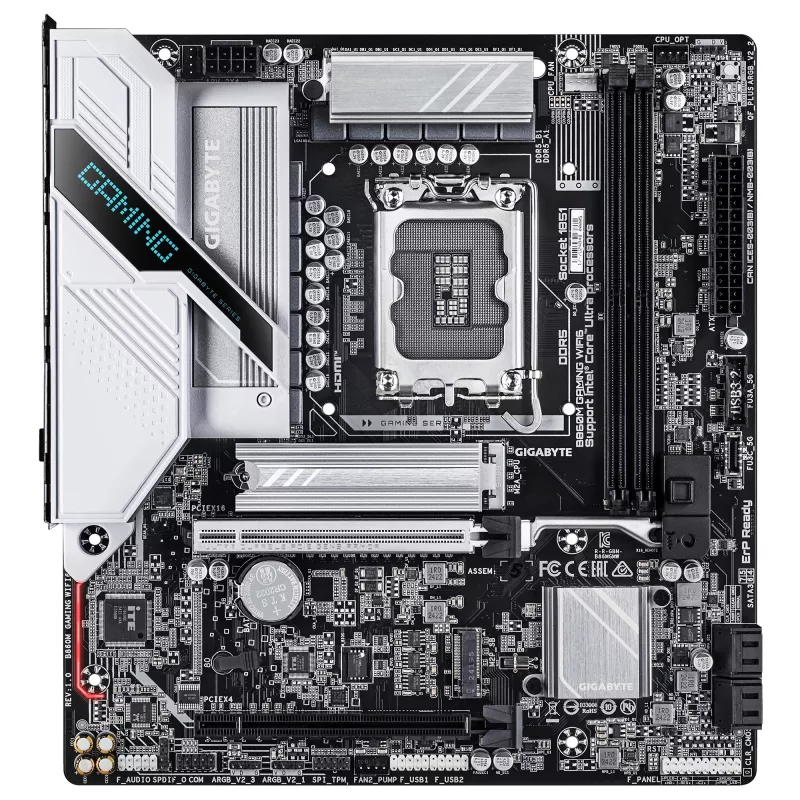

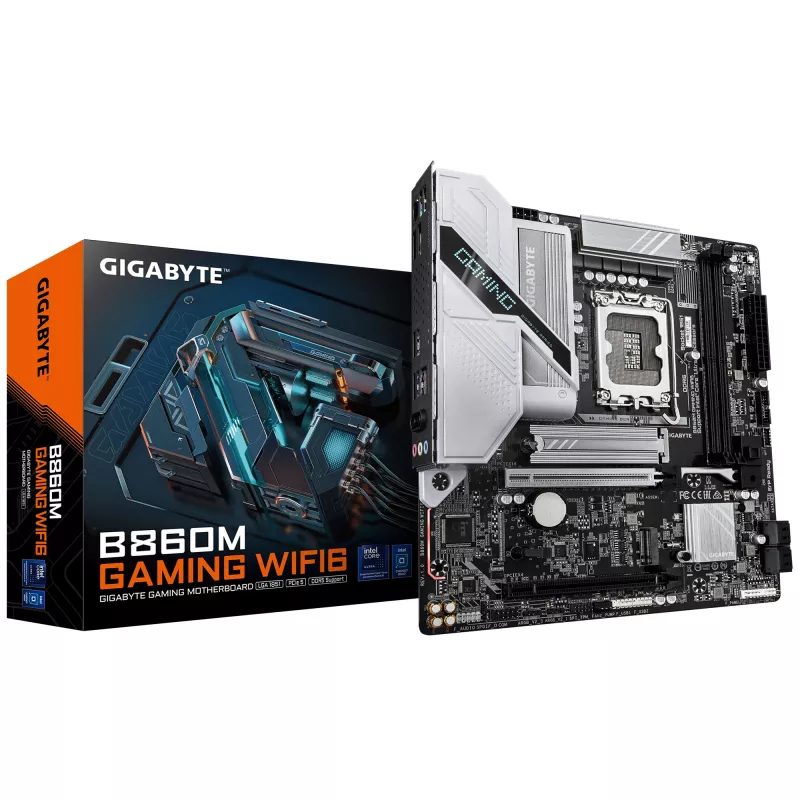

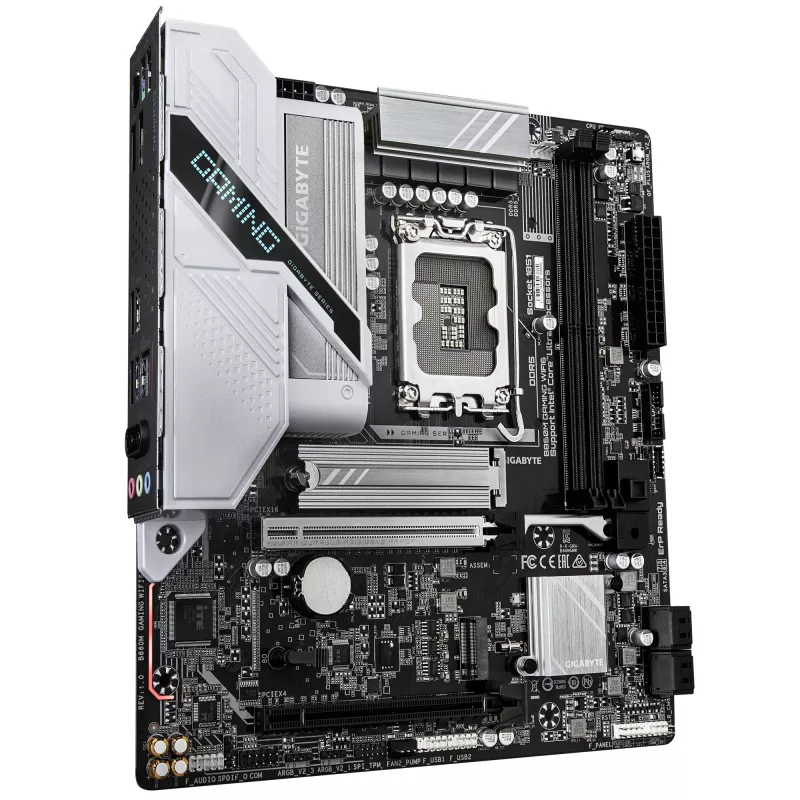

Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E

Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
36 mo.
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
Motherboard GIGABYTE B860M GAMING WIFI6 — Micro ATX, LGA 1851, DDR5 up to 9066MHz, 2 DIMM, PCIe 5.0, 2.5GbE, Wi‑Fi 6E
R3,244
GIGABYTE AORUS / AERO / GIGABYTE motherboards provide a versatile platform for gaming, content creation and professional use. These motherboards support Intel Core Ultra processors and offer a hybrid 8+1+2 phase VRM design, multiple high-speed storage options including PCIe 5.0 M.2, and modern conne... Read More
Stock 10 Code 1517969 Brand GIGABYTE Model B860M GAMING WIFI6 Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

GIGABYTE AORUS / AERO / GIGABYTE motherboards provide a versatile platform for gaming, content creation and professional use. These motherboards support Intel Core Ultra processors and offer a hybrid 8+1+2 phase VRM design, multiple high-speed storage options including PCIe 5.0 M.2, and modern connectivity such as 2.5GbE LAN and Wi‑Fi 6/6E. The boards are built with efficient thermal solutions and user-friendly BIOS and software tools to simplify system setup and maintenance.

Advantages

The series combines stable power delivery with advanced cooling features to support high-performance CPUs and memory. Integrated PCIe EZ-Latch Plus and WIFI EZ-Plug simplify hardware installation, while the Friendly UI in BIOS and software eases configuration. Multiple M.2 slots, PCIe 5.0 support and fast networking ensure low-latency storage and connectivity for demanding workloads.

Key specifications

  • CPU socket: Intel LGA 1851 (Socket V1) — supports Intel® Core™ Ultra (Series 1 & Series 2), including Intel Core Ultra Series 2
  • VRM: Hybrid 8+1+2 phases power design
  • Memory: DDR5, 2 DIMM slots, up to 128 GB
  • Storage: 2× M.2 slots (including 1× PCIe 5.0 x4), SATA III, RAID support, up to 6 storage drives
  • Audio: Realtek ALC897, 7.1 channels
  • Networking: 2.5GbE LAN, Wi‑Fi 6 / Wi‑Fi 6E (802.11ax), Bluetooth 5.3
  • Expansion: PCIe slots with PCIe EZ-Latch Plus (quick release, screwless design)
  • Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard
  • BIOS: UEFI AMI 256 Mbit, ACPI version 5.0, Clear CMOS jumper

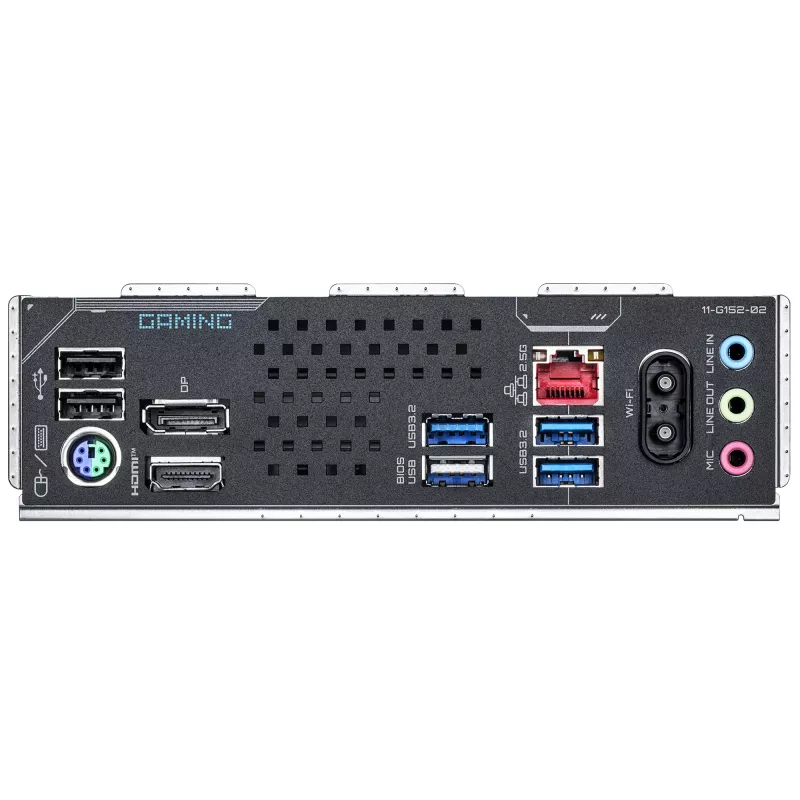

  • Video outputs: HDMI, DisplayPort

How to use

Install the motherboard into a compatible micro ATX chassis, mount the supported Intel LGA 1851 CPU following the socket instructions, and populate up to two DDR5 DIMMs for memory. Connect storage devices to the M.2 slots and SATA ports as required; install a PCIe device using the EZ-Latch Plus for tool-free securing. Attach the Wi‑Fi antenna using the WIFI EZ-Plug, connect LAN and peripherals, then enter the UEFI BIOS to configure boot order, memory settings and fan controls using the Friendly UI and AIO fan control features.

Recommendations

For optimal performance, use high-quality DDR5 memory modules and an adequate CPU cooler compatible with the VRM Thermal Armor. Keep BIOS and drivers up to date and follow motherboard manual instructions for M.2 cooling and RAID configuration to ensure stability and longevity.
Key Highlights
  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 8+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity: HDMI, DisplayPort
  • Intel LGA 1851 (Socket V1) Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • PC micro ATX Realtek ALC897 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
225 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
128 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
2
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
2
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
6
Number of water pump connectors
2
Package depth
268 mm
Package height
68 mm
Package weight
1.29 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Weight
1.23 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8851BE
