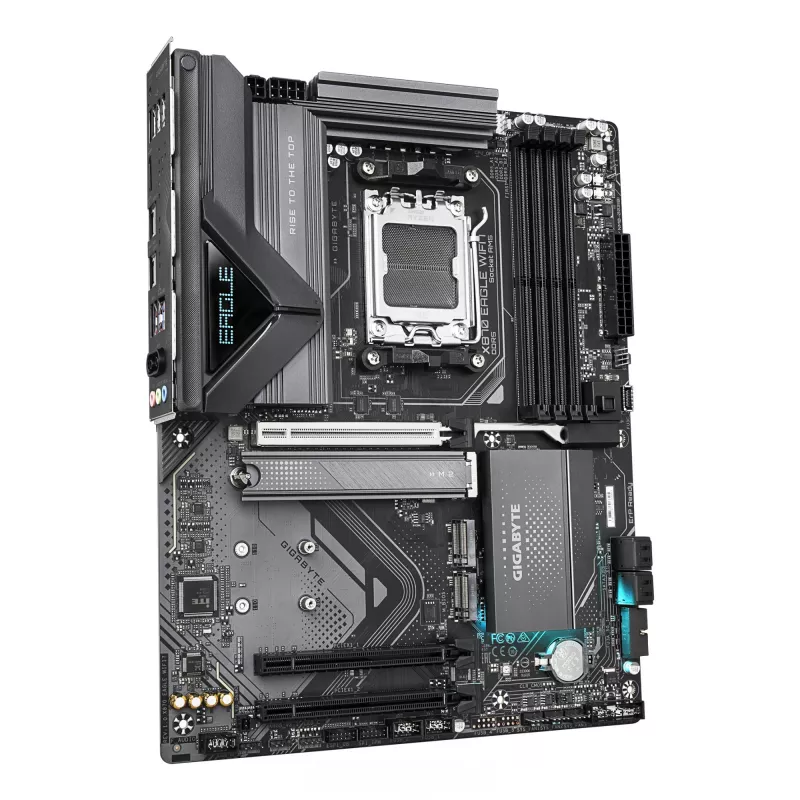

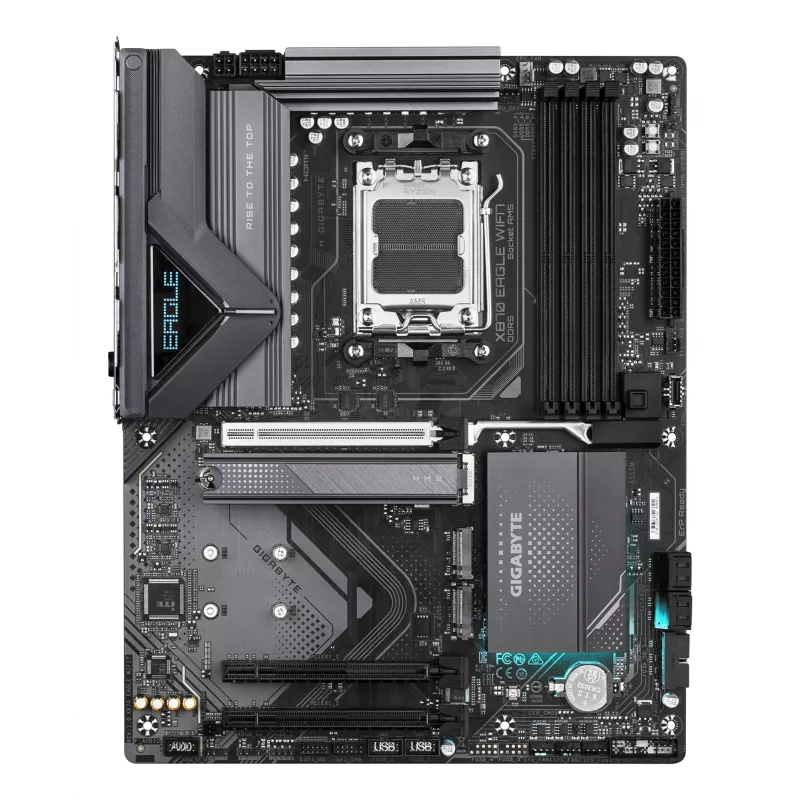

Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN

Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
36 mo.
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870 EAGLE WIFI7 ATX, AMD X870 chipset, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
R4,406
The GIGABYTE X870 EAGLE WIFI7 is an ATX motherboard based on the AMD X870 chipset designed for Socket AM5 processors. It supports AMD Ryzen 9000 series CPUs and up to 256 GB of DDR5 memory across four slots, with overclocking support up to 8000 MHz (OC). The board includes one PCIe 5.0 x16 slot, two... Read More
Stock 10 Code 29761 Brand GIGABYTE Model X870 EAGLE WIFI7 Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870 EAGLE WIFI7 is an ATX motherboard based on the AMD X870 chipset designed for Socket AM5 processors. It supports AMD Ryzen 9000 series CPUs and up to 256 GB of DDR5 memory across four slots, with overclocking support up to 8000 MHz (OC). The board includes one PCIe 5.0 x16 slot, two PCIe 4.0 slots, integrated Wi‑Fi 7, and 2.5GbE LAN, together providing a platform for high-performance PC builds with flexible storage and expansion options.

Advantages

The X870 EAGLE WIFI7 combines a robust 14+2+2 phase VRM design for stable power delivery with modern connectivity including Wi‑Fi 7 and 2.5GbE LAN. DDR5 memory support and a PCIe 5.0 slot allow for future‑proof component upgrades, while multiple M.2 and SATA III interfaces deliver versatile storage configurations. The ATX form factor and AM5 socket make it compatible with a wide range of Ryzen 9000 processors and mainstream PC cases.

Suitable for

  • High-performance gaming systems using AMD Ryzen 9000 CPUs
  • Content creation workstations requiring fast memory and storage
  • Users who need modern connectivity: Wi‑Fi 7 and 2.5GbE LAN
  • PC builders who want PCIe 5.0 expandability and multiple M.2 slots

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870
  • Processor socket: Socket AM5 (supports AMD Ryzen 9000 series)
  • Memory: 4 × DDR5 slots, up to 256 GB, up to 8000 MHz (OC)
  • PCIe: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 slots
  • Networking: Wi‑Fi 7, 2.5GbE LAN
  • Storage: M.2 and SATA III interfaces
  • VRM design: 14+2+2 phase
  • Weight: 1.74 kg

How to use

Install the motherboard into a compatible ATX case following the case and motherboard manual, place a compatible Socket AM5 CPU (AMD Ryzen 9000 series) and secure the CPU cooler according to the cooler instructions. Populate DDR5 memory modules in the recommended slots for dual/quad channel operation, install the power supply connectors (24‑pin ATX and CPU 8/4‑pin), and connect storage devices to M.2 and SATA III ports as needed. Configure BIOS/UEFI settings for memory XMP/EXPO profiles and storage mode, then install an operating system and drivers provided by GIGABYTE.

Recommendations

For stable overclocking and optimal performance, use high-quality power supplies, ensure adequate case airflow, and update the BIOS to the latest GIGABYTE release that supports your processor and memory configuration.
Key Highlights
  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5:4DIMMs with AMD EXPO Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
25110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
25110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum internal memory supported by processor
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
1
On-board graphics card
No
Package depth
270 mm
Package height
80 mm
Package weight
1.94 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage
PCI Express x1 (Gen 4.x) slots
0
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
0
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 3.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Peripheral (Molex) power connectors (4-pin)
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
0
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
2
USB4 Gen 3x2 ports quantity
0
Warranty period
3 year(s)
Weight
1.74 kg
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
MediaTek MT7925

Manual

Open Manual

Leaflet

Open Leaflet
