R2,207
The ASRock A520M-ITX/ac is a compact Mini-ITX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors including AMD Ryzen 2000 and 3000 series CPUs. It supports dual-channel DDR4 memory and features integrated Radeon Vega graphics (requires a compatible CPU). With built-in Wi-F... Read More
Stock 6 Code 26442 Brand ASROCK Model A520M-ITX/AC Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

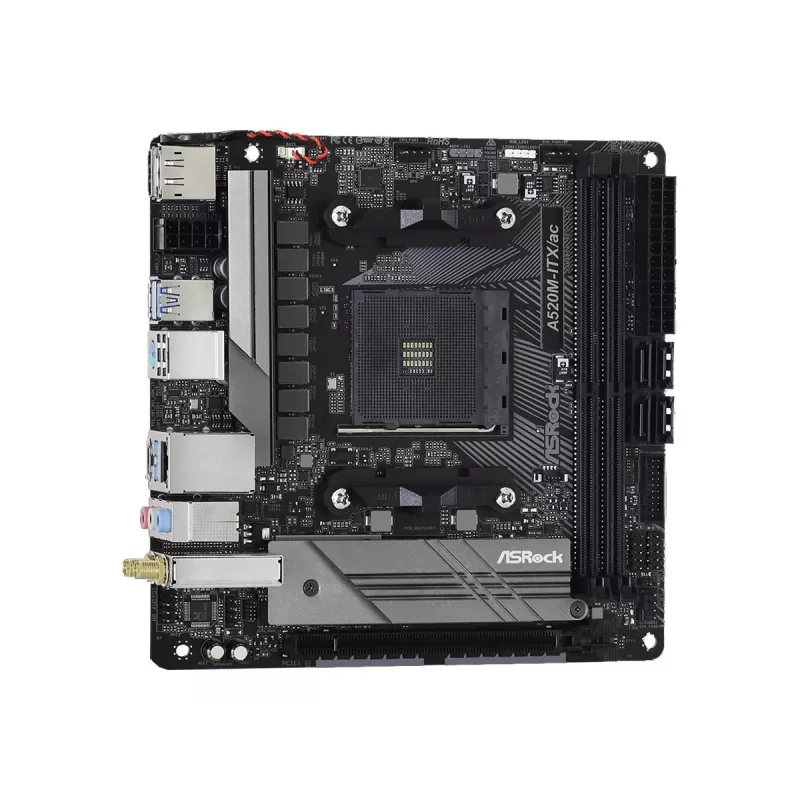

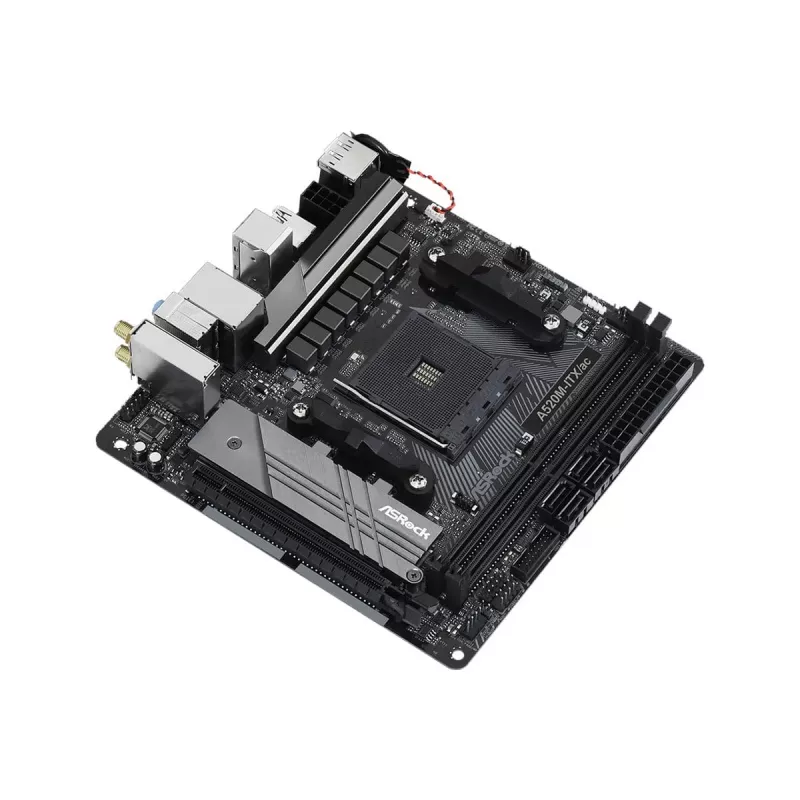

The ASRock A520M-ITX/ac is a compact Mini-ITX motherboard built on the AMD A520 chipset, designed for Socket AM4 processors including AMD Ryzen 2000 and 3000 series CPUs. It supports dual-channel DDR4 memory and features integrated Radeon Vega graphics (requires a compatible CPU). With built-in Wi-Fi 5 (802.11ac), Bluetooth, and Gigabit Ethernet, this board is ideal for space-saving builds that demand reliable connectivity and solid performance.

Key features

  • Socket AM4 with AMD A520 chipset, compatible with AMD Ryzen 2000 and 3000 series processors
  • Dual-channel DDR4 memory support, up to 64 GB via 2 DIMM slots, with speeds up to 4600 MHz (OC)
  • Integrated Wi-Fi 5 (802.11ac) and Bluetooth for wireless connectivity
  • Gigabit Ethernet LAN controller (Realtek RTL8111H) for stable wired networking

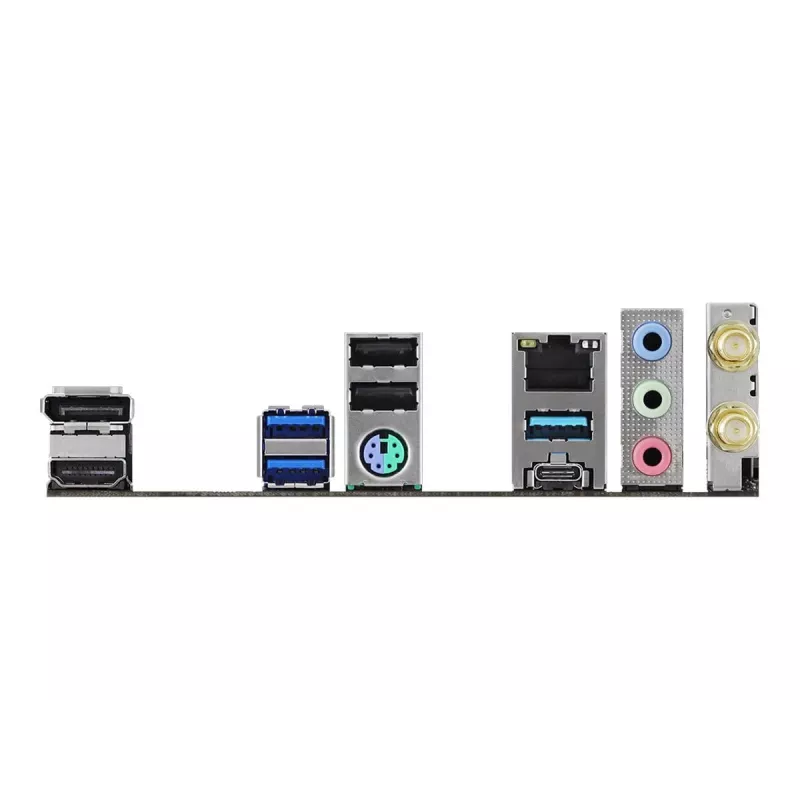

  • Rear panel connectors: 1 x PS/2, 1 x HDMI, 1 x DisplayPort, 1 x RJ45, audio jacks, Wi-Fi antenna socket, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 Type-C, and 2 x USB
  • Storage: 4 x SATA III ports and 1 x M.2 socket for fast SSDs
  • Onboard HD Audio (8-channel) and support for integrated Radeon Vega graphics (CPU required)
Key Highlights
  • Chipset: A520
  • Power design: 8 power phases with Dr. MOS
  • Power chokes: Premium 60A
  • Storage: Ultra M.2 (PCIe Gen3 x4 & SATA3) up to 32Gb/s
  • USB: Dual USB 3.2 Gen1 (Type-A + Type-C) on rear I/O
  • Networking: Dual‑band 802.11ac Wi‑Fi (2.4G/5G) and Bluetooth 4.2
  • Graphics outputs: HDMI + DisplayPort; HDMI 4K @60Hz supported
  • PCB: High Density Glass Fabric; Sapphire Black PCB
  • Protection: Full Spike Protection
  • Software: ASRock Live Update & APP Shop
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
4.2
Cables included
SATA
Component for
PC
CPU fan connector
Yes
Depth
201 mm
DVI-D ports quantity
0
ECC сompatibility
non-ECC
eSATA ports quantity
0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Firewire (IEEE 1394) ports
0
Front panel audio connector
Yes
Graphics card
Radeon Vega
Graphics card family
AMD
Harmonized System (HS) code
84733020
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of chassis fan connectors
2
Number of COM connectors
1
Number of HDDs supported
5
Number of memory slots
2
Number of Parallel ATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
0
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
Supported memory clock speeds
4333, 4466, 2133, 2400, 2667, 2933, 3200, 3466, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4400
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III, M.2
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Width
230 mm
