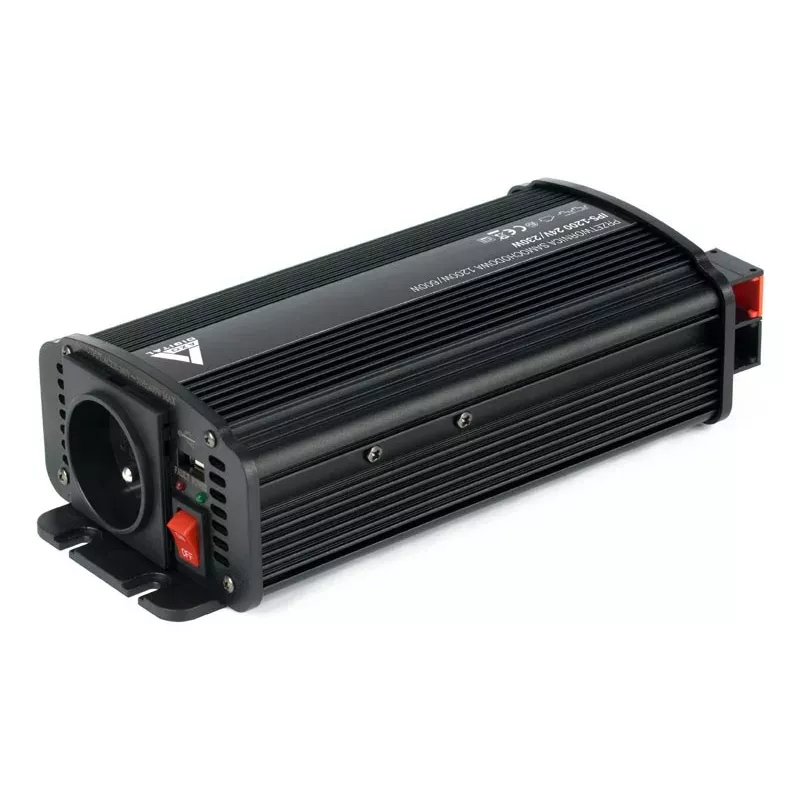

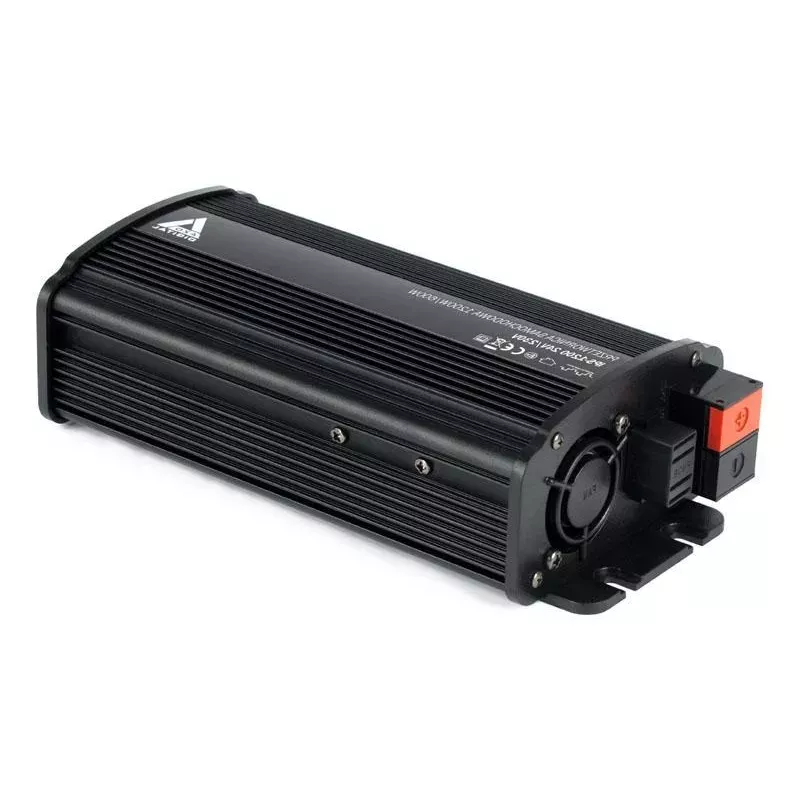

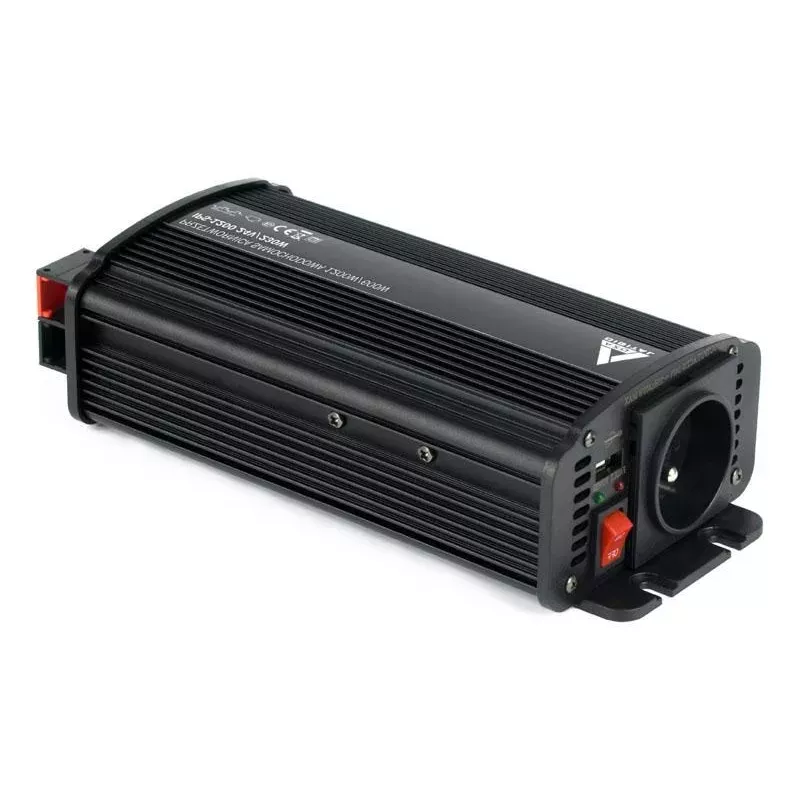

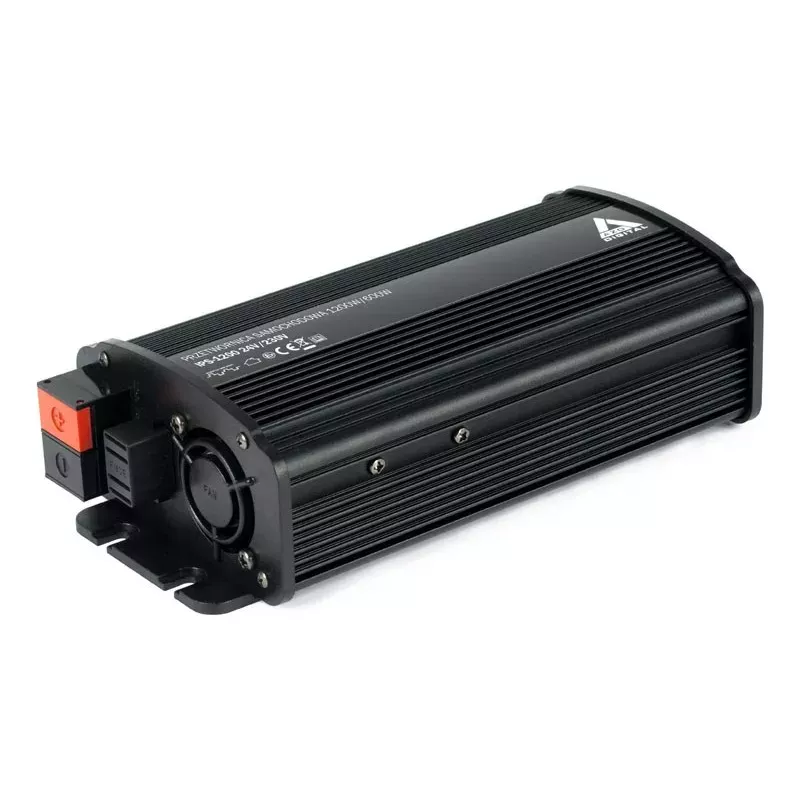

AZO Digital 12 VDC / 230 VAC Automotive Inverter IPS-1200U 1200W

The AZO Digital IPS-1200U is a high-performance automotive power inverter that converts 12V DC from your vehicle's battery into 230V AC, delivering 1200W of continuous power and 2400W peak power. Ideal for powering household appliances, tools, and electronics on the go, this inverter features a modified sine wave output, multiple protection systems, and a USB charging port.

Advantages

Reliable and robust design with active cooling ensures stable operation even under heavy loads. The built-in protections safeguard your devices and the inverter from overload, short circuit, thermal issues, and voltage fluctuations. The low battery alarm and cut-off prevent deep discharge of your vehicle battery.

Suitable for

• Camping and outdoor activities
• Mobile workstations and power tools
• Emergency power backup
• Car, truck, boat, and RV use

Key specifications

• Input Voltage: 12V DC (10.5V - 15.5V)
• Output Voltage: 230V AC (225V - 235V)
• Continuous Power: 1200W
• Peak Power: 2400W
• Output Waveform: Modified Sine Wave
• Output Frequency: 50Hz ± 0.5Hz
• Efficiency: >85%
• USB Output: 1x USB-A, 5V / 2.1A
• Output Sockets: 1x Schuko (Type F)

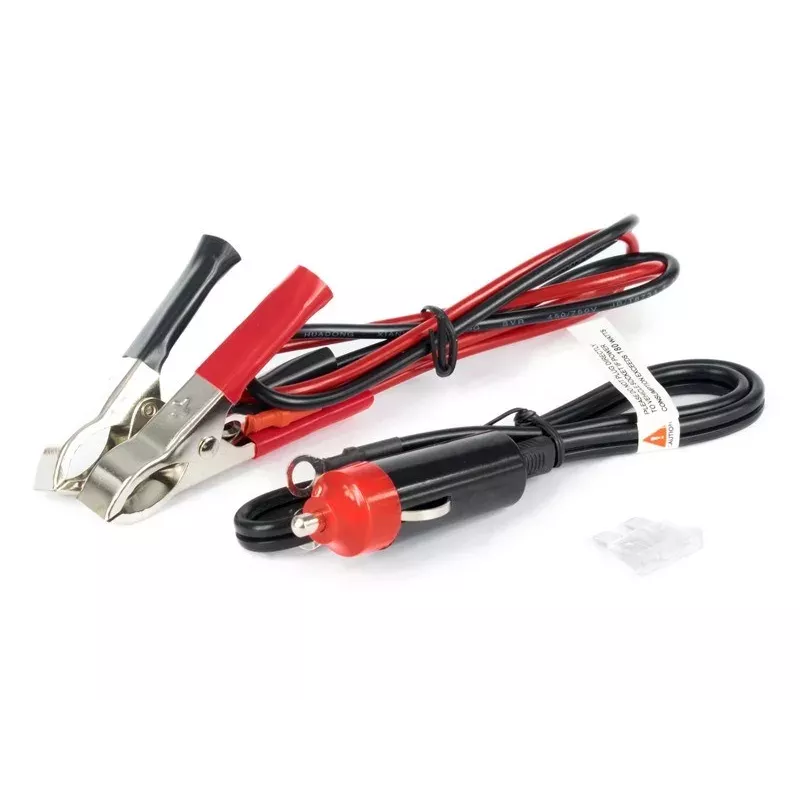

• Input Connection: Battery Clamps
• Protections: Overload, Short Circuit, Thermal, Overvoltage, Undervoltage
• Cooling: Active (Fan)
• Operating Temperature: -10°C to +50°C
• Low Battery Alarm: 10.7V ± 0.3V
• Low Battery Cut-off: 10.0V ± 0.3V
• Overvoltage Cut-off: 15.5V ± 0.5V

Recommendations

For optimal performance, connect directly to a 12V battery with sufficient capacity. Ensure adequate ventilation for the cooling fan. Not suitable for sensitive electronics requiring pure sine wave power.
