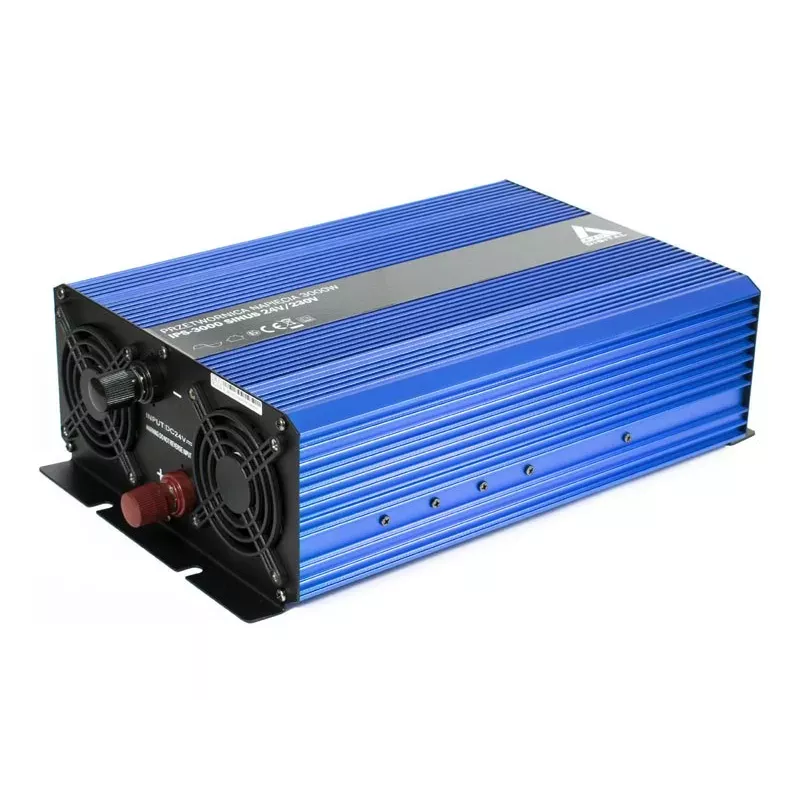

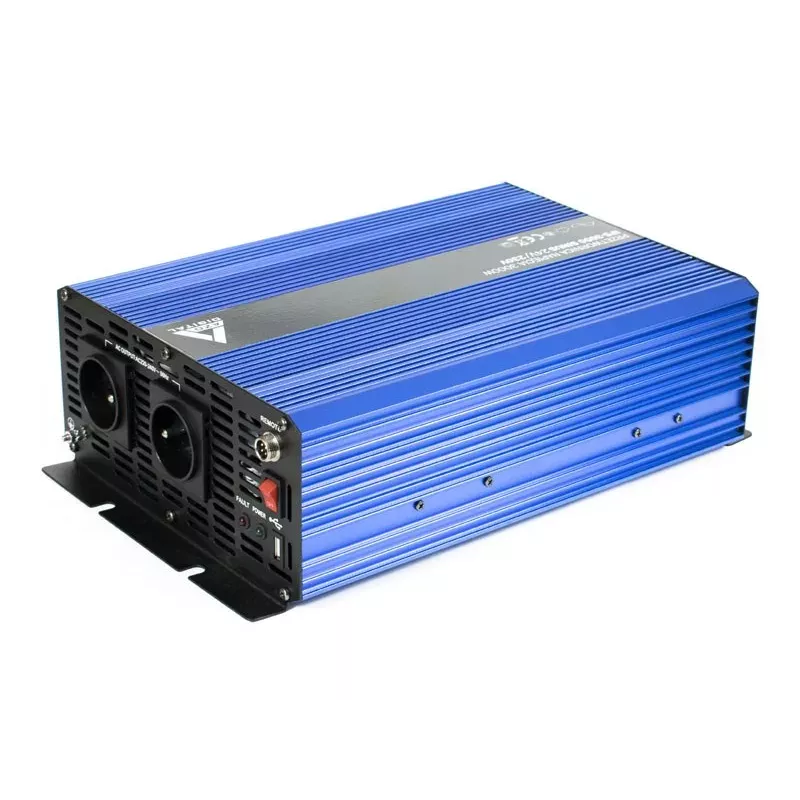

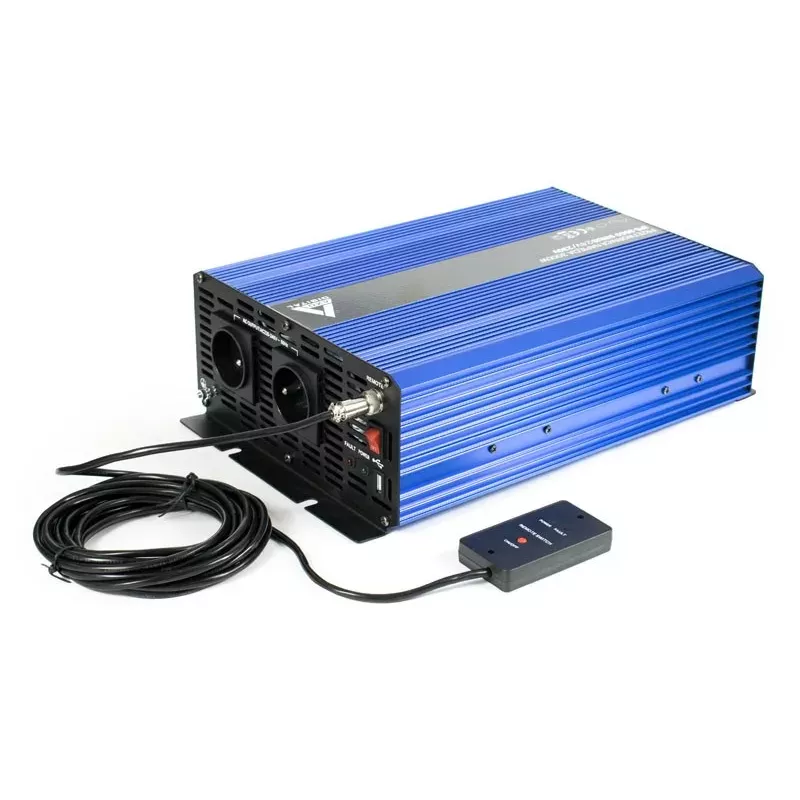

AZO Digital 24 VDC / 230 VAC Converter SINUS IPS-3000S 3000W Pure Sine Wave Inverter

The AZO Digital SINUS IPS-3000S is a high-performance pure sine wave inverter that converts 24V DC to 230V AC, delivering 3000W continuous power and 6000W peak surge. Designed for reliable off-grid and backup power applications, it ensures clean, stable AC output for sensitive electronics.

Advantages

Pure sine wave output ensures compatibility with sensitive devices like medical equipment, computers, and audio systems. High efficiency (>90%) reduces energy loss, while smart fan cooling maintains optimal performance. Comprehensive protections (overload, short circuit, over-temperature, under/over-voltage) safeguard both the inverter and connected devices.

Suitable for

• Off-grid solar systems
• RV, marine, and caravan power
• Emergency backup power
• Mobile workstations and field operations

Key specifications

• Input Voltage: 24V DC (range 21-30V DC)
• Output Voltage: 230V AC
• Continuous Power: 3000W
• Peak Power: 6000W (up to 30 seconds)
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz (±0.5 Hz)
• Efficiency: >90%
• No-load Current: <1.2A
• Total Harmonic Distortion: <3%
• Protections: Overload, short circuit, over-temperature (approx. 65°C), under-voltage (approx. 21V DC), over-voltage (approx. 30V DC)
• Cooling: Active smart fan
• Operating Temperature: -10°C to +40°C

Recommendations

For optimal performance, use with a battery bank capable of delivering sufficient current. Ensure proper ventilation for cooling. This inverter is ideal for continuous use with sensitive electronics requiring pure sine wave power.
