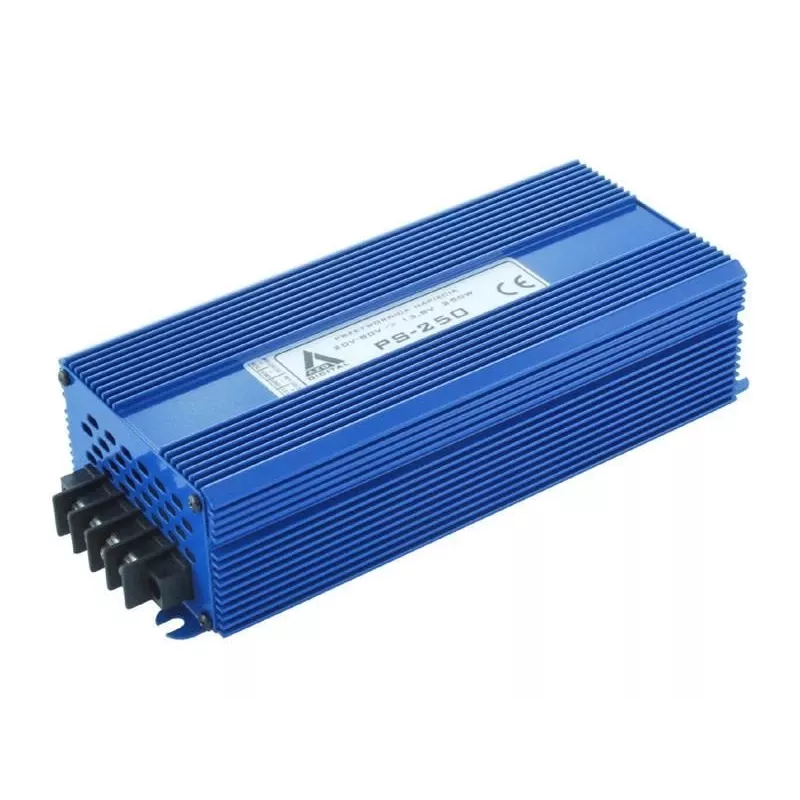

AZO Digital PS-250-24V 250W DC-DC Converter 30-80 VDC Input to 24 VDC Output, Galvanic Isolation, IP21

Industrial-grade DC-DC converter delivering a stable 24 VDC output from a 30–80 VDC input, with 250 W of power and galvanic isolation. This step-down converter is engineered for demanding applications where reliable voltage conversion and electrical separation are critical. Its rugged metal housing and IP21 rating make it suitable for installation in control cabinets and industrial environments.

Advantages

The PS-250-24V provides high efficiency above 90%, reducing energy loss and heat generation. Galvanic isolation protects sensitive equipment from ground loops and voltage spikes. Comprehensive protection features—including overload, short-circuit, over-voltage, and input reverse polarity—ensure long-term reliability. Passive convection cooling eliminates fan noise and maintenance, while screw terminals simplify wiring.

Suitable for

• Industrial automation systems
• Telecommunications equipment
• Renewable energy installations
• Transportation and marine electronics
• Battery-powered systems requiring isolation

Key specifications

• Input voltage range: 30–80 VDC
• Output voltage: 24 VDC (nominal)
• Output power: 250 W maximum
• Output current: 10.4 A maximum
• Galvanic isolation between input and output
• Efficiency: >90%
• IP21 ingress protection
• Operating temperature: -25°C to +55°C
• Mounting: DIN rail or surface mount
• Protections: overload, short-circuit, over-voltage, reverse polarity

Recommendations

For reliable 24 VDC power in harsh electrical environments, the AZO Digital PS-250-24V offers robust isolation and high efficiency, making it an excellent choice for industrial and renewable energy applications.
