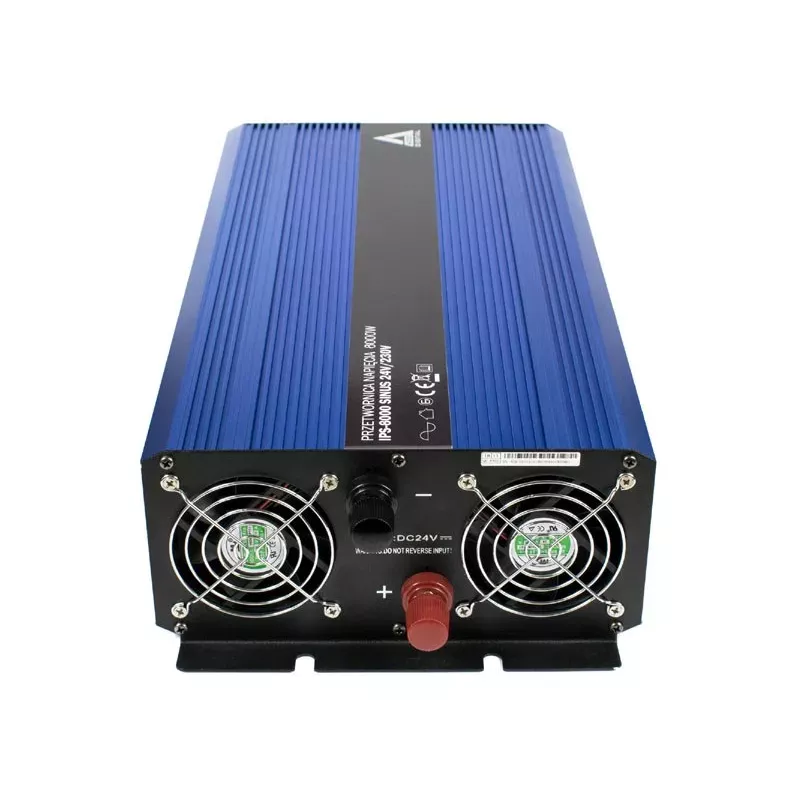

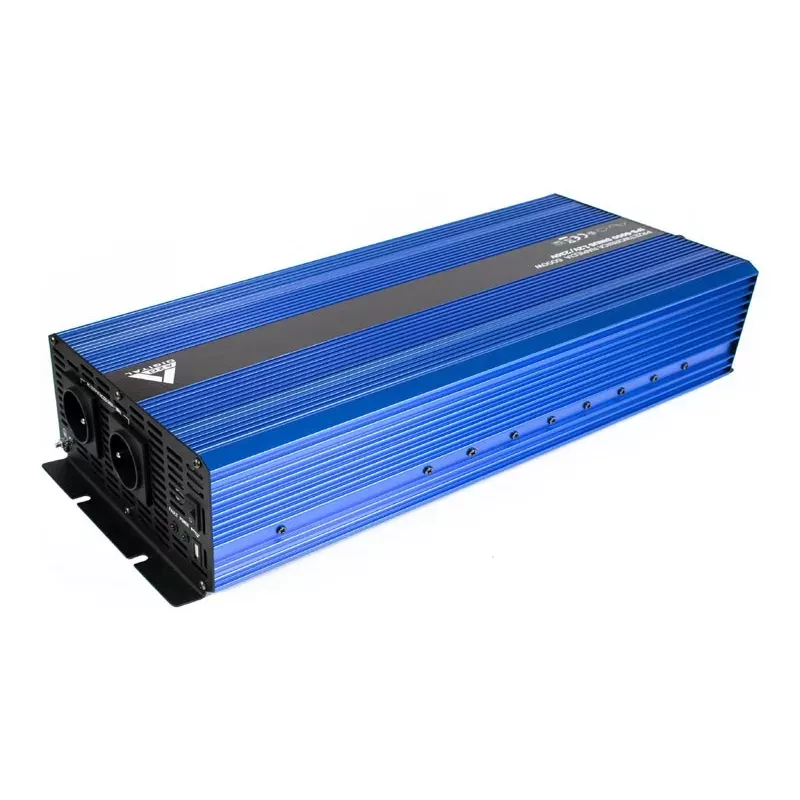

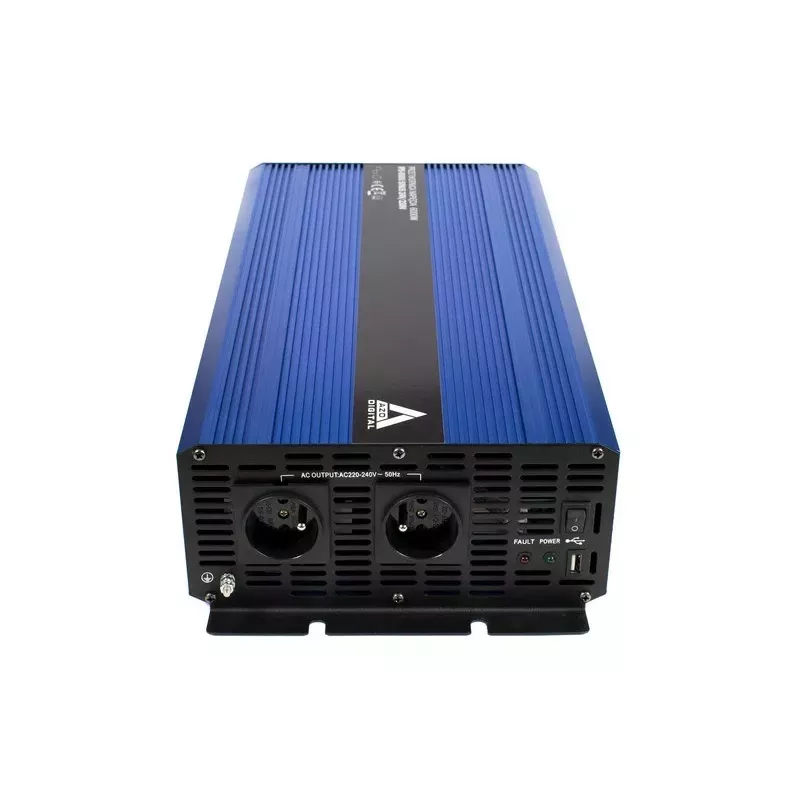

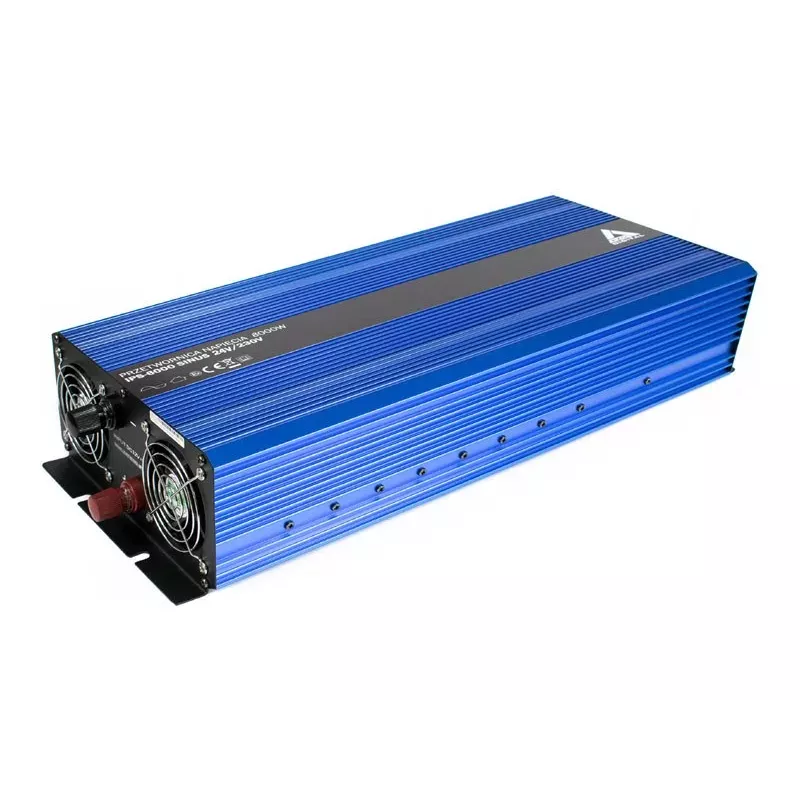

AZO Digital 24 VDC / 230 VAC Converter SINUS IPS-8000S 8000W Pure Sine Wave Inverter

The AZO Digital SINUS IPS-8000S is a high-power pure sine wave inverter designed to convert 24 VDC to 230 VAC, delivering a continuous output of 8000W and a peak surge of 16000W for up to 30 seconds. Ideal for off-grid systems, backup power, and mobile applications, this inverter ensures clean and stable AC power for sensitive electronics.

Advantages

Pure sine wave output with less than 3% total harmonic distortion (THD) ensures compatibility with sensitive devices. High efficiency (>85%) and low no-load current (<1.5A) reduce power loss. Comprehensive protections (overload, short circuit, over-temperature, over-voltage, under-voltage) guarantee safe operation. The thermostatically controlled fan provides active cooling, while the LCD display shows input voltage, output voltage, frequency, load level, and battery status.

Suitable for

• Off-grid solar power systems
• Backup power for homes and offices
• Mobile installations in RVs, boats, and trucks
• Powering sensitive electronics, tools, and appliances

Key specifications

• Continuous output power: 8000W
• Peak power (30s): 16000W
• Input voltage: 24 VDC (range 21-30 VDC)
• Output voltage: 230 VAC
• Output waveform: Pure sine wave
• Output frequency: 50 Hz
• Efficiency: >85%
• No-load current: <1.5A
• Protections: Overload, short circuit, over-temperature, over-voltage, under-voltage
• Cooling: Active (thermostatically controlled fan)
• Display: LCD (input V, output V, frequency, load, battery level)
• AC output sockets: 2x Schuko
• USB output: 5V / 1A
• Remote control port: Yes (RJ45 type)
• THD: <3%
• Operating temperature: -10°C to +40°C

Recommendations

For optimal performance, use with a battery bank capable of delivering sufficient current. Ensure proper ventilation for cooling. The remote control port allows convenient on/off control from a distance.
