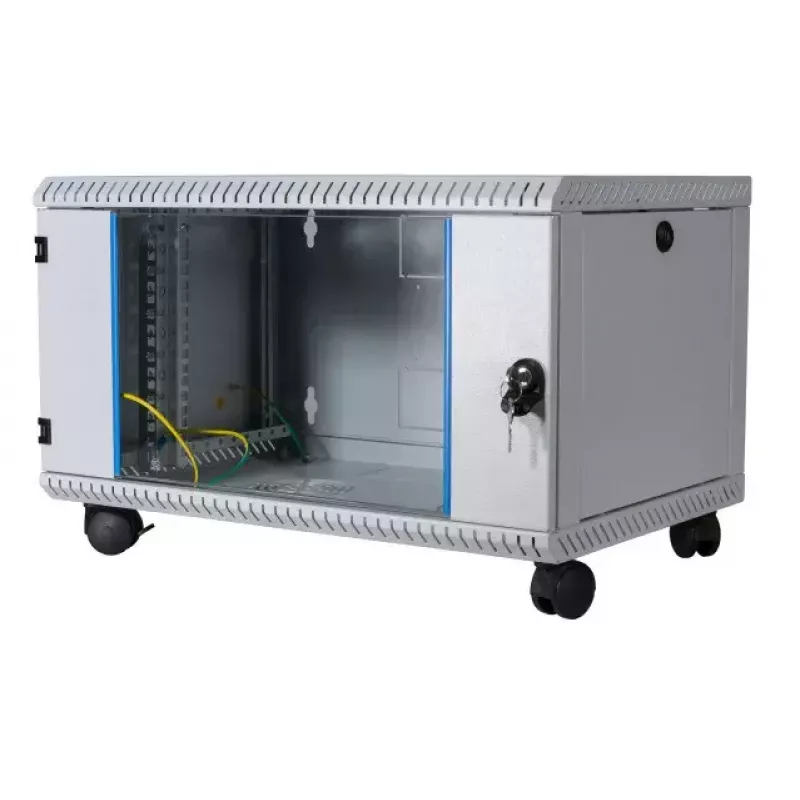

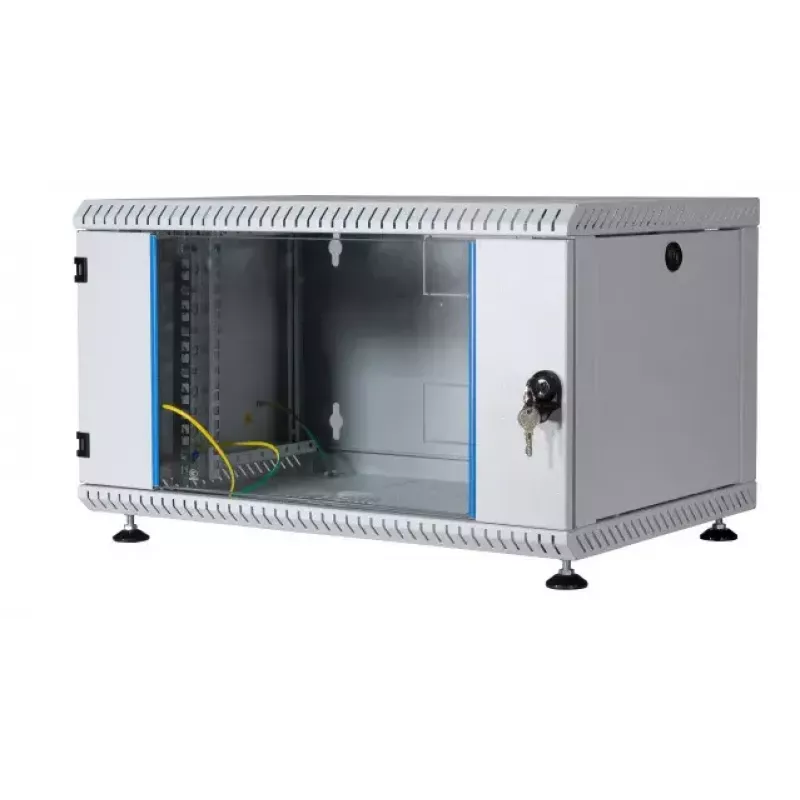

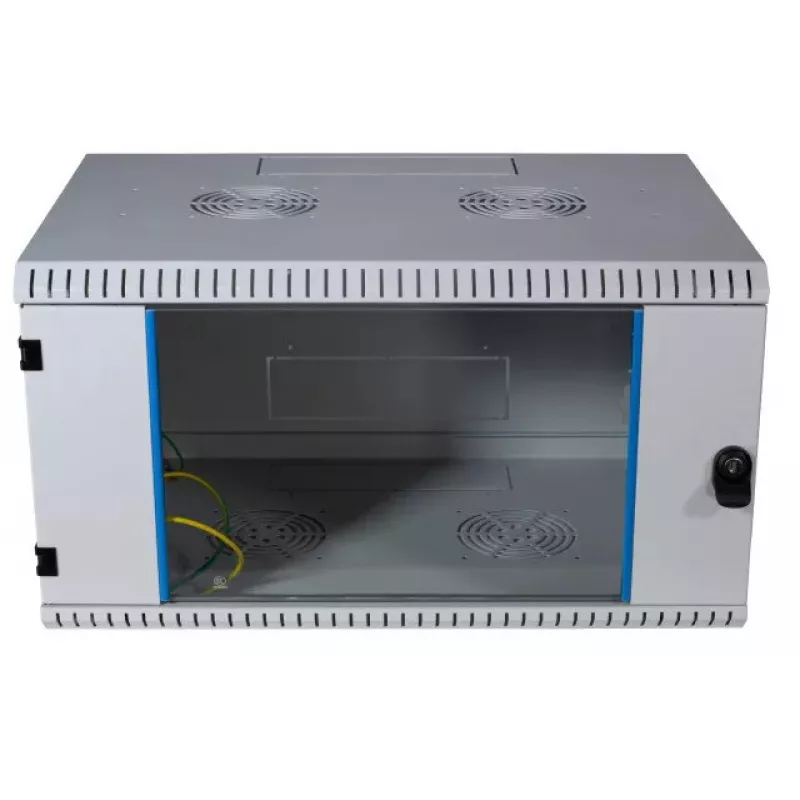

Rack cabinet EFB Elektronik 9U 600x600x465 mm IP20 grey for IP security camera

Steel sheet housing EFB Elektronik 691709VGR.60 is a pre-assembled 9U rack cabinet designed for IP security camera and network equipment. The 600 x 600 mm footprint and 465 mm height provide compact installation space with a maximum load capacity of 50 kg. The cabinet features removable side walls, welded frame, galvanised 2 x 19" profile rails at the front and pre-punched cable entry points in roof, bottom and rear for easy wiring. Finish is RAL7035 light grey and the protection rating is IP20.

Advantages

The cabinet arrives completely pre-assembled and self-ventilated, reducing installation time. It is prepared for an optional Plug & Play 2-fan unit (Art.-No. 691656xx) and the bottom includes four mounting points for leveling feet or castors (ordered separately). The front door has metal hinges and a latch lock combined with a 4 mm certified safety glass window for visibility and stability. All cabinet sections are internally earthed and delivery includes a brush terminal, a set of captive nuts (PU 20 pcs.) and two keys.

Suitable for

• Mounting IP security cameras' recording and network equipment
• Small server or network installations requiring 9U rack space
• Environments needing a compact, lockable 19" cabinet with cable entry points

Key specifications

• Brand: EFB Elektronik, model: 691709VGR.60
• Rack capacity: 9U; 19" profile rails, galvanised, depth-adjustable
• Dimensions (W x D x H): 600 x 600 x 465 mm
• Maximum weight capacity: 50 kg
• Protection class: IP20
• Colour: RAL7035 (light grey)
• Front door: latch lock with 4 mm certified safety glass; metal hinges
• Side walls: removable, lockable; locks keyed alike with door

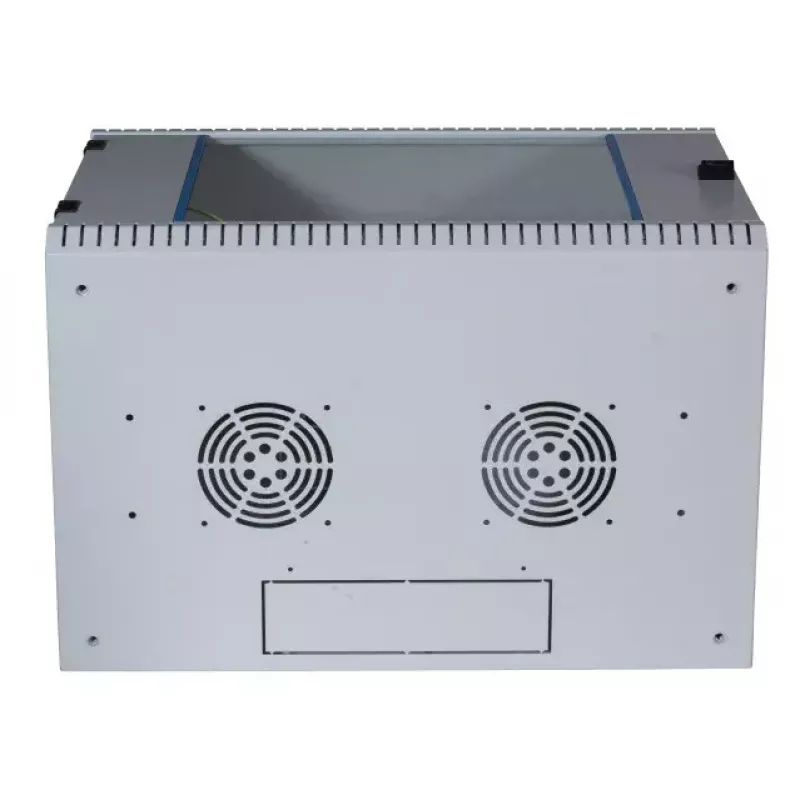

• Cable entry: pre-punched openings 250 x 70 mm in roof, bottom and rear
• Included accessories: 1 x brush terminal, 1 x set of captive nuts (PU 20), 2 x keys

How to use

Place the cabinet on a stable surface or mount leveling feet/castors using the four bottom mounting points (order separately). Open the front door using the supplied keys, remove side panels if required and mount equipment on the galvanised 19" rails, adjusting depth as needed. Route cables through the pre-punched 250 x 70 mm openings in roof, bottom or rear and use the included brush terminal for tidy cable ingress. Ensure internal earthing connections are made before powering installed devices. For improved airflow, install the optional Plug & Play 2-fan unit (Art.-No. 691656xx).

Recommendations

Use the cabinet indoors in dry environments compatible with IP20 protection. Do not exceed the stated maximum load of 50 kg and keep ventilation openings unobstructed. Order leveling feet or castors if the cabinet will be moved or placed on uneven floors; the fan unit is recommended where additional forced ventilation is required.
