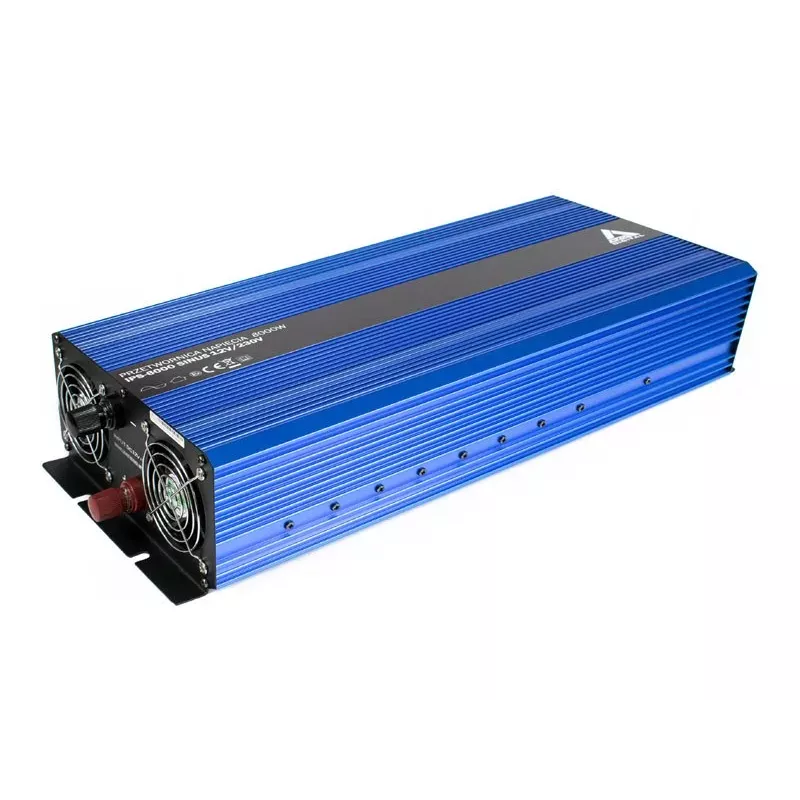

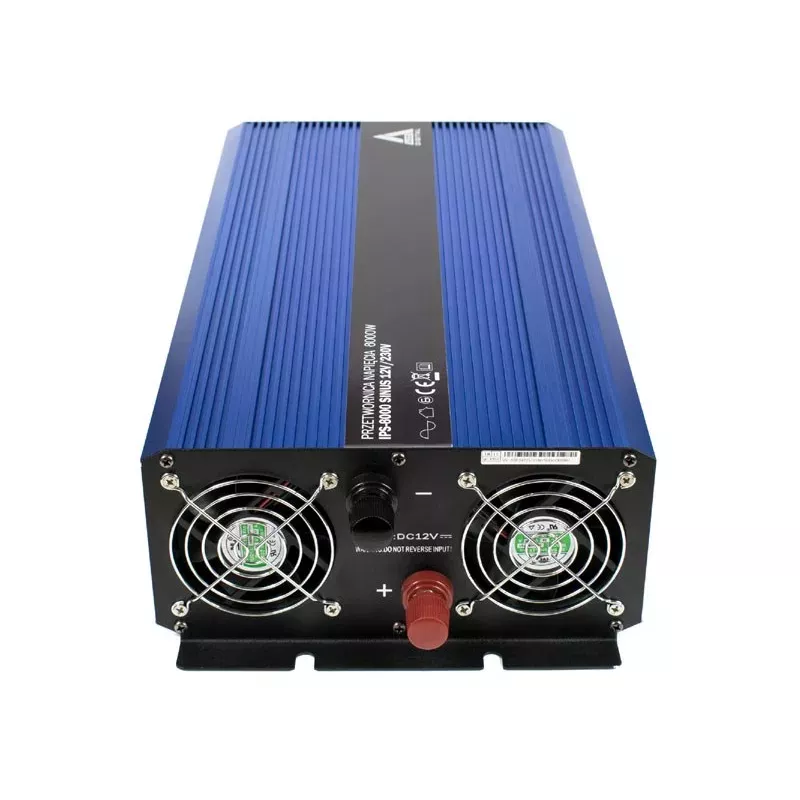

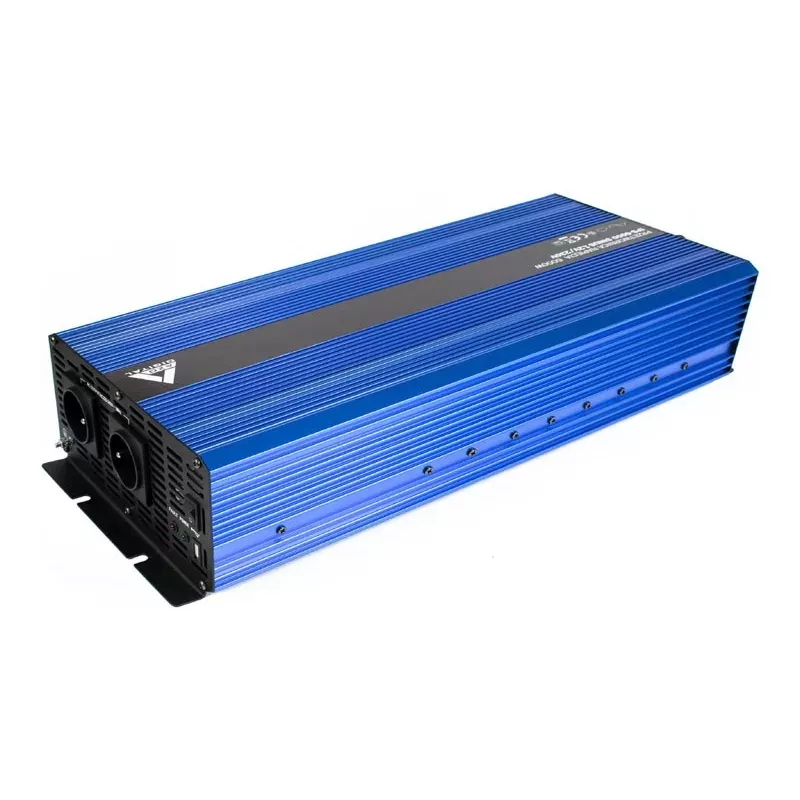

AZO Digital 12 VDC / 230 VAC Pure Sine Wave Inverter IPS-8000S 8000W

The AZO Digital IPS-8000S is a high-performance pure sine wave inverter that converts 12 V DC to 230 V AC, delivering a continuous power of 4000 W and a peak power of 8000 W. Designed for reliable off-grid and backup power, it features advanced protection, LCD display, and remote control capability.

Advantages

Pure sine wave output ensures safe operation of sensitive electronics. High efficiency (>85%) and low no-load current (<1.2 A) save energy. Comprehensive protections (overload, short circuit, over/under voltage, overheating) provide peace of mind. The LCD screen shows input/output voltage, power, and frequency for easy monitoring.

Suitable for

• Off-grid solar systems
• Emergency backup power
• Mobile applications (RVs, boats, trucks)
• Powering household appliances and tools

Key specifications

• Continuous Power: 4000 W
• Peak Power: 8000 W (30 ms)
• Input Voltage: 12 V DC (10.5 V - 15.5 V)
• Output Voltage: 230 V AC
• Output Frequency: 50 Hz (±0.5 Hz)
• Output Waveform: Pure Sine Wave
• Efficiency: >85%
• No-load Current: <1.2 A
• Protection: Overload, Short Circuit, Over-voltage, Under-voltage, Overheating
• Cooling: Active (Fan)

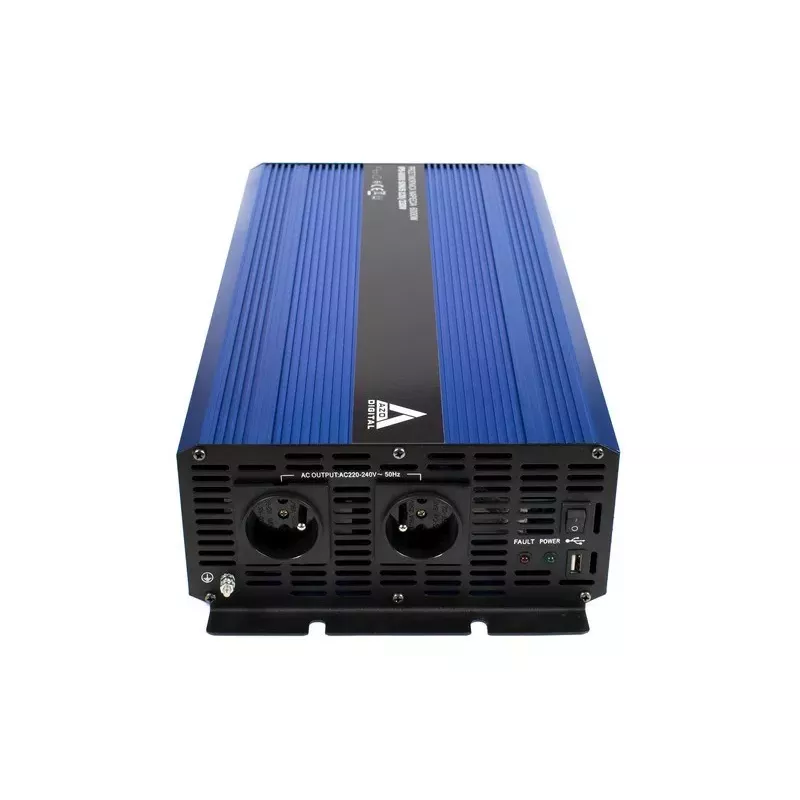

• Output Sockets: 2x Schuko (Type F)
• Display: LCD (Input/Output Voltage, Power, Frequency)
• Operating Temperature: -10°C to +40°C
• Housing Material: Aluminum
• Remote Control Port: Yes
• USB Output: 5V / 1A

Recommendations

For optimal performance, use with appropriate battery capacity and cable gauge. The remote control port allows convenient on/off switching. Ensure adequate ventilation for active cooling.
