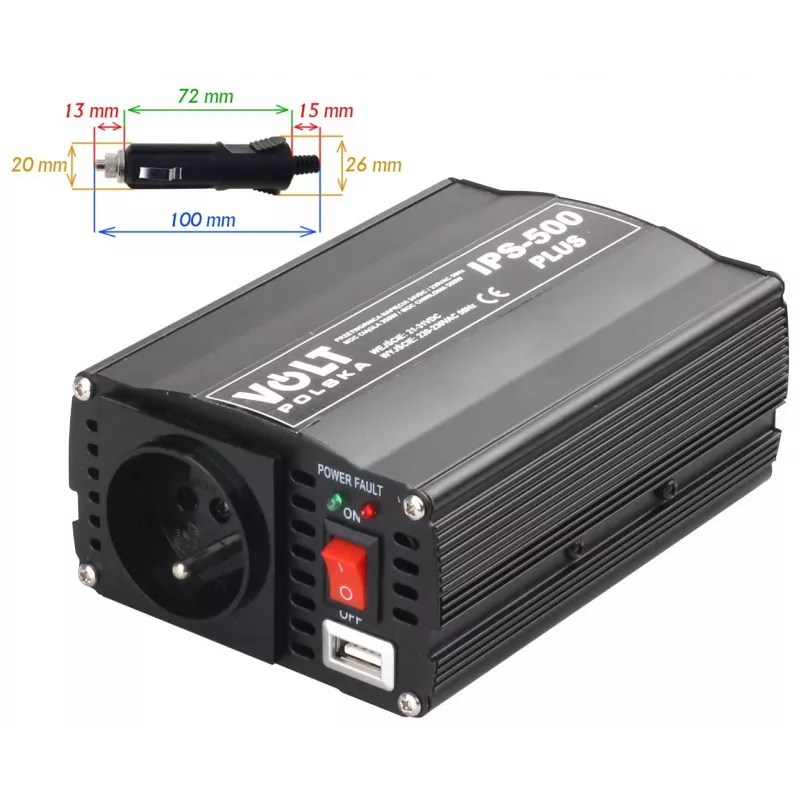

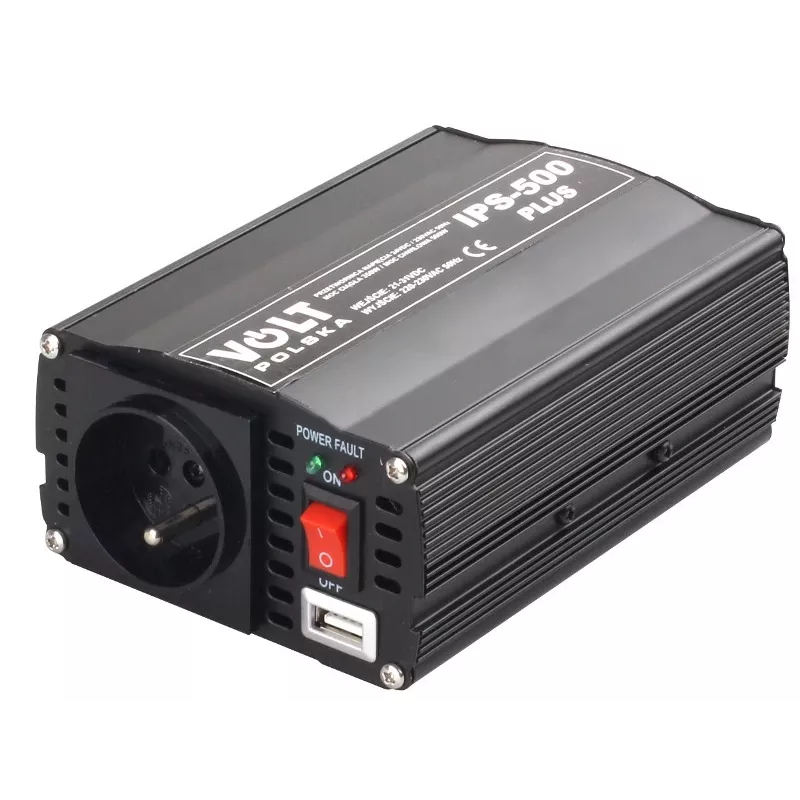

VOLT POLSKA IPS-500 PLUS 24V / 230V 350/500 W Power Inverter

The VOLT POLSKA IPS-500 PLUS is a reliable power inverter that converts 24V DC to 230V AC, providing continuous power of 350W and peak power of 500W. Ideal for mobile, marine, and off-grid applications, it features a modified sine wave output and multiple protection functions.

Advantages

High efficiency (>85%), low no-load current (<300mA), and comprehensive protections (overload, short circuit, thermal, overvoltage, undervoltage) ensure safe and efficient operation. Active cooling fan maintains optimal temperature.

Suitable for

• Caravans, boats, and RVs
• Off-grid solar systems
• Emergency backup power
• Powering household appliances and tools

Key specifications

• Input Voltage: 24V DC
• Output Voltage: 230V AC
• Continuous Power: 350W
• Peak Power: 500W
• Output Waveform: Modified Sine Wave
• Output Frequency: 50Hz
• Efficiency: >85%
• No-Load Current: <300mA
• Low Battery Alarm: 21V ± 0.5V
• Low Battery Cut-off: 20V ± 0.5V
• Overvoltage Cut-off: 30V ± 0.5V
• Protections: Overload, Short Circuit, Thermal, Overvoltage, Undervoltage
• Cooling: Active (Fan)
• Output Socket: 1x Schuko (Type F)
• Input Connection: Battery Clamps
• Operating Temperature: -10°C to +40°C
• Certifications: CE, RoHS

Recommendations

For best performance, ensure battery voltage is stable and connections are secure. Suitable for resistive and inductive loads within power limits.
