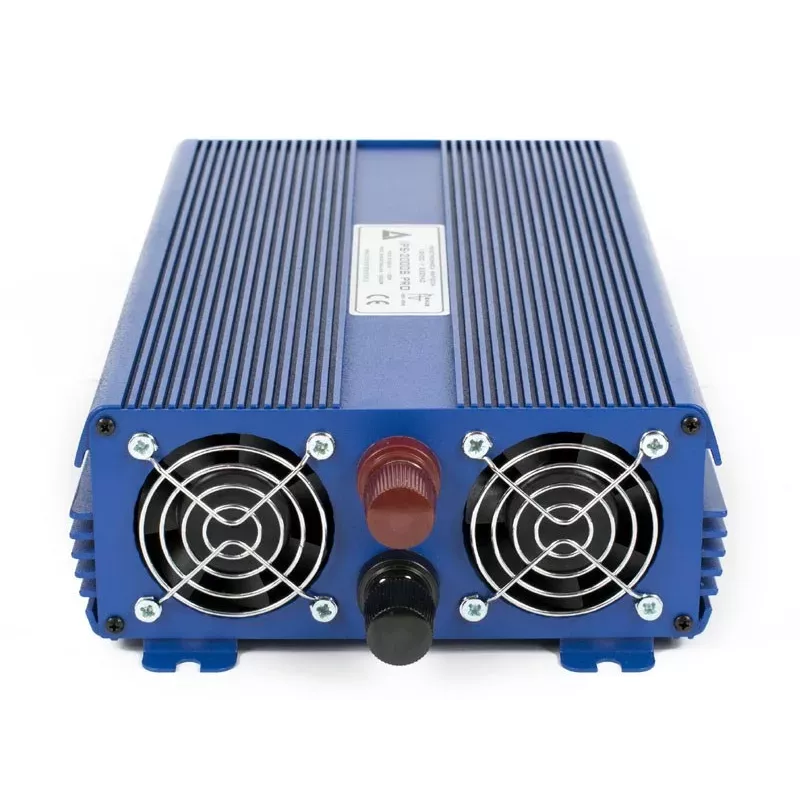

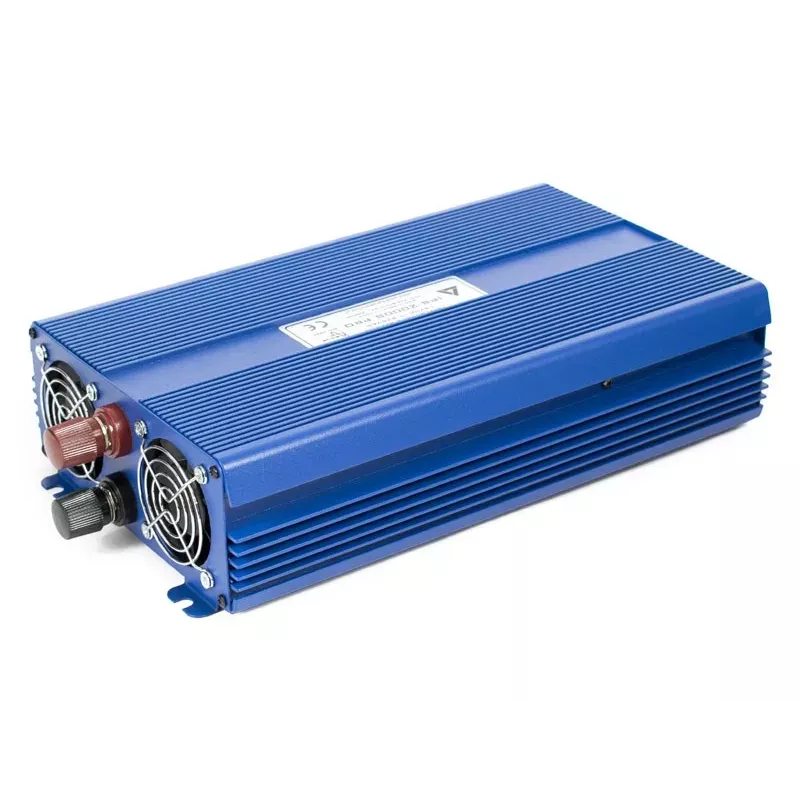

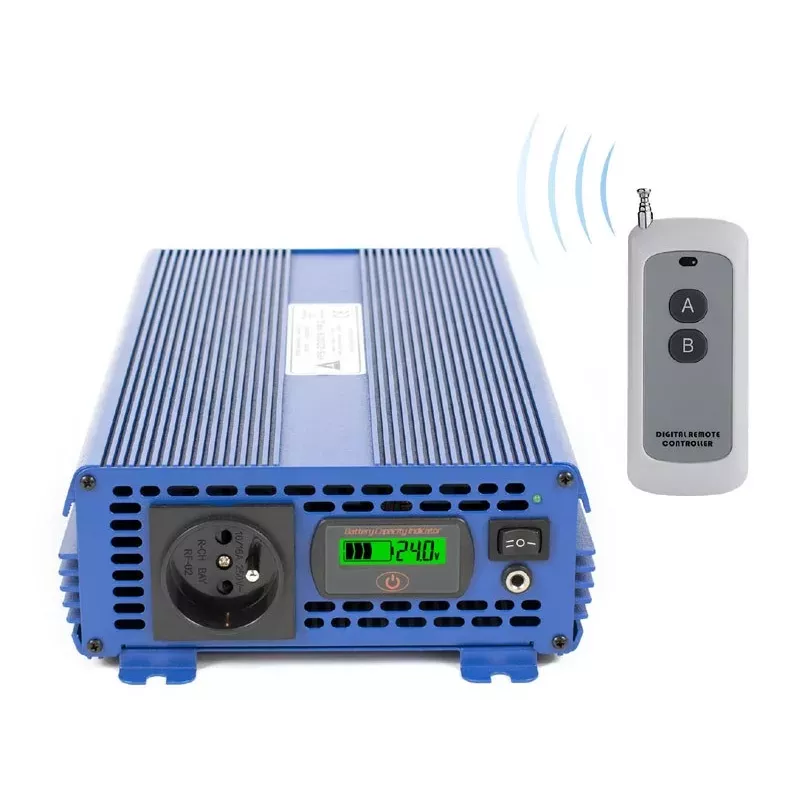

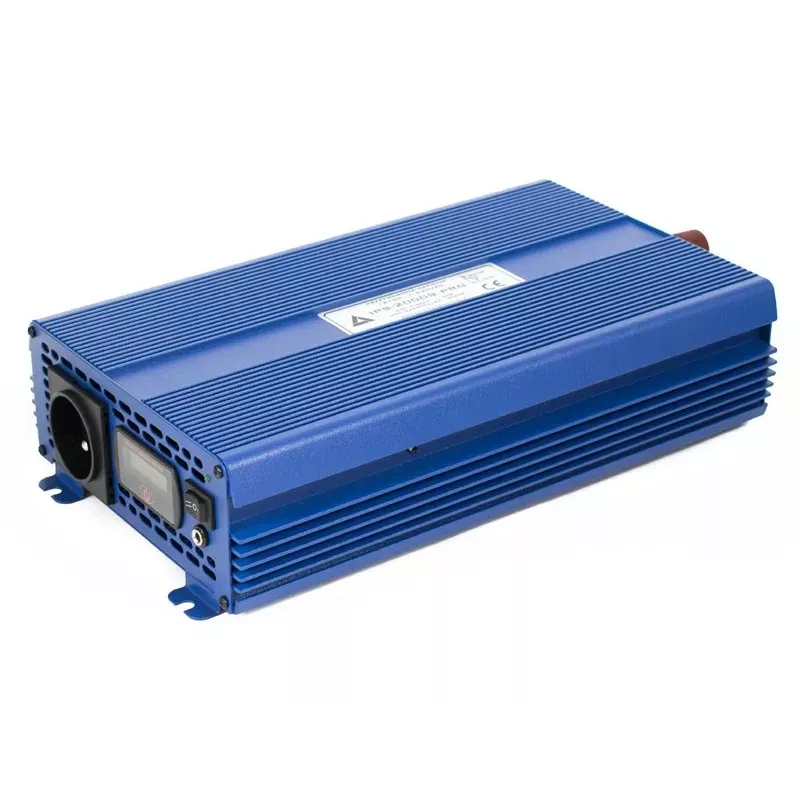

AZO Digital 24 VDC / 230 VAC ECO MODE SINUS IPS-2000S PRO 2000W Pure Sine Wave Voltage Converter

The AZO Digital IPS-2000S PRO is a high-performance pure sine wave voltage converter designed to convert 24 VDC to 230 VAC, delivering a continuous power output of 2000W. Ideal for off-grid, marine, RV, and backup power applications, this inverter features ECO mode for reduced no-load current consumption and advanced protection systems for reliable operation.

Advantages

High efficiency (>92%) minimizes energy loss. ECO mode reduces no-load current to <0.15A, extending battery life. Pure sine wave output ensures compatibility with sensitive electronics. Smart fan cooling maintains optimal temperature. Remote control port allows convenient operation.

Suitable for

• Off-grid solar systems
• Marine and RV power
• Backup power for home or office
• Mobile workshops and field operations

Key specifications

• Input Voltage: 24 VDC (range 21-30 VDC)
• Output Voltage: 230 VAC pure sine wave
• Continuous Power: 2000W
• Peak Power: 4000W (up to 30 minutes)
• Output Frequency: 50 Hz (±0.5 Hz)
• Efficiency: >92%
• No-Load Current: <0.8A (normal), <0.15A (ECO mode)
• Protections: Overload, short circuit, over temperature, under voltage, over voltage
• Output Sockets: 2x Schuko (Type F)
• THD: <3%
• Operating Temperature: -10°C to +50°C
• Cooling: Active smart fan
• Display: LED indicators

Recommendations

For optimal performance, use with a 24V battery bank capable of delivering sufficient current. Ensure proper ventilation for cooling. The remote control port allows integration with a remote switch (sold separately).
