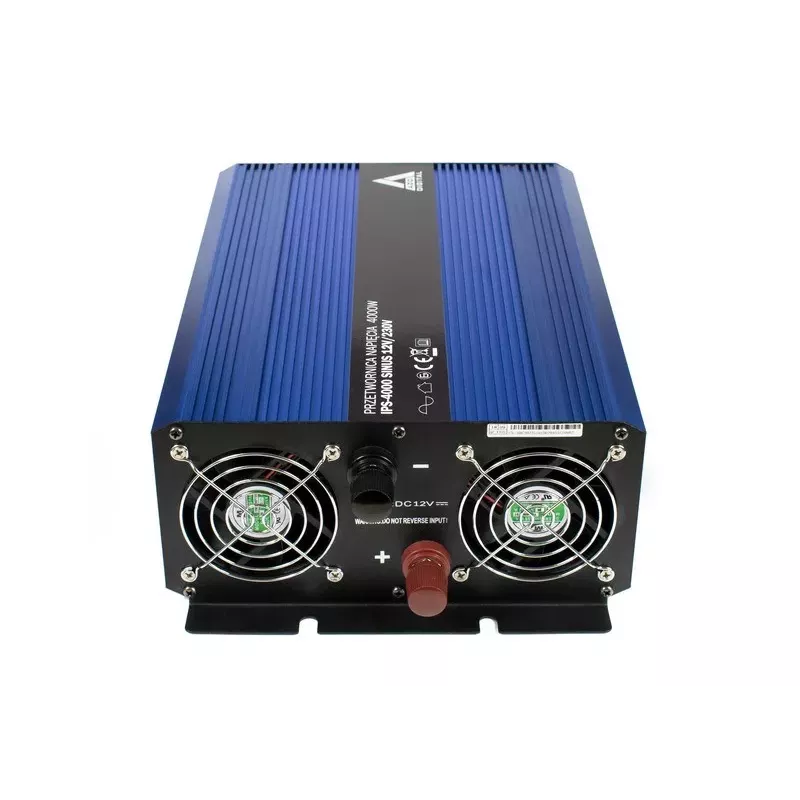

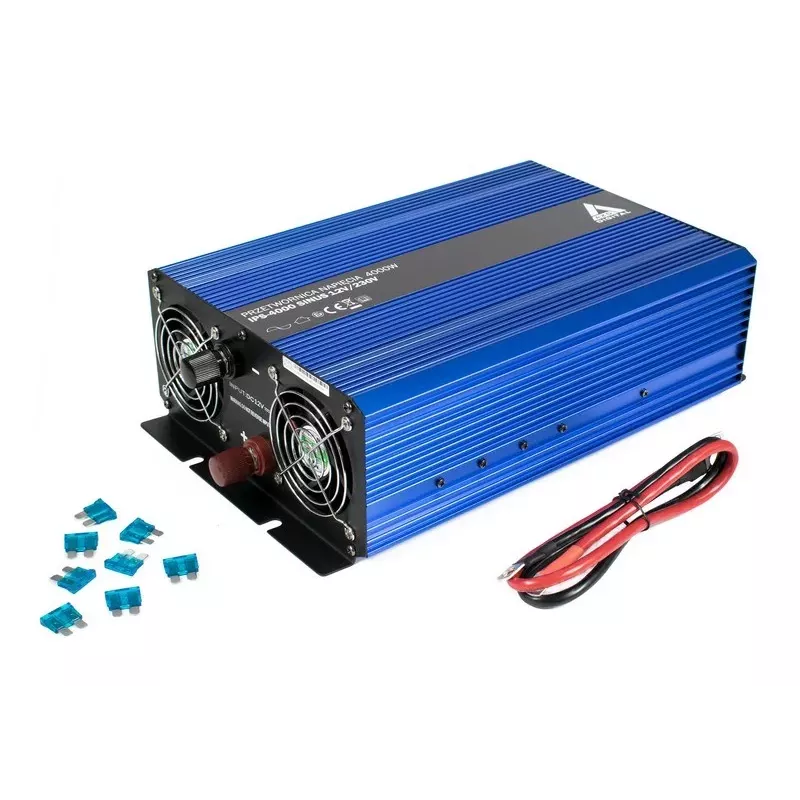

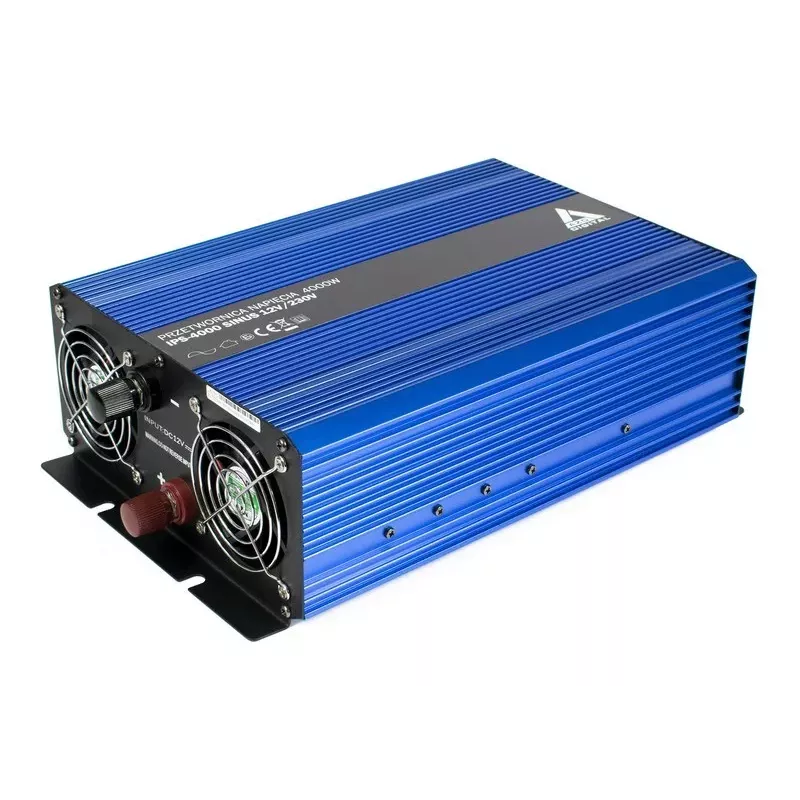

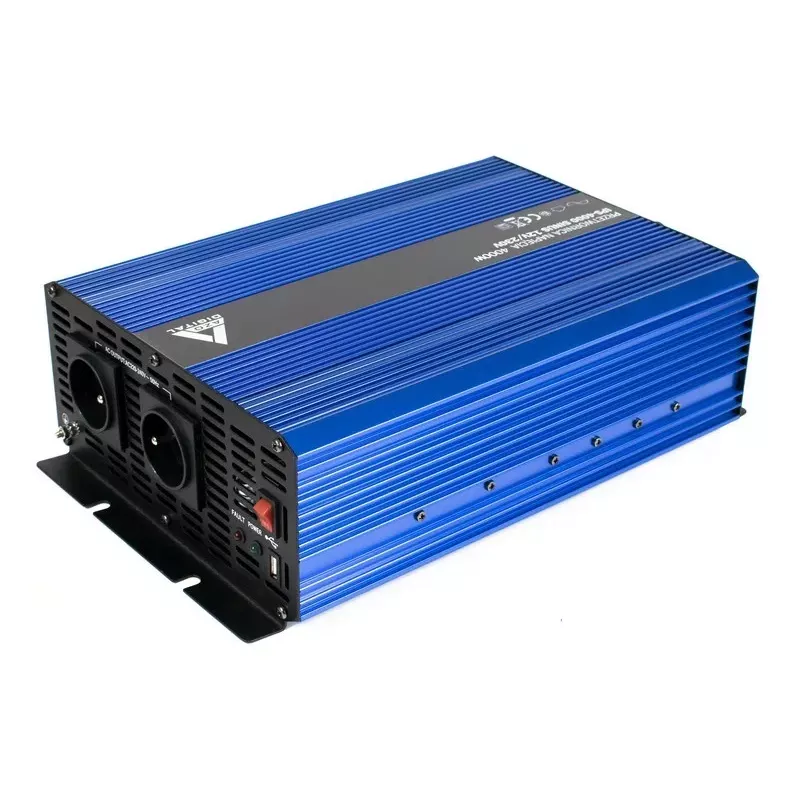

AZO Digital 12 VDC / 230 VAC Converter SINUS IPS-4000S 4000W Pure Sine Wave Inverter

The AZO Digital SINUS IPS-4000S is a high-performance pure sine wave inverter that converts 12V DC to 230V AC, delivering a continuous output of 4000W and a peak power of 8000W. Designed for reliable off-grid power, it is ideal for RVs, boats, solar systems, and backup power applications.

Advantages

Pure sine wave output ensures safe operation of sensitive electronics. High efficiency (>85%) and low no-load current (<1.5A) maximize battery life. Comprehensive protections (overload, short circuit, over-temperature, over-voltage, under-voltage, reverse polarity) provide peace of mind. The LCD display shows real-time voltage, power, and status.

Suitable for

• Off-grid solar systems
• Recreational vehicles (RVs) and caravans
• Marine and boat applications
• Backup power for home or office
• Power tools and appliances

Key specifications

• Input Voltage: 12V DC (range 10.5V - 15.5V)
• Output Voltage: 230V AC
• Continuous Power: 4000W
• Peak Power: 8000W (30 min)
• Output Waveform: Pure Sine Wave
• Output Frequency: 50Hz
• Efficiency: >85%
• No-Load Current: <1.5A

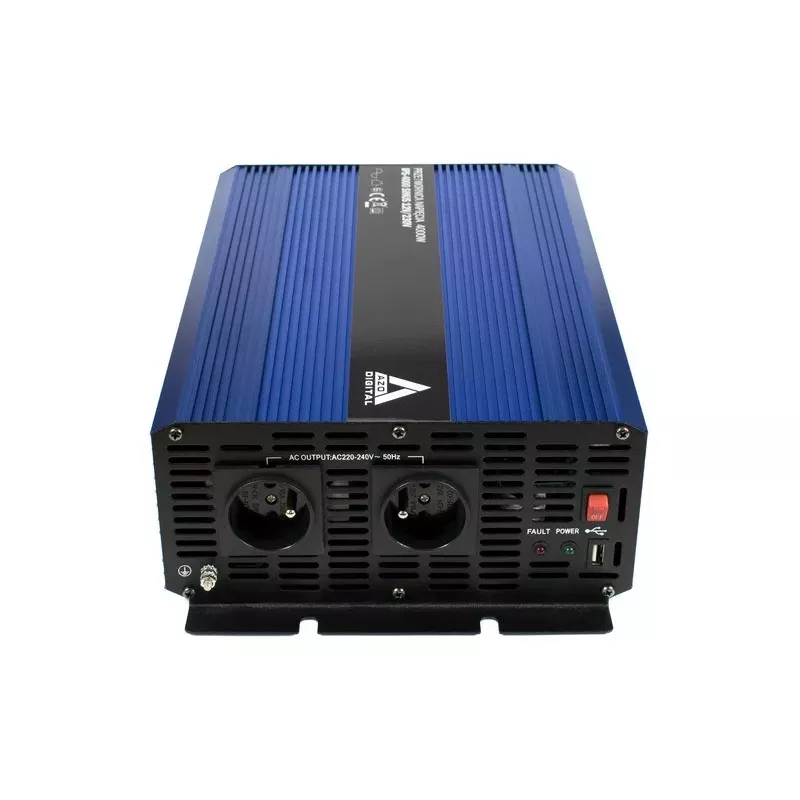

• Output Sockets: 2x Schuko (Type F)
• Cooling: Active fan
• Protections: Overload, short circuit, over-temperature, over-voltage, under-voltage, reverse polarity
• Display: LCD
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and appropriate cable gauge. Ensure adequate ventilation for cooling. This inverter is not suitable for inductive loads exceeding 8000W peak.
