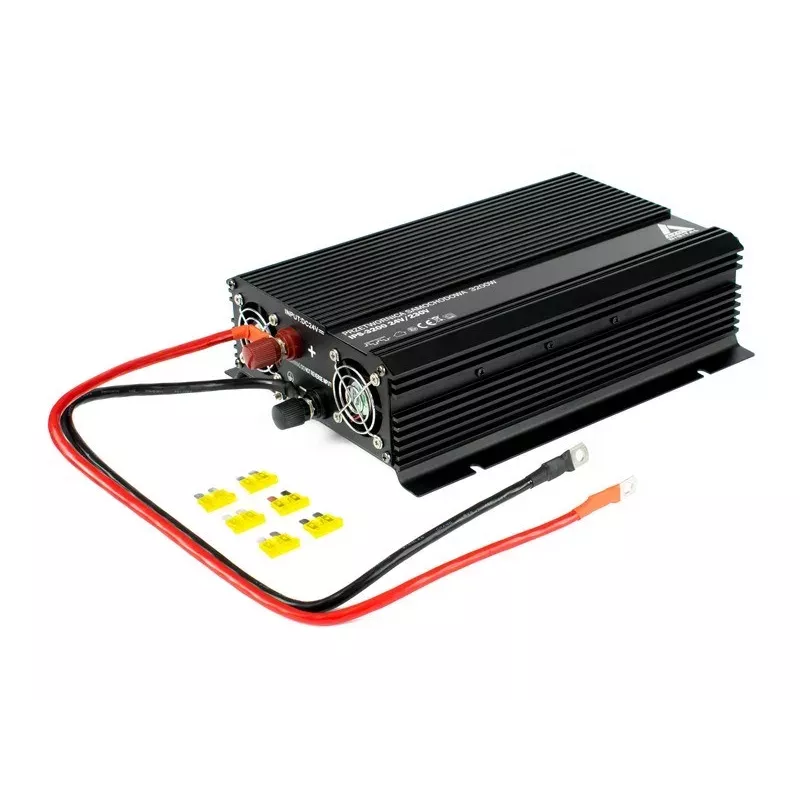

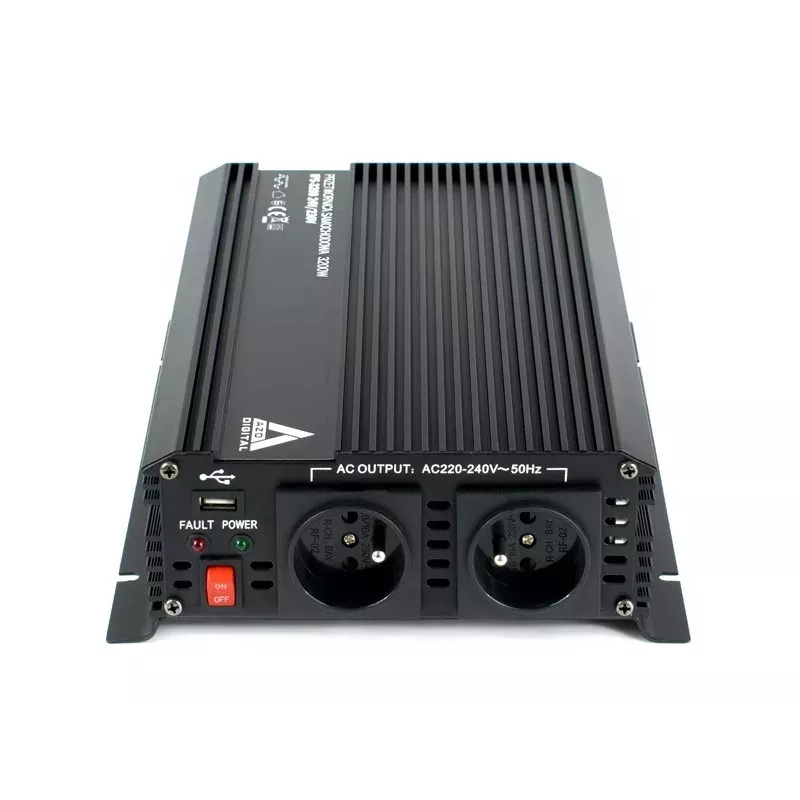

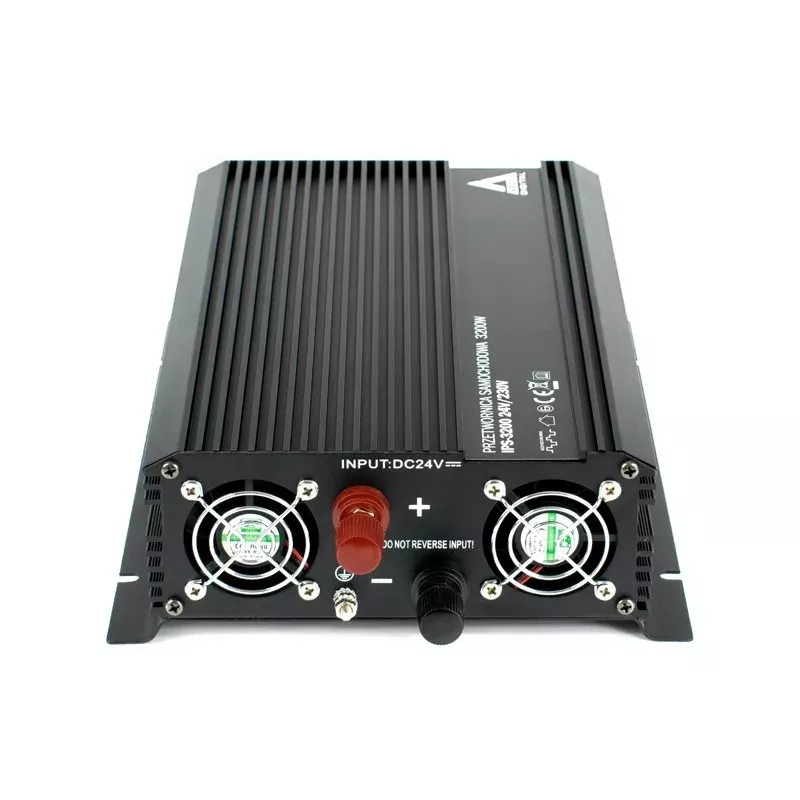

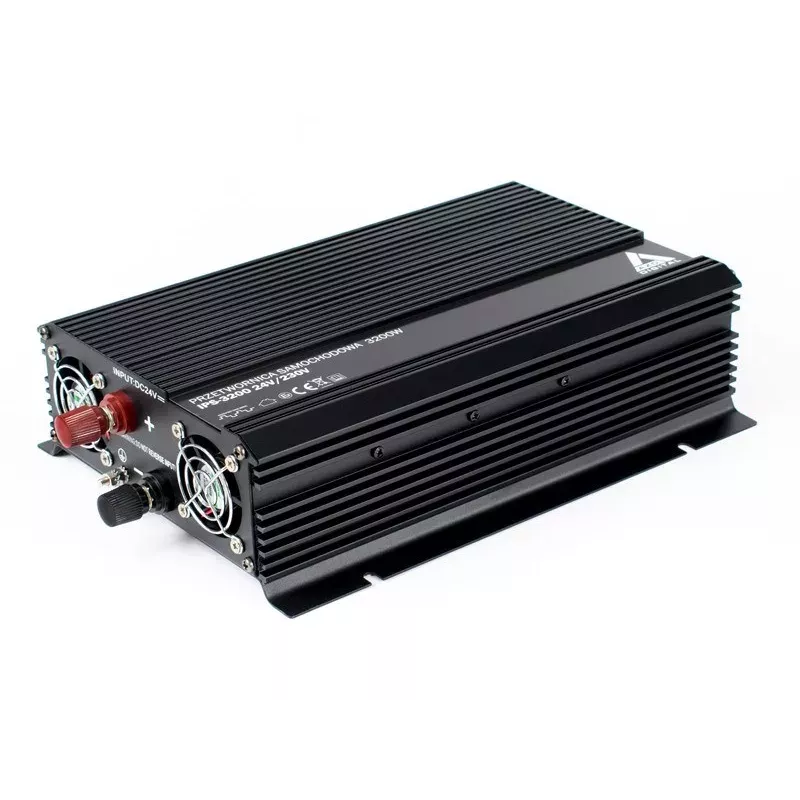

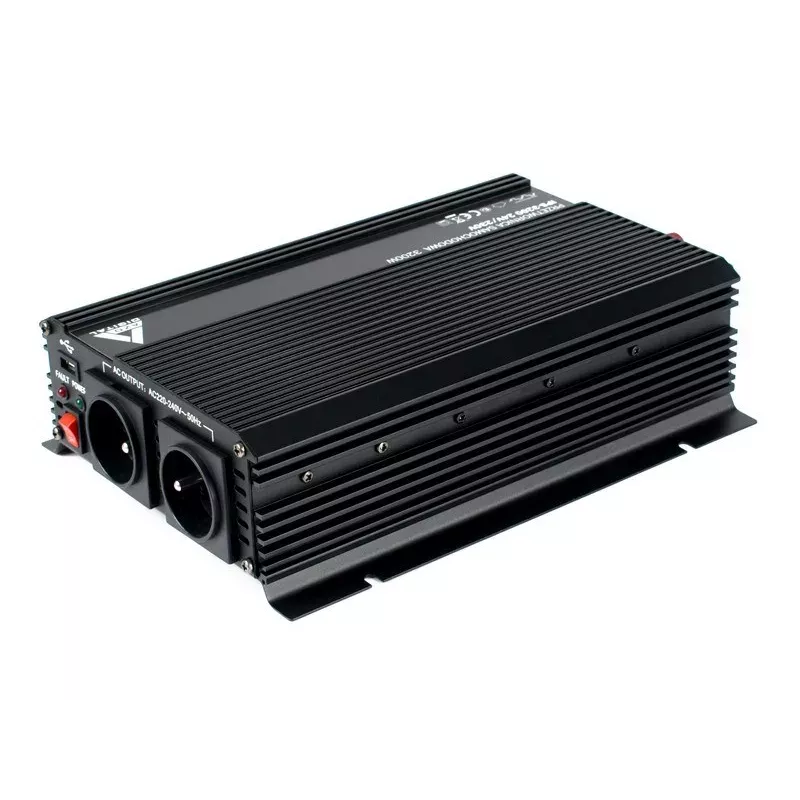

AZO Digital 24 VDC / 230 VAC Automotive Inverter IPS-3200 3200W

The AZO Digital IPS-3200 is a high-performance automotive inverter that converts 24 VDC to 230 VAC, delivering a continuous output of 1600W and a peak of 3200W. Designed for reliable power conversion in vehicles, RVs, boats, and off-grid systems, this inverter features a modified sine wave output, multiple protection mechanisms, and a durable aluminum housing.

Advantages

High efficiency (>92%) minimizes power loss. Active cooling with a fan ensures stable operation even under heavy loads. Comprehensive protections (overload, short circuit, over temperature, low/high voltage) safeguard your devices and the inverter itself. Compact and robust aluminum construction for long-lasting performance.

Suitable for

• Powering household appliances, tools, and electronics in cars, trucks, RVs, and boats
• Backup power for off-grid cabins or mobile workstations
• Charging devices via USB (5V/1A) while on the go

Key specifications

• Input Voltage: 24 VDC (range 21-30 VDC)
• Output Voltage: 230 VAC
• Continuous Power: 1600W
• Peak Power: 3200W
• Output Waveform: Modified Sine Wave
• Frequency: 50 Hz
• Efficiency: >92%
• USB Output: 5V / 1A
• Number of AC Outlets: 2 (Schuko type)
• Protections: Overload, Short Circuit, Over Temperature, Low/High Voltage
• Cooling: Active (Fan)
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS
• Housing Material: Aluminum

Recommendations

Ensure your battery bank can supply sufficient current (at least 160A continuous) for full load. Use appropriate cable gauge (recommended 35mm² or larger) for DC connections. This inverter is not suitable for sensitive electronics requiring pure sine wave; for such devices, consider a pure sine wave model.
