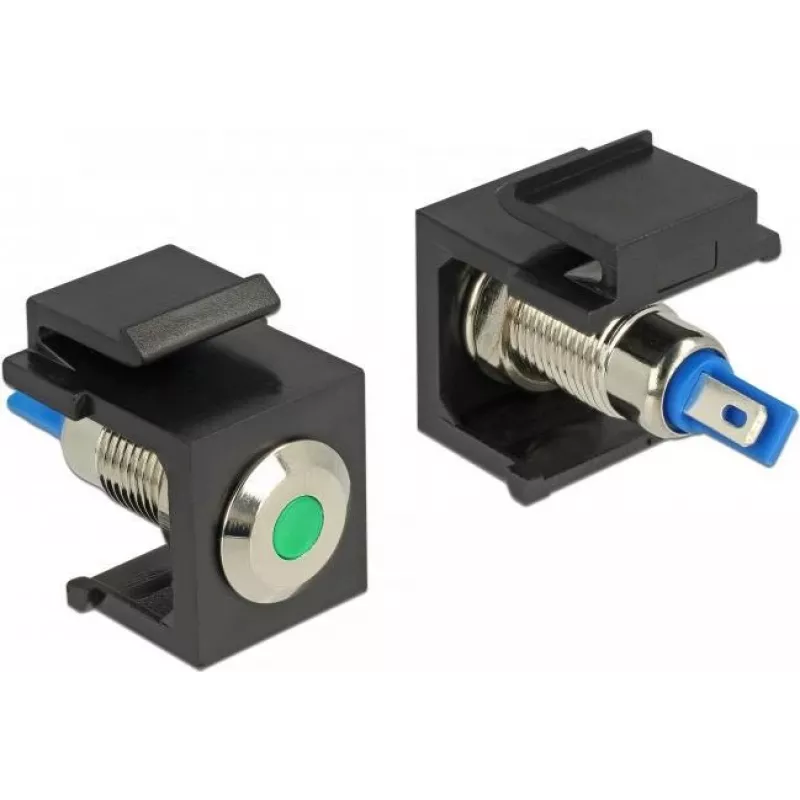

Wire Connector Keystone DeLOCK 86463

The DeLOCK 86463 Wire Connector is a keystone-style LED indicator designed for snap-in installation into housings, patch panels, face plates or surface-mount boxes to indicate different operating states. It is available in black, blue, green and stainless steel finishes and is intended for use with a 6 V DC supply. The connector measures 16.3 mm wide, 27.3 mm deep and 22.3 mm high and is supplied as a single piece in a polybag.

Advantages

This keystone LED module follows standardised keystone dimensions for straightforward snap-in mounting and replacement. The product offers multiple finish options to match panels or housings and operates at a low 6 V DC voltage. Its compact dimensions make it suitable for confined installation spaces.

Suitable for

• Patch panels with keystone cutouts
• Face plates and modular wall plates
• Surface-mount boxes and small housings
• Status indication in devices and enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86463
• EAN: 4043619864638
• Product type: Keystone LED wire connector
• Operating voltage: 6 V DC
• Colours/finishes: Black, Blue, Green, Stainless steel
• Dimensions (W × D × H): 16.3 × 27.3 × 22.3 mm
• Packaging: 1 piece, polybag

How to use

Insert the keystone LED module into a matching keystone cutout until it snaps into place. Connect the LED to a 6 V DC supply according to the device wiring requirements and the LED polarity. Ensure the housing or panel provides sufficient clearance for the 16.3 × 27.3 × 22.3 mm body. For replacement, depress the retaining tabs and pull the module out of the cutout.

Recommendations

Confirm the correct polarity and voltage (6 V DC) before powering the LED. Use appropriate insulation and strain relief for wiring and avoid exposing the module to conditions outside the manufacturer’s intended indoor installation environment.
