Cat.6 Shielded Keystone Jack Toolfree Equip 767211

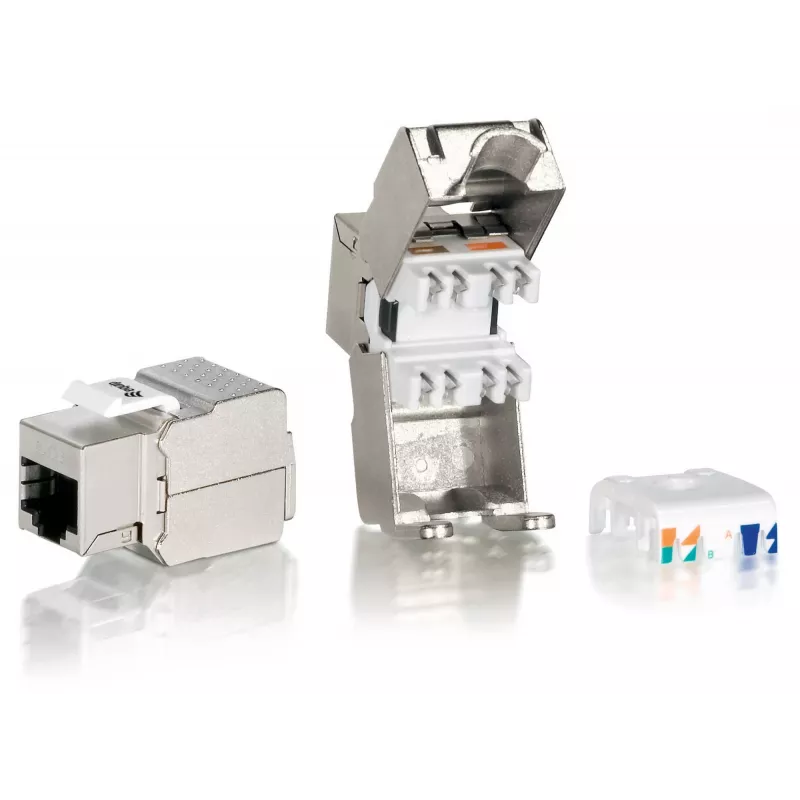

The equip® Cat.6 Shielded Keystone Jack Toolfree (model 767211) is a compact, shielded network connector designed for Cat.6 cabling installations. It features a metallic housing and gold-plated contacts, and is compatible with standard faceplates, wall-mount outlets and patch panels. Certified to ISO/IEC 11801 and EN 50173, it supports high-speed data transmission while keeping electromagnetic interference under control.

Advantages

The tool-free design allows installation without special tools, reducing setup time. Shielded construction and gold-plated contacts improve signal integrity and corrosion resistance. Compact dimensions (18 mm × 24.5 mm × 41 mm) and standard keystone form factor provide compatibility with a variety of mounting panels and faceplates.

Suitable for

• Structured Cat.6 network installations in offices and data closets
• Patch panels and modular faceplates
• Environments requiring reduced electromagnetic interference

Key specifications

• Brand: EQUIP
• Model / MPN: 767211
• Type: Cat.6 Shielded Keystone Jack, tool-free
• Standards: ISO/IEC 11801, EN 50173
• Contacts: Gold-plated
• Housing: Metallic (shielded)
• Dimensions: 18 mm (W) × 24.5 mm (D) × 41 mm (H)
• EAN: 4015867176511

How to use

Insert the Cat.6 cable conductors into the labeled termination slots according to the T568A or T568B colour code, following the keystone jack markings. Press the cable into the slots until the conductors are seated and the internal clamps make contact; no punch-down tool is required. Snap the keystone jack into a compatible faceplate, outlet or patch panel and secure the panel as needed. Verify connectivity and correct pair termination with a network cable tester.

Recommendations

For best performance, use with Cat.6/6A twisted-pair cable and ensure the shield continuity is maintained through proper grounding of the outlet or patch panel. Test each terminated link after installation to confirm signal integrity.
