Keystone module InLine 76202V — dimensions 20×34×15 mm, compact network accessory

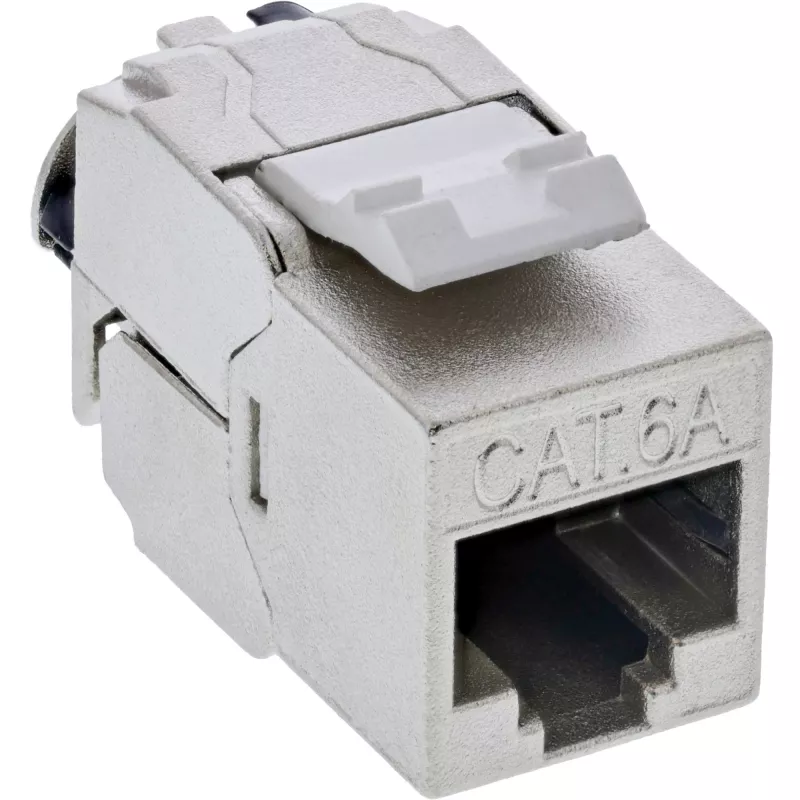

The InLine 76202V keystone module is a compact network accessory designed for modular structured cabling and confined installation spaces. With small outer dimensions and a keystone SNAP-In form factor, it fits in wall plates, patch panels and keystone housings to provide a reliable RJ45 network outlet for Cat6a applications up to 500 MHz.

Advantages

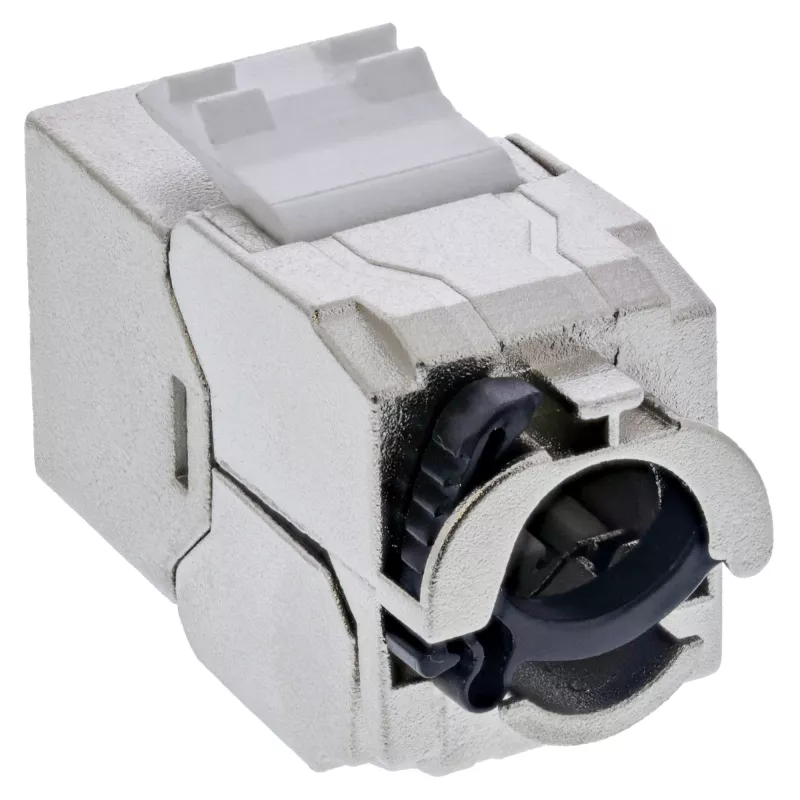

This fully shielded keystone module features a die-cast housing and integrated LSA termination strip, offering mechanical robustness and reliable signal shielding for high-speed Ethernet. The module supports up to 10 Gbit/s and PoE/PoE+ power delivery, while an integrated cable clip and support for rigid installation cables (AWG 22–26) simplify termination and secure cable routing. The SNAP-In design enables fast mounting into standard keystone openings.

Suitable for

• Patch panels and 19" empty panel installations
• Wall plates and telecommunication outlets in small spaces
• Modular network sockets for offices, server rooms and industrial enclosures

Key specifications

• Category: Cat.6a, up to 500 MHz
• Data rate: up to 10 Gbit/s
• Connector: RJ45 socket, keystone SNAP-In module
• Shielding: fully shielded (metal die-cast housing)
• Termination: LSA strip termination
• Cable compatibility: rigid installation cables AWG 22–26, outer diameter 6.0–8.5 mm
• Mechanical durability: designed for 750 mating cycles
• Power over Ethernet: supports PoE and PoE+
• Mounting: suitable for 19" empty panels, junction boxes and keystone housings
• Physical dimensions (approx.): width 20 mm × depth 34 mm × height 15 mm

How to use

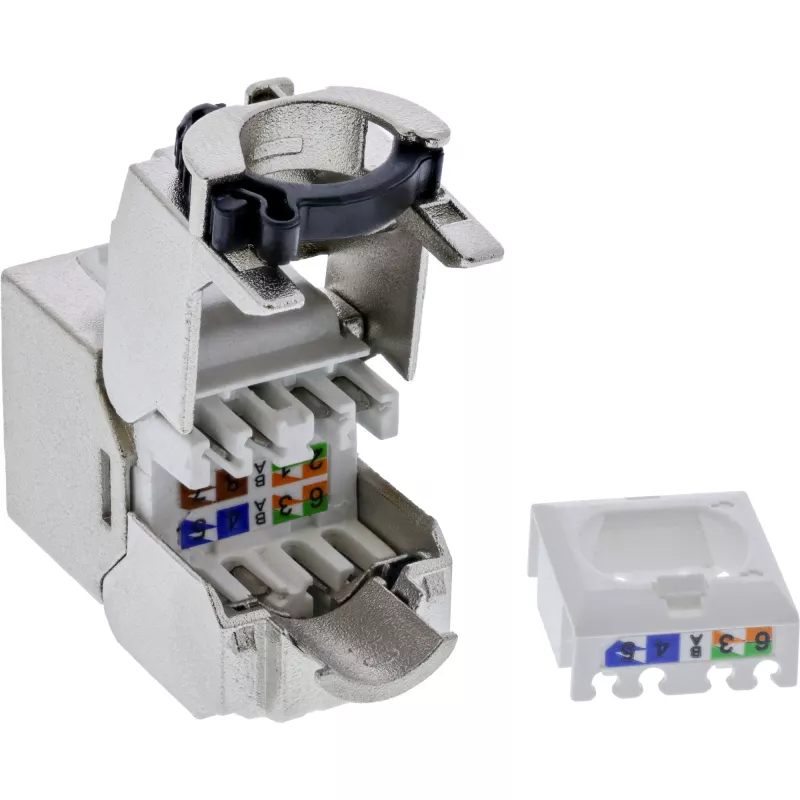

Terminate the individual conductor pairs on the LSA strip according to the applicable wiring standard, secure the cable with the integrated cable clip and snap the module into the keystone opening of a wall plate, patch panel or junction box. Ensure the installation cable falls within the supported AWG range and outer diameter, and check shield continuity when connecting to shielded outlets or panels. After mounting, verify link and PoE functionality with appropriate testing tools.

Recommendations

For reliable high-speed performance, use Cat6a cabling and follow correct pair termination and shielding practices. Verify compatibility of the keystone opening and panel cut-out before installation and perform network tests after assembly to confirm signal integrity and PoE delivery.
