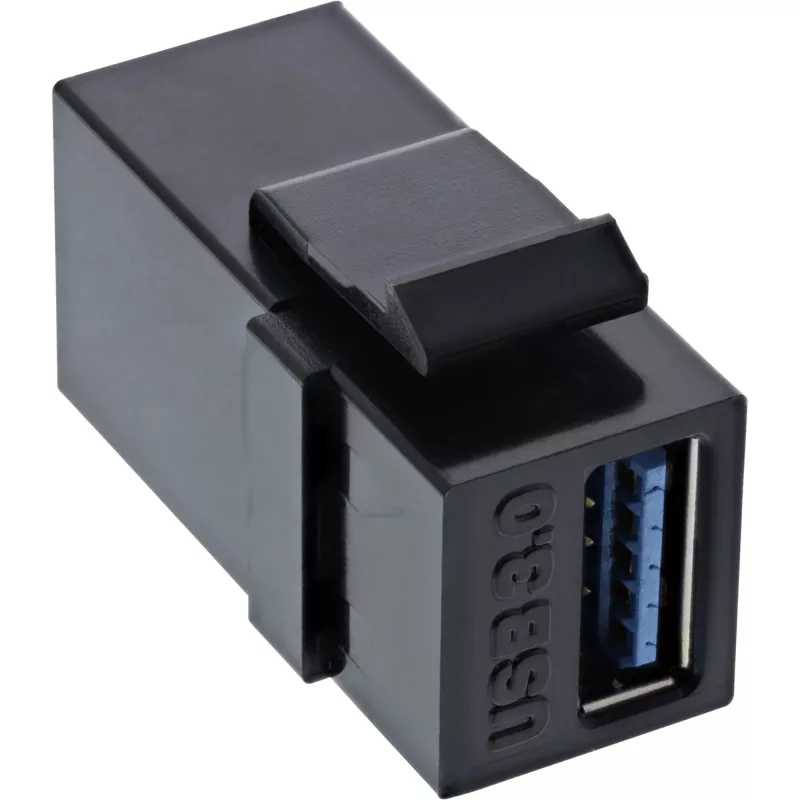

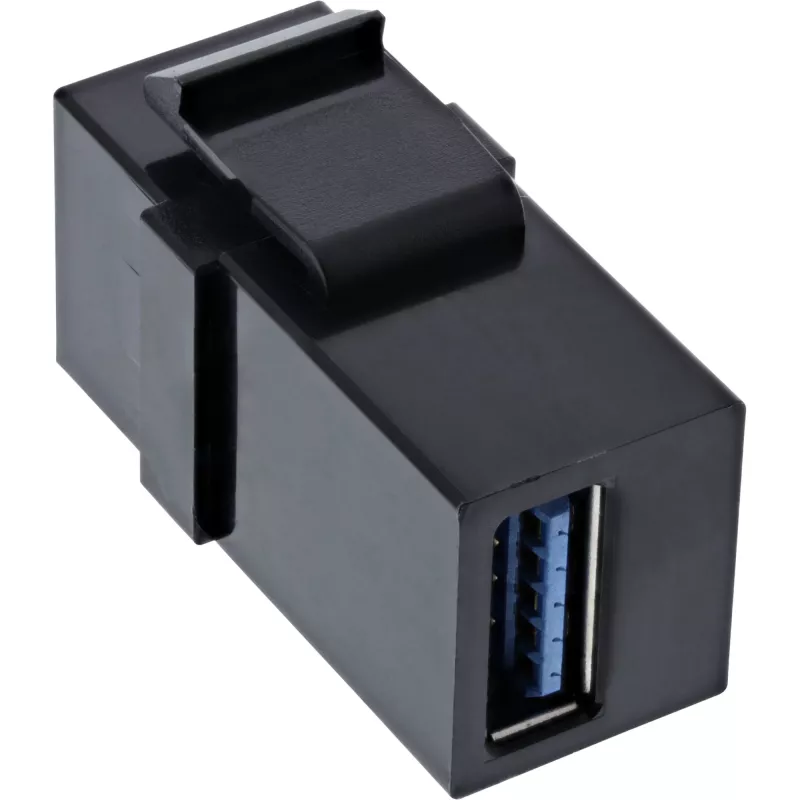

InLine USB 3.1 Snap-In module, USB-A F/F, black housing

The InLine USB 3.1 Snap-In module InLine 76202L is a compact panel-mount module featuring a USB-A female connector in a black housing. Designed for straightforward installation into compatible panels or enclosures, the module provides a standard USB Type-A interface and supports USB 3.1 (Gen 1) data transfer rates (also referred to as USB 3.2 Gen 1). Its streamlined design and durable black casing make it suitable for professional installations where a flush, reliable USB connection is required.

Advantages

The module offers a USB-A female connector that conforms to USB 3.1 (Gen 1) signalling for high-speed data transfer while maintaining backward compatibility with USB 2.0 devices. Its snap-in form factor enables easy, tool-minimal installation into panels and enclosures. The black housing provides a discreet, professional appearance and mechanical protection for the connector.

Suitable for

• Adding a flush USB Type-A port to equipment panels and instrument enclosures
• Replacing or upgrading existing front-panel USB A female connectors
• Office workstations, AV racks, and kiosk installations requiring a durable USB-A interface
• Environments where simple snap-in mounting reduces assembly time

Key specifications

• Connector type: USB-A female (USB 3.1/USB 3.2 Gen 1 compatible)
• USB version supported: USB 3.2 Gen 1 (also known as USB 3.1 Gen 1)
• Form factor: snap-in panel module
• Housing colour: black

How to use

Insert the snap-in module into a compatible cutout in a panel or enclosure until the retention features engage and the module sits flush with the panel surface. Connect a standard USB Type-A cable to the female connector to link peripheral devices or host systems. Ensure the mating cable and connected devices conform to the supported USB version to achieve expected data rates. For secure mounting, verify panel thickness and cutout dimensions match the module requirements before installation.

Recommendations

Use compatible USB 3.1 (Gen 1) or USB 2.0 Type-A cables depending on device requirements. Avoid excessive mechanical strain on the connector by securing attached cables and keeping the surrounding panel area clear of obstructions. For reliable high-speed transfers, use shielded cables and ensure proper grounding of equipment.
