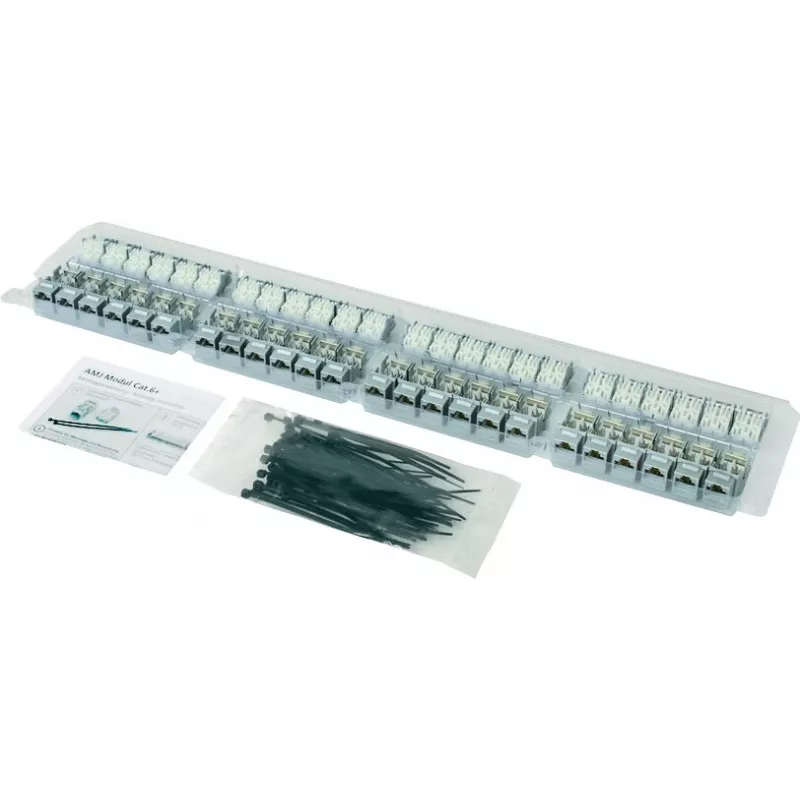

Telegärtner AMJ-Modul K Cat.6a Keystone Jack, T568A, Shielded, 24-Pack

The Telegärtner AMJ-Modul K Cat.6a is a shielded keystone jack engineered for high-performance 10 Gigabit Ethernet networks. Its tool-free termination and robust die-cast zinc housing deliver reliable, future-proof connectivity in demanding installations.

Advantages

This module supports frequencies up to 500 MHz and complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards. Gold-plated contacts ensure long-term signal integrity, while the shielded design provides excellent protection against electromagnetic interference. The tool-free IDC termination speeds up installation without compromising connection quality.

Suitable for

• Data centers and server rooms requiring 10GBASE-T performance
• Structured cabling systems in office and industrial environments
• PoE applications up to 4PPoE (IEEE 802.3bt Type 4)
• Keystone-compatible patch panels, wall plates, and surface mount boxes

Key specifications

• Category: Cat.6a (Class EA)
• Wiring scheme: T568A
• Shielding: Shielded (STP/FTP)
• Connector type: RJ45 (8P8C)
• Termination: Tool-free IDC
• Frequency bandwidth: Up to 500 MHz
• Data rate: Up to 10 Gbps
• Housing: Die-cast zinc
• Contact material: Gold-plated phosphor bronze
• Mating cycles: >750
• Operating temperature: -40°C to +70°C
• Packaging quantity: 24 pieces

Recommendations

For optimal performance, pair with Telegärtner Cat.6a patch cables and patch panels. Ensure proper grounding of the shielded system to maximize EMI protection.
