Wire Connector Keystone LED DeLOCK 86456

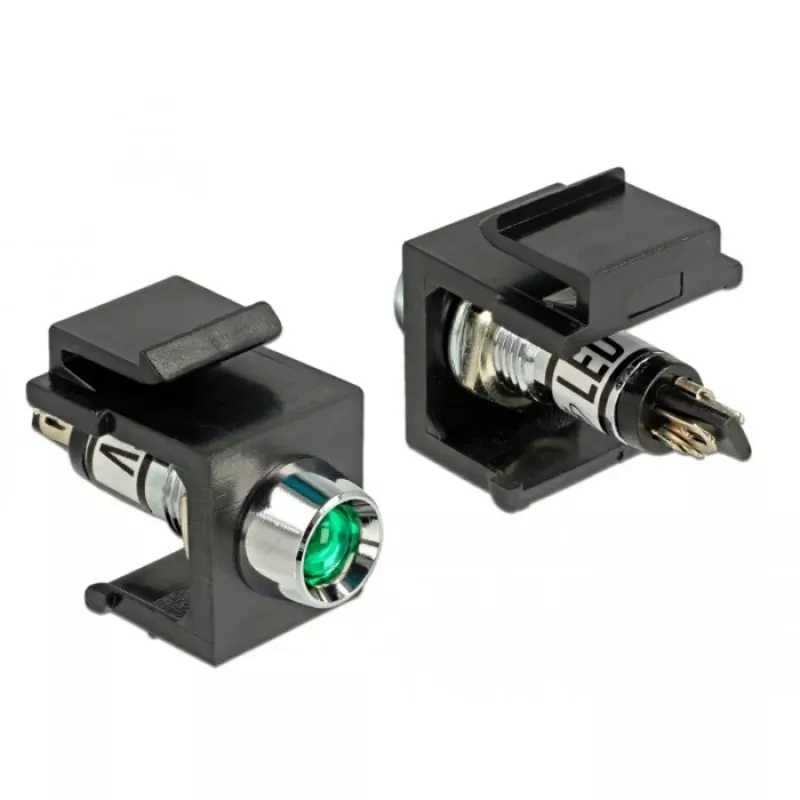

The Wire Connector Keystone LED DeLOCK 86456 is a keystone-mount LED indicator designed for snap-in installation in housings, patch panels, faceplates or surface-mount boxes to indicate different operating states. It has a black and green finish with stainless steel accents and is supplied as a single unit in a polybag. The LED operates at 6 V DC and the module measures 16.3 mm (W) × 29 mm (D) × 22.3 mm (H).

Advantages

This Keystone LED offers standardized keystone dimensions for easy snap-in mounting, clear state indication at low voltage (6 V DC), and a compact footprint suitable for confined installation spaces. The painted black and green finish with stainless steel detailing provides a visible, durable indicator while the single-piece polybag packaging simplifies handling and storage.

Suitable for

• Patch panels and keystone faceplates
• Device or housing front panels for status indication
• Surface-mount boxes and small enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86456
• EAN: 4043619864560
• Type: Keystone LED indicator
• Operating voltage: 6 V DC
• Finish: black, green, stainless steel
• Dimensions (W × D × H): 16.3 × 29 × 22.3 mm
• Packaging: 1 piece, polybag

How to use

Insert the Keystone LED into a compatible keystone opening until it snaps into place. Connect the LED to a 6 V DC supply observing correct polarity and any device-specific wiring instructions. Use the module as a status indicator for power, signal or fault states as required by the application. Ensure the receiving panel or enclosure provides a matching keystone aperture for secure mounting.

Recommendations

Verify the 6 V DC supply and correct polarity before powering the LED. Avoid exceeding the specified voltage and provide strain relief to wiring to prevent mechanical stress on the keystone module.
