Wire Connector Keystone DeLOCK 86461

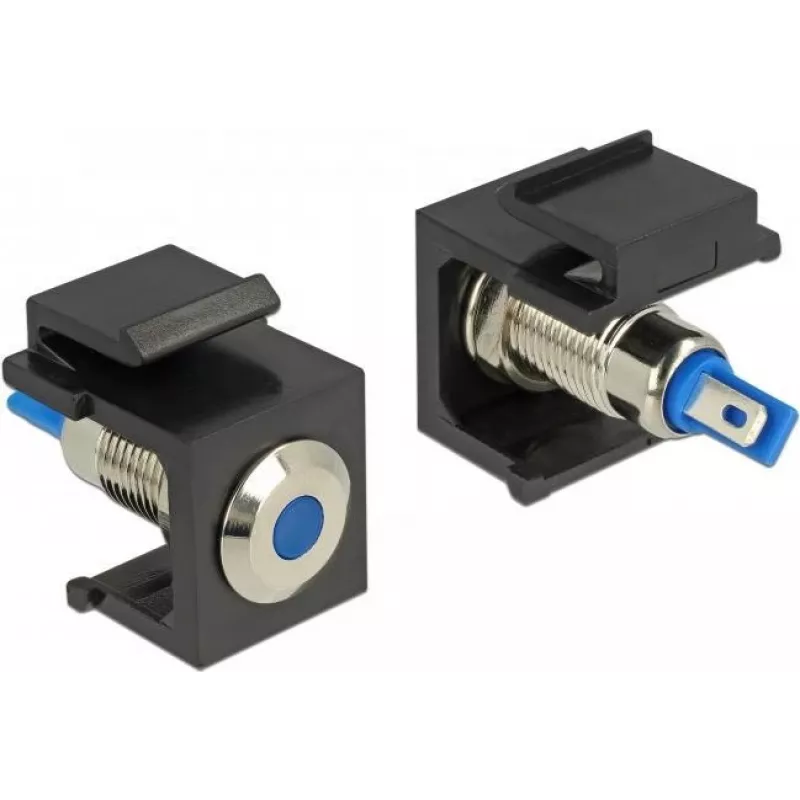

The DeLOCK 86461 Keystone LED is designed for installation in housings or devices to indicate different operating states. With standardised Keystone dimensions and a compact form factor, it fits typical keystone patch panels, face plates or surface-mount boxes. The unit has a black, blue and stainless steel finish, operates at 6 V DC and is supplied as a single piece in a polybag.

Advantages

The Keystone LED offers snap-in mounting compatibility with common Keystone openings and a compact footprint (16.3 mm × 27.3 mm × 22.3 mm). Its standardised design simplifies installation in patch panels, face plates and surface-mount boxes. The three-colour finish provides clear visual contrast and the 6 V DC rating matches low-voltage indicator circuits.

Suitable for

• Indicator in network patch panels
• Status signalling on face plates
• Visual indication in surface-mount boxes or housings

Key specifications

• Model: DeLOCK 86461
• Type: Keystone LED indicator
• Operating voltage: 6 V DC
• Dimensions (W × D × H): 16.3 mm × 27.3 mm × 22.3 mm
• Colour/finish: Black, blue, stainless steel
• Packaging: 1 piece per polybag
• Category: Cable interface and gender adapters

How to use

Insert the Keystone LED into a compatible keystone opening until it snaps into place. Connect the LED to a suitable 6 V DC indicator circuit following the device wiring and polarity. Ensure the housing or panel provides access to the LED for visibility of the operating states. For replacement, disengage the snap-in mount and remove the unit before installing a new module.

Recommendations

Verify compatibility of the keystone footprint and available depth in the panel or housing before installation. Use proper wiring practices and confirm the 6 V DC supply to avoid damage. Store the unit in a dry environment and handle the stainless steel finish with appropriate care to avoid scratches.
