Keystone module DeLOCK 86307

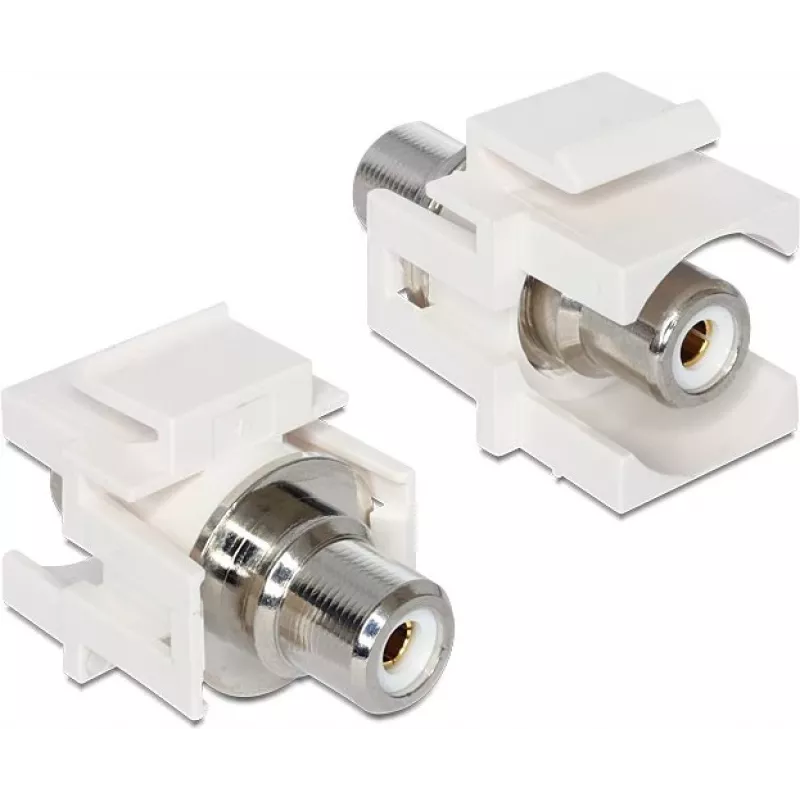

The DeLOCK 86307 keystone module provides an RCA (Cinch) female-to-female connection in a compact keystone form factor for easy insertion into keystone patch panels, wall plates or housings. Its standardized dimensions allow snap-in mounting in compatible keystone holders and it is suitable for extending or routing audio and video coax connections in home or professional installations.

Advantages

The module offers a female RCA to female RCA connection in a compact 19.2 x 14.9 mm keystone footprint, enabling tool-free snap-in installation. The white colour ensures a neutral appearance in patch panels and wall plates, while the small overall dimensions (33.2 x 18.0 x 22.3 mm) save space in multi-port assemblies.

Suitable for

• Extending or joining RCA audio/video coaxial cables
• Integration into keystone patch panels and wall plates
• Custom AV installations in home theaters, studios, or commercial racks

Key specifications

• Connectors: RCA (Cinch) female → RCA (Cinch) female
• Keystone cutout size: 19.2 x 14.9 mm
• Dimensions (L x W x H): 33.2 x 18.0 x 22.3 mm
• Product colour: White
• Brand: DELOCK, MPN: 86307, EAN: 4043619863075

How to use

Press the keystone module into a compatible keystone opening until it snaps into place. Connect RCA cables to the female RCA jacks on both sides to extend or join audio/video signals. To remove, gently pry the module from the housing using a flat tool or by pressing any release latch on the keystone holder if available.

Recommendations

Use the module only in compatible keystone frames and wall plates sized for a 19.2 x 14.9 mm keystone opening. Ensure connectors are clean and cables are properly seated to maintain signal quality. Avoid excessive bending or strain on connected cables.
