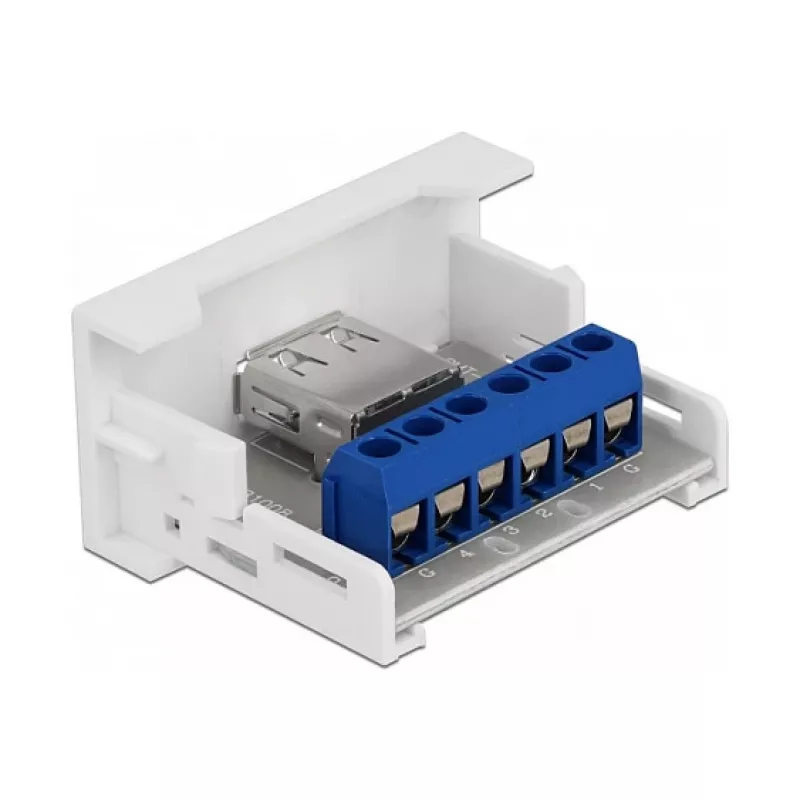

USB 2.0 Type-A Female to Terminal Block DeLOCK Easy 45 Module

The DeLOCK Easy 45 module provides a USB 2.0 Type-A female port in a compact modular format. The module measures 45 x 22.5 mm with a height of 33 mm and is finished in white. Its snap-in mechanism secures the module in compatible Easy 45 holders or cable ducts while allowing easy removal when required. Easy 45 is a standardised modular system that connects electrical and network installations to peripherals such as TVs, monitors, printers and laptops.

Advantages

The module offers a standard USB 2.0 Type-A female interface for straightforward peripheral connection and reliable data transfer. Its compact 45 x 22.5 mm form factor and snap-in mounting enable flexible installation in established Easy 45 module holders or cable ducts. The white finish provides a neutral appearance suitable for many installation environments.

Suitable for

• Integrating USB 2.0 Type-A connections into modular wall or furniture panels
• Connecting peripherals such as printers, external drives or input devices via terminal block adapters
• Use in AV cabinets, office workstations and meeting rooms with Easy 45 systems
• Environments requiring standardised, replaceable I/O modules

Key specifications

• Connector: USB 2.0 Type-A female
• System: DeLOCK Easy 45 modular system
• Dimensions: 45 x 22.5 mm, height 33 mm
• Colour: White
• Packaging: single unit

How to use

Insert the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism clicks to secure it. Connect the internal terminal block or wiring according to your installation requirements to provide a USB Type-A female port at the panel face. To remove, press or release the snap-in latch and pull the module out of the holder.

Recommendations

Use the module only with compatible Easy 45 holders and follow local wiring regulations when connecting terminal blocks. Verify USB 2.0 compatibility of attached devices for optimal performance.
