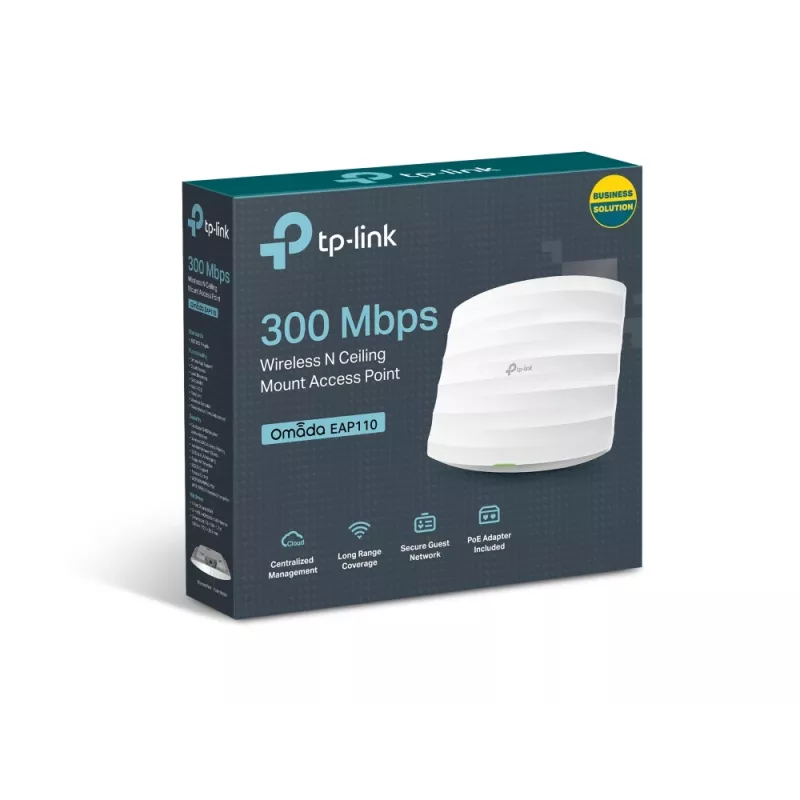

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

The TP-Link Omada EAP110 is a ceiling- and wall-mountable access point that provides up to 300 Mbps on the 2.4 GHz band. Designed for flexible placement, its slim white chassis integrates with most interiors and supports Passive PoE for simplified power and network cabling. The EAP110 is compatible with Omada centralized management (OC200 and Software Controller) for real-time monitoring and remote access, and includes captive portal options with Facebook and SMS authentication for guest networks. It supports security standards such as WPA2-Enterprise and common wireless networking protocols.

Advantages

The EAP110 offers easy mounting and discreet design for ceiling or wall installation, Passive PoE support to reduce wiring complexity, and centralized cloud management via Omada controllers for convenient network oversight. Its captive portal with social and SMS authentication enables controlled guest access, while the Omada mobile app allows setup and monitoring from a smartphone or tablet.

Suitable for

• Small offices and retail spaces requiring controlled guest Wi‑Fi
• Home networks needing extended 2.4 GHz coverage
• Locations where ceiling or wall mounting is preferred for discreet deployment

Key specifications

• Model: TP-Link Omada EAP110 (MPN: EAP110, EAN: 6935364091620)
• Wireless band: 2.4 GHz
• Maximum data rate: 300 Mbps
• Antennas: 2 internal antennas
• Ethernet ports: 1 × RJ-45
• Power: Passive PoE support
• Supported standards: IEEE 802.11b/g/n, IEEE 802.1x
• Color: White

How to use

Mount the EAP110 on a ceiling or wall using the included chassis and hardware, then connect a network cable to the RJ-45 port. If using Passive PoE, connect to a compatible PoE injector or switch to supply power and network over a single cable. Configure the device using Omada Software Controller, OC200 hardware controller, or the Omada mobile app; follow the on-screen setup steps to define SSIDs, security settings (for example WPA2-Enterprise), and guest portal options.

Recommendations

For best coverage, install the access point centrally in the target area and avoid placing it near large metal objects or sources of interference. Use the Omada controller for regular firmware updates and centralized monitoring to maintain security and performance.
