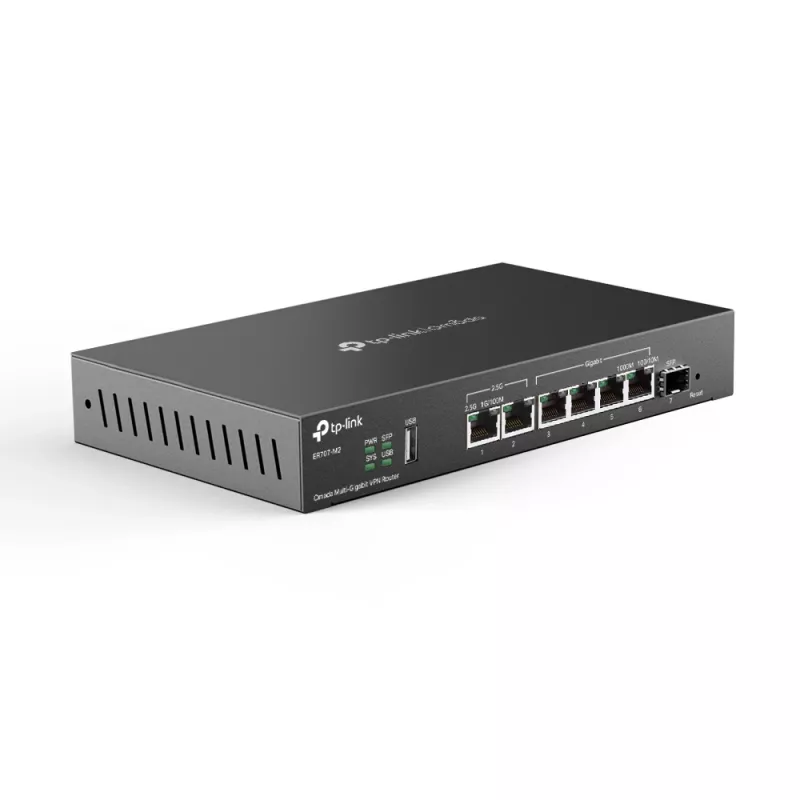

TP-Link Omada Multi-Gigabit VPN Router

TP-Link Omada Multi-Gigabit VPN Router
TP-Link Omada Multi-Gigabit VPN Router
60 mo.
TP-Link Omada Multi-Gigabit VPN Router
TP-Link Omada Multi-Gigabit VPN Router
R3,684
Description The TP-Link Omada Multi-Gigabit VPN Router supports IEEE networking standards and offers Ethernet interfaces with data rates of up to 2500 Mbit/s. It features robust ... Read More
Stock 11 Code 9110 Brand TP-LINK Model ER707-M2 Warranty 5 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Description

The TP-Link Omada Multi-Gigabit VPN Router supports IEEE networking standards and offers Ethernet interfaces with data rates of up to 2500 Mbit/s. It features robust security algorithms including AES encryption and supports various network protocols such as OpenVPN and IPSec. With 128 MB flash memory and 1000 MB DDR4 RAM, it ensures efficient performance for your networking needs. Compliance with CE, FCC, and RoHS standards guarantees quality and safety.

ER707-M2 router provides dual 2.5 Gbps LAN ports and multiple WAN options to support high-speed networking in dense environments such as retail stores, hotels, offices, and home workplaces. It integrates up to six WAN ports (SFP and RJ45) plus a USB 2.0 port for mobile broadband backup, supports a variety of VPN protocols and a hardware VPN engine, and is compatible with Omada SDN for centralized cloud management. The device also includes user access controls, captive portal authentication, and can be managed locally through the web UI or remotely via the Omada app.

Advantages

Dual 2.5 Gbps ports deliver increased local throughput for bandwidth-intensive tasks and multiple users. Six WAN ports with SFP/RJ45 support and a USB WAN option provide flexible and redundant internet access, while multi-WAN load balancing improves utilization across lines. Built-in support for SSL, GRE, IPSec, PPTP and L2TP plus a hardware VPN engine enhances secure remote connectivity and VPN performance. Integration with Omada SDN enables centralized cloud management, and the Omada app offers guided setup and ongoing monitoring from mobile devices. Access control features including IP/MAC/URL filtering, ACL and captive portal allow precise management of user permissions and network resources.

Key specifications

  • Dual 2.5 Gbps LAN ports
  • Up to 6× WAN ports (SFP and RJ45)
  • USB 2.0 port for 4G/3G modem (LTE WAN backup)
  • Supported VPN protocols: SSL, GRE, IPSec, PPTP, L2TP
  • Hardware VPN engine to boost performance
  • Multi-WAN load balancing
  • Access control: IP/MAC/URL filtering and ACL
  • Captive Portal authentication
  • Compatible with Omada SDN; Web UI and Omada app management

How to use

Connect your internet lines to the available WAN SFP or RJ45 ports and, if required, plug a 4G/3G modem into the USB 2.0 port for LTE backup. Use the web UI for standalone configuration or adopt the Omada SDN controller for centralized management. The Omada mobile app walks you through initial setup and lets you monitor status and manage clients. Configure VPN tunnels and security policies via the router interface, and apply IP/MAC/URL filters, ACLs or captive portal settings to control user access and allocate network resources.

Recommendations

For stable performance in multi-user or business environments, connect critical services to the 2.5 Gbps LAN ports and enable multi-WAN load balancing. Use the hardware VPN engine for site-to-site or remote-access VPNs and set up captive portal authentication for guest access.
Key Highlights
  • Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity
  • Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband
  • Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH
  • Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more
  • Centralized Management: Cloud access and Omada app provide the utmost in management convenience
  • Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions
  • Ethernet WAN SFP WAN
  • IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
  • 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
  • Web-based management
  • DHCP client DHCP server
  • 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Specifications
AC adapter included
Yes
Access Control List (ACL)
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Depth
131 mm
DHCP client
Yes
DHCP server
Yes
DMZ support
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports
6
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Ethernet WAN
Yes
Flash memory
128 MB
Height
35 mm
Housing material
Steel
ICMP attack prevention
Yes
Installed SFP modules quantity
1
Internal memory
1000 MB
Internal memory type
DDR4
LED indicators
LAN, Link, Power, Speed, System, USB, WAN
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Network address translation (NAT)
Yes
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Output current
1.5 A
Output voltage
12 V
Package depth
323 mm
Package height
73 mm
Package weight
1.1 kg
Package width
242 mm
Policy-based routing
Yes
Power source type
DC
Product colour
Black
Quick installation guide
Yes
Reset button
Yes
Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
SFP WAN
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Supported network protocols
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Sustainability compliance
Yes
System event log
Yes
Throughput
1.44 Gbit/s
Universal Plug and Play (UPnP)
Yes
URL filtering
Yes
USB ports quantity
1
USB version
2.0
VLAN support
Yes
VPN tunnels quantity
66
Wall mountable
Yes
WAN ports quantity
1
WAN/Ethernet LAN ports quantity
6
Web-based management
Yes
Width
226 mm
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Leaflet

Open Leaflet

Document

Open Document

Document

Open Document

Document

Open Document

Document

Open Document
