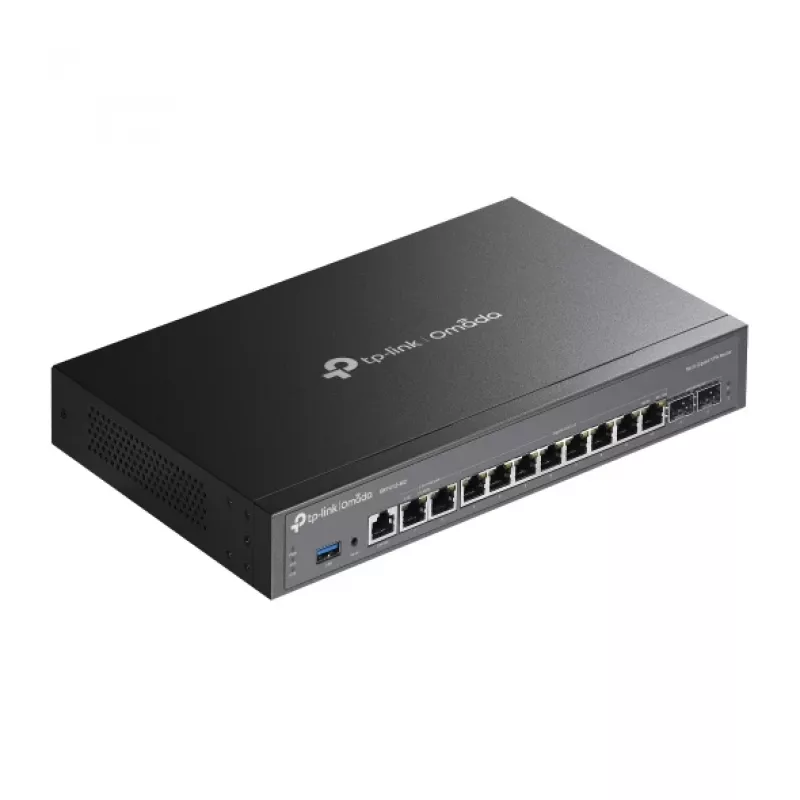

Wired Router TP-Link ER7412-M2

The TP-Link ER7412-M2 wired router provides multi-gigabit wired connectivity with a combination of 2.5 Gigabit Ethernet and Gigabit Ethernet ports designed for small offices, branch locations and demanding home networks. It supports established Ethernet standards including IEEE 802.1Q for VLAN tagging and IEEE 802.3 for wired connectivity, and integrates security algorithms such as AES and SHA to support encrypted tunnels and integrity verification. With 1024 MB DDR4 RAM and 128 MB flash memory, the device is built to handle routing, firewalling and VPN tasks while maintaining steady throughput. The unit accepts a wide AC input voltage range and its maximum power consumption is rated at 18.5 W.

Advantages

The ER7412-M2 delivers reliable wired performance with multi-gigabit port capability and compatibility with common Ethernet standards for flexible deployment. Sufficient DDR4 memory and flash storage support concurrent sessions and feature sets such as VPN, firewall rules and traffic management without significant slowdowns. Built-in cryptographic support (AES, SHA) enhances secure remote access and encrypted site-to-site links. A modest maximum power draw and support for a wide AC input range make the router suitable for continuous operation in diverse electrical environments.

Suitable for

• Small and medium office wired networks requiring multi-gigabit uplinks
• Branch or satellite locations that need secure VPN connectivity
• Networks that require VLAN segmentation and traffic isolation
• Environments where stable, always-on wired routing is needed

Key specifications

• Ports: combination of 2.5 Gigabit Ethernet and multiple Gigabit Ethernet ports
• Memory: 1024 MB DDR4 RAM; 128 MB flash storage
• Supported standards: IEEE 802.1Q (VLAN), IEEE 802.3 (Ethernet)
• Security algorithms: AES and SHA for encryption and integrity
• Power: wide AC input voltage support; maximum power consumption 18.5 W
• Form factor: wired desktop/router appliance

How to use

Place the router on a stable surface with adequate ventilation and connect the WAN and LAN devices to the appropriate Ethernet ports using shielded network cables where possible. Apply power from a compatible AC source within the supported input voltage range. Access the device management interface via a web browser or supported management tool to configure basic network settings: assign WAN connection type, configure LAN IP ranges and set up VLANs if required. Enable firewall rules and VPN profiles using the built-in security options (AES, SHA) to protect traffic and remote connections. Save configuration and, if available, schedule regular backups of the device configuration to external storage.

Recommendations

Use Cat5e or Cat6 cables for Gigabit links and Cat6a or better for reliable 2.5Gbps performance. Keep firmware up to date and apply recommended security settings such as strong administrative passwords, disabling unused services and using encrypted VPN configurations. Monitor throughput and connection logs regularly to detect unusual activity and adjust firewall or QoS rules based on observed traffic patterns.
