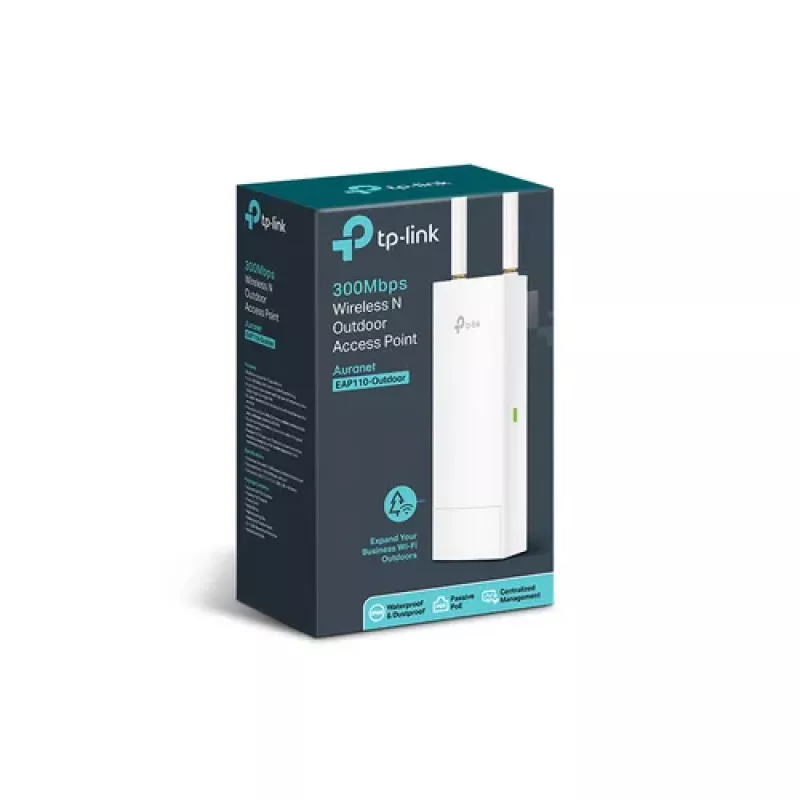

TP-Link EAP110-Outdoor Outdoor Access Point 300Mbps 2.4GHz Passive PoE IP65

The TP-Link EAP110-Outdoor is a robust, weatherproof outdoor access point designed to extend reliable Wi-Fi coverage in challenging environments. With support for IEEE 802.11n/g/b standards, it delivers wireless speeds of up to 300 Mbps on the 2.4 GHz band, making it ideal for surveillance, guest Wi-Fi, and general outdoor networking.

Advantages

IP65 weatherproof rating ensures operation in rain, dust, and extreme temperatures (-30°C to 65°C). Passive PoE (24V) simplifies installation with a single cable for both power and data. Integrated Omada SDN controller support enables centralized management for scalable networks.

Suitable for

• Outdoor Wi-Fi coverage for gardens, patios, warehouses, and campuses
• Wireless surveillance camera backhaul
• Guest Wi-Fi hotspots in public areas

Key specifications

• Wireless Standard: IEEE 802.11n/g/b
• Frequency Band: 2.4 GHz
• Max Data Rate: 300 Mbps
• Ethernet Ports: 1x 10/100 Mbps RJ45 with Passive PoE (24V)
• Antenna: 2x 3dBi external omni-directional
• Weatherproof: IP65
• Mounting: Pole/Wall
• Power Consumption: 6.3 W
• PoE Injector Included: Yes

Recommendations

For optimal performance, use the included 24V passive PoE injector. Manage multiple units via the Omada SDN controller for seamless roaming and centralized configuration.
