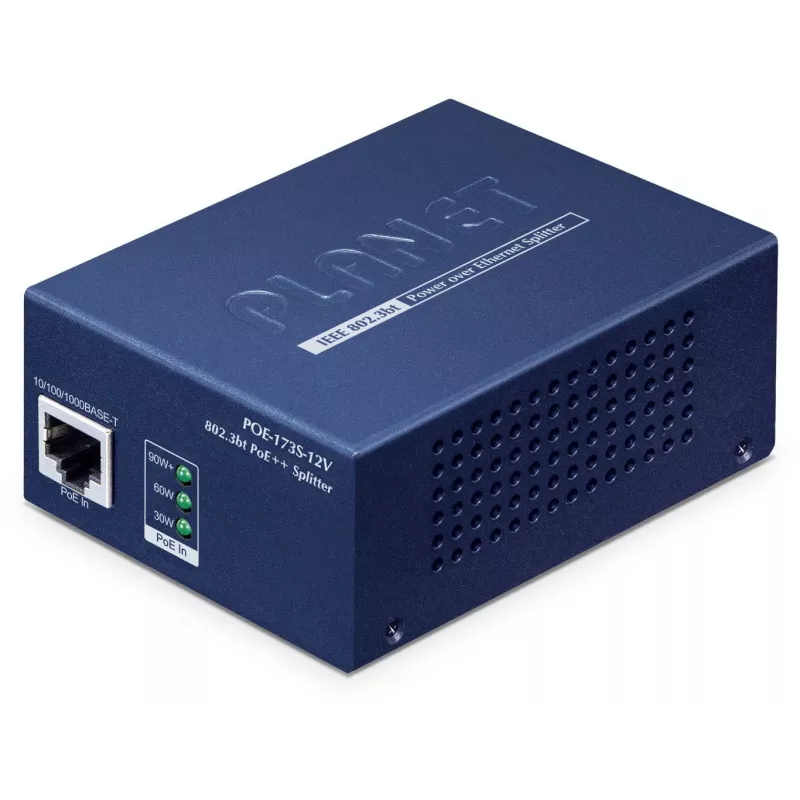

PLANET POE-173S-12V Single Port PoE++ Splitter 60W 12V DC

The PLANET POE-173S-12V is a high-performance Single Port PoE++ Splitter designed to deliver power and data to non-PoE devices over a single Ethernet cable. Compliant with IEEE 802.3bt Type 4 PoE++ standard, it accepts up to 60W of power input and provides a stable 12V DC output at up to 5A, making it ideal for powering devices such as IP cameras, wireless access points, and IoT equipment. With support for data rates up to 10GBASE-T, this splitter ensures seamless connectivity for high-bandwidth applications.

Advantages

Simplifies installation by eliminating the need for separate power cables, reduces costs, and offers flexible mounting options. Its metal housing and comprehensive protection features ensure reliable operation in demanding environments.

Suitable for

• Powering non-PoE devices like IP cameras, VoIP phones, and sensors
• Extending network reach in industrial or commercial settings
• Upgrading legacy devices to PoE-powered setups

Key specifications

• PoE Standard: IEEE 802.3bt Type 4 PoE++ (Input)
• Data Rate: 10GBASE-T (10/100/1000/2.5G/5G/10G Mbps)
• PoE Input Voltage: 50-57V DC
• DC Output Voltage: 12V DC
• Max DC Output Power: 60W
• Max DC Output Current: 5A
• Ethernet Ports: 1x 10GBASE-T RJ45 (PoE In), 1x 10GBASE-T RJ45 (Data Out)
• DC Output Connector: 2.1mm DC Jack (Center Positive)
• LED Indicators: Power, PoE In-use
• Operating Temperature: 0 to 50°C
• Storage Temperature: -20 to 70°C
• Operating Humidity: 5 to 95% (non-condensing)
• Power Consumption (Device): Max. 2.4W (without PD)
• Mounting Options: Wall-mount, Desktop
• Compliance: FCC Part 15 Class A, CE
• Protection Features: Over-current, Over-voltage, Short-circuit protection
• Housing Material: Metal

Recommendations

For optimal performance, use with a PoE++ switch or injector that supports IEEE 802.3bt Type 4. Ensure the total power draw of the connected device does not exceed 60W.
