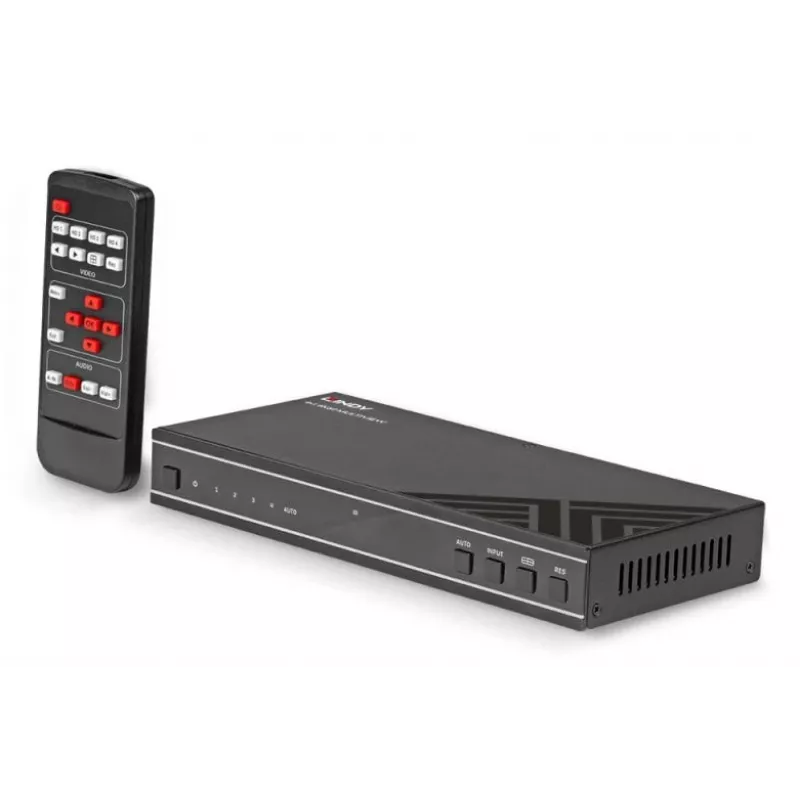

AV receiver Lindy 4x1 4K60 HDMI Seamless Multiview Switch, 3840x2160@60Hz, 12V 2.5A, black

The Lindy 4x1 4K60 HDMI Seamless Multiview Switch accepts up to four Ultra HD HDMI sources and outputs a single 3840×2160@60Hz image. Designed for live monitoring, presentations and conference setups, the compact wired AV receiver supports four viewing modes — Quad-View, Full Screen, Picture-in-Picture and Dual Video — and enables independent audio and video switching. The unit is powered by 12 V, 2.5 A and comes in a black enclosure suitable for desktop or rack-adjacent placement.

Advantages

This multiview switch provides seamless transitions between sources and picture modes without frame loss, supports Ultra HD 4K at 60 Hz on both inputs and output, and offers multiple control options including front-panel buttons, remote control and RS-232. Its compact form factor and straightforward operation make it a practical, cost-effective solution for environments requiring simultaneous monitoring of multiple video feeds.

Suitable for

• Digital presentations and lecture halls
• CCTV surveillance and control rooms
• Video conferencing and meeting rooms
• Control centres and live monitoring stations

Key specifications

• Model: Lindy 4x1 4K60 HDMI Seamless Multiview Switch (MPN 38228, EAN 4002888382281)
• Inputs: 4 × HDMI (Ultra HD sources)
• Output: 1 × HDMI, up to 3840×2160 @ 60 Hz
• Viewing modes: Quad-View, Full Screen, Picture-in-Picture, Dual Video
• Power: 12 V DC, 2.5 A
• Colour: Black
• Dimensions: 219 × 111 × 30 mm
• Weight: 0.61 kg

How to use

Connect up to four HDMI source devices to the switch inputs and connect the HDMI output to a 4K display. Apply the supplied 12 V, 2.5 A power adapter. Select the desired viewing mode (Quad-View, Full Screen, Picture-in-Picture or Dual Video) using the front-panel buttons, the included remote control, or RS-232 commands. If needed, choose the audio source independently of the video arrangement to maintain a continuous audio feed while switching video sources.

Recommendations

For stable 4K@60Hz operation, use high-quality HDMI cables rated for Ultra HD and ensure source devices and displays support 3840×2160@60Hz. Place the unit on a flat surface with adequate ventilation and avoid exposing it to extreme temperatures or moisture.
