CLUB3D HDMI 2-in-1 Bi-directional Switch 8K60Hz 4K120Hz CSV-1384

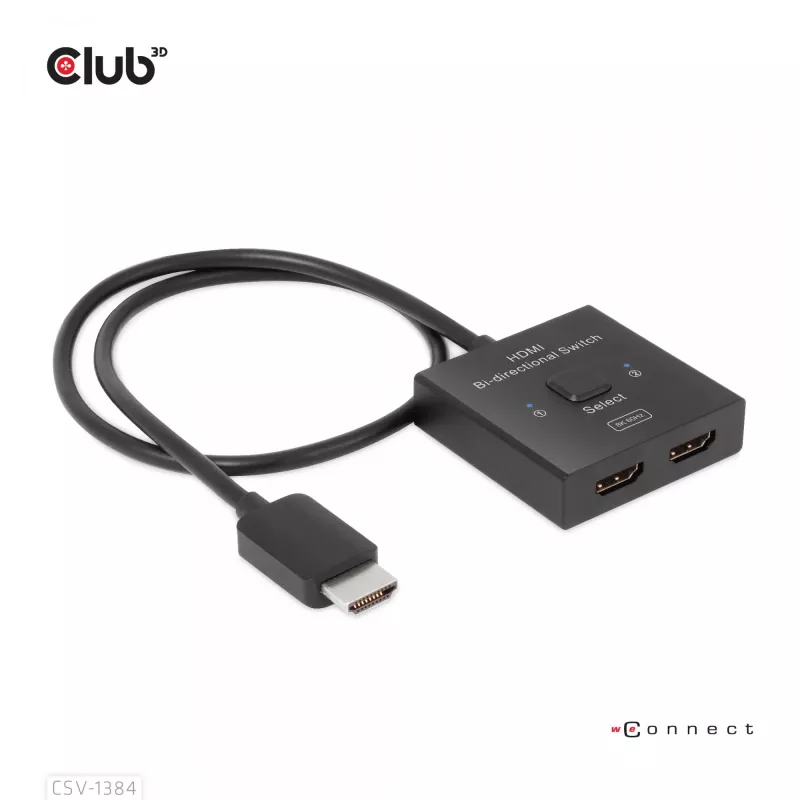

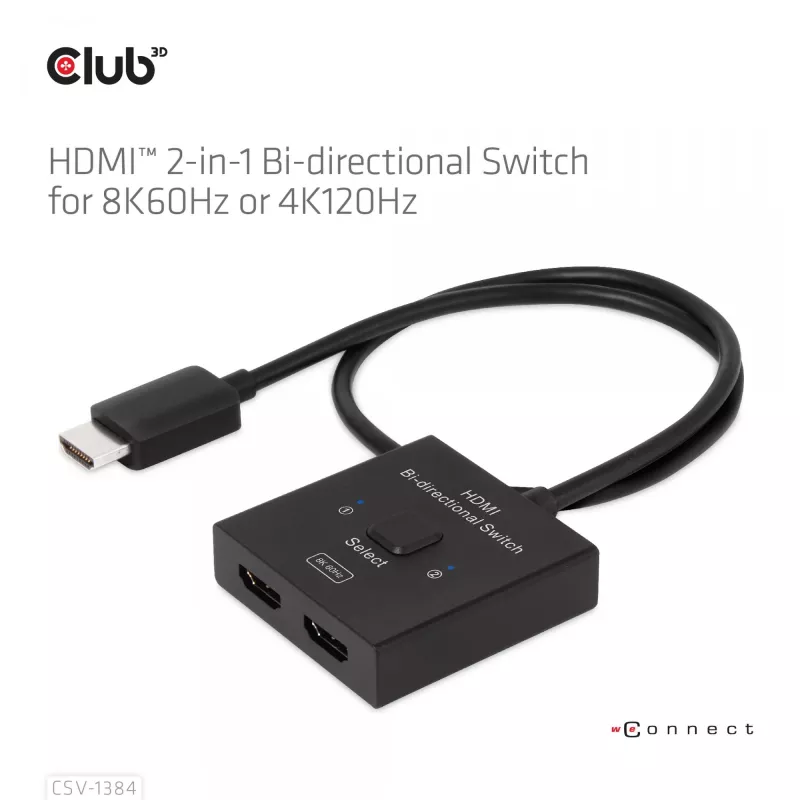

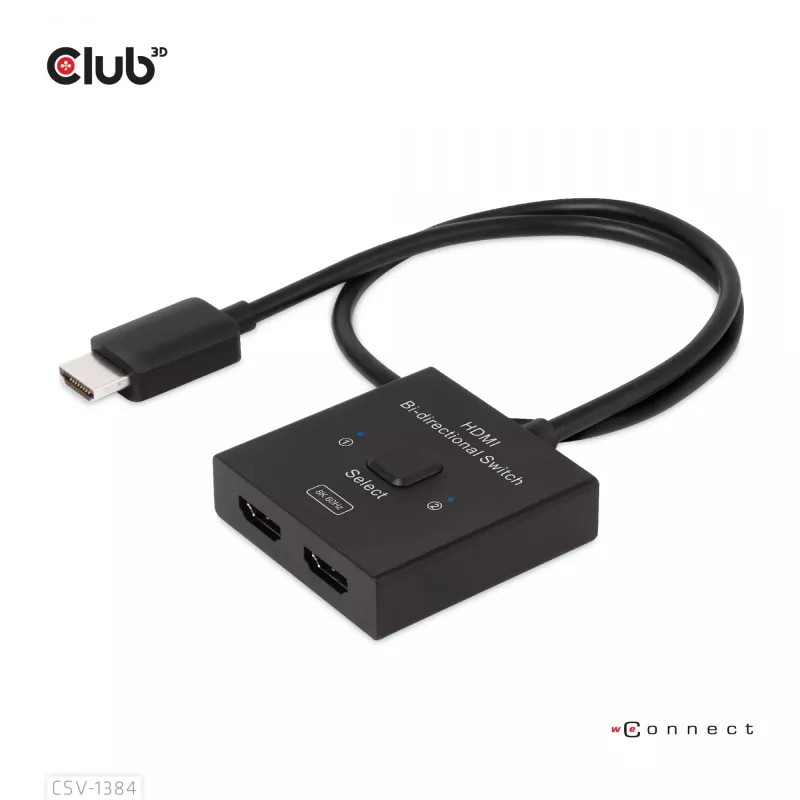

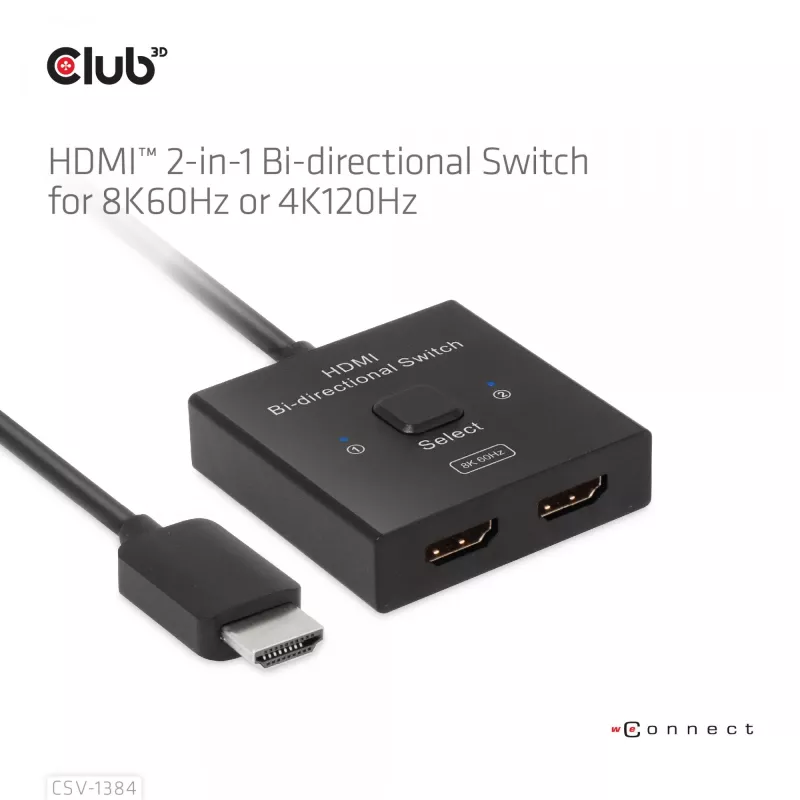

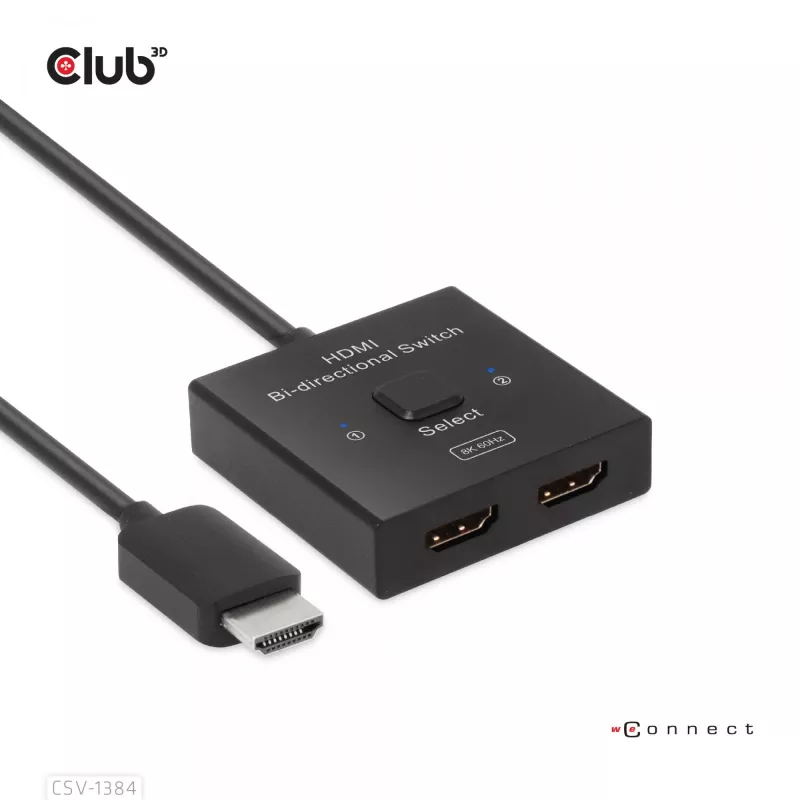

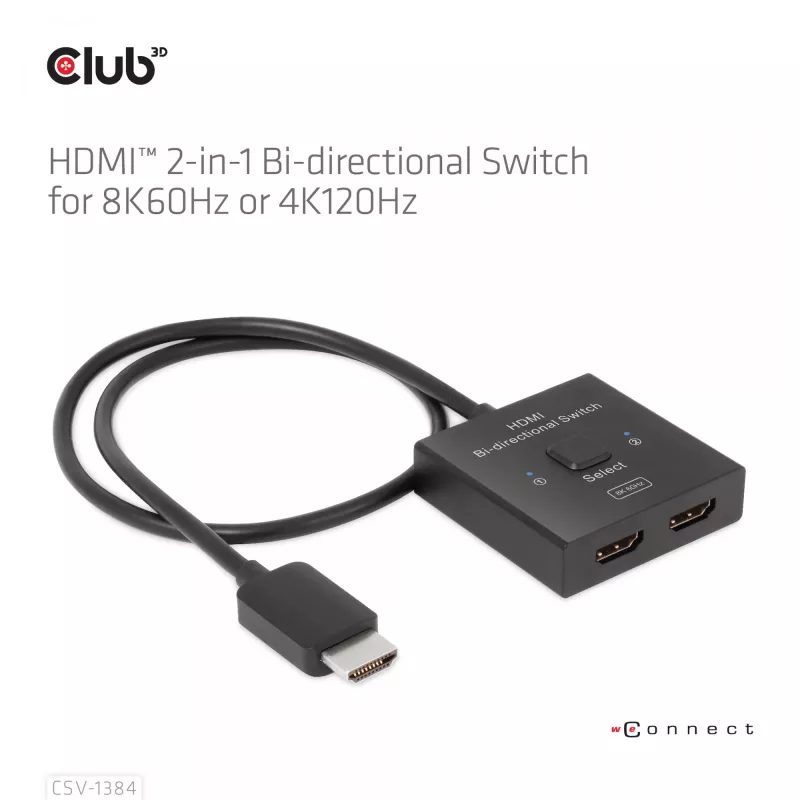

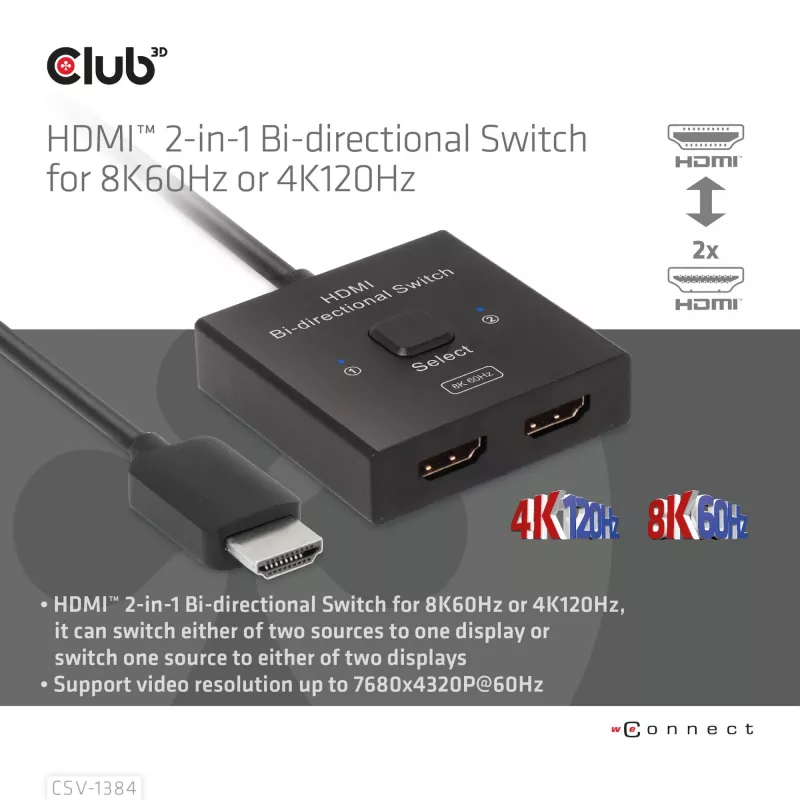

The CLUB3D CSV-1384 is a HDMI 2-in-1 bi-directional switch that supports up to 8K at 60Hz and 4K at 120Hz. It lets you route high-definition video and digital audio between two HDMI sources and one display, or route one HDMI source to either of two displays. The unit includes a fixed 0.5 m (1.64 ft) HDMI pigtail cable for direct connection to displays, reducing cable clutter and simplifying installation.

Advantages

The switch supports high bandwidth signals for resolutions up to 8K60Hz and 4K120Hz, ensuring compatibility with modern high-resolution displays and gaming systems. Its bi-directional design enables both 2-to-1 and 1-to-2 switching without additional adapters. A front-mounted push button provides direct, manual channel selection. The integrated short HDMI pigtail reduces setup time and the need to purchase an extra cable.

Suitable for

• Connecting two HDMI sources (PC, game console, media player) to a single display
• Sharing one HDMI source between two displays (monitor, TV, projector)
• High-resolution gaming setups requiring 4K120Hz or 8K60Hz bandwidth
• Professional or multimedia workstations needing quick source switching

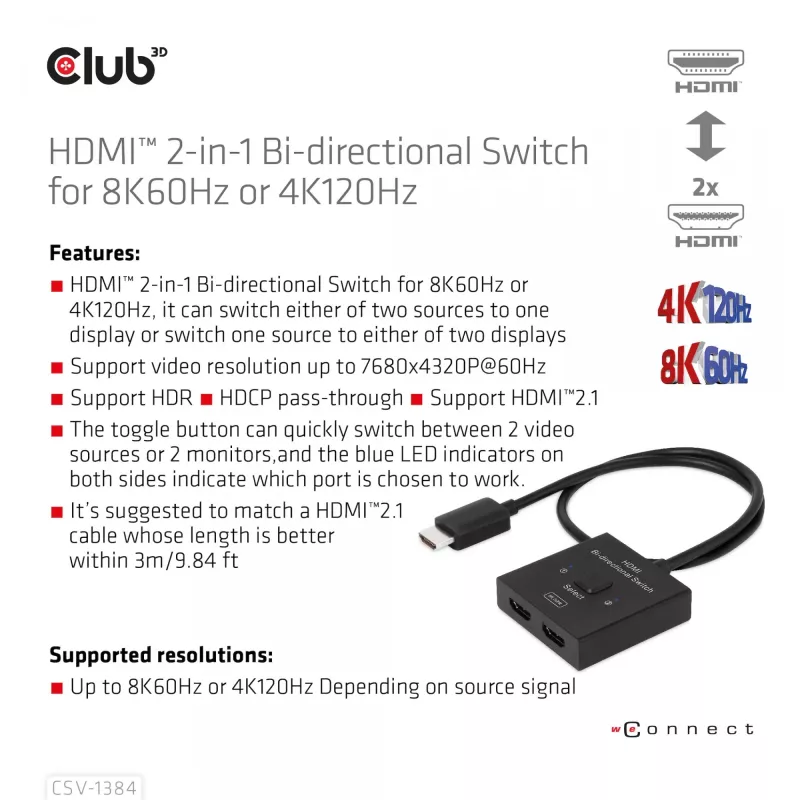

Key specifications

• Model: CLUB3D CSV-1384
• Function: HDMI 2-in-1 bi-directional switch (2×1 or 1×2)
• Supported resolutions: up to 8K @ 60Hz and 4K @ 120Hz

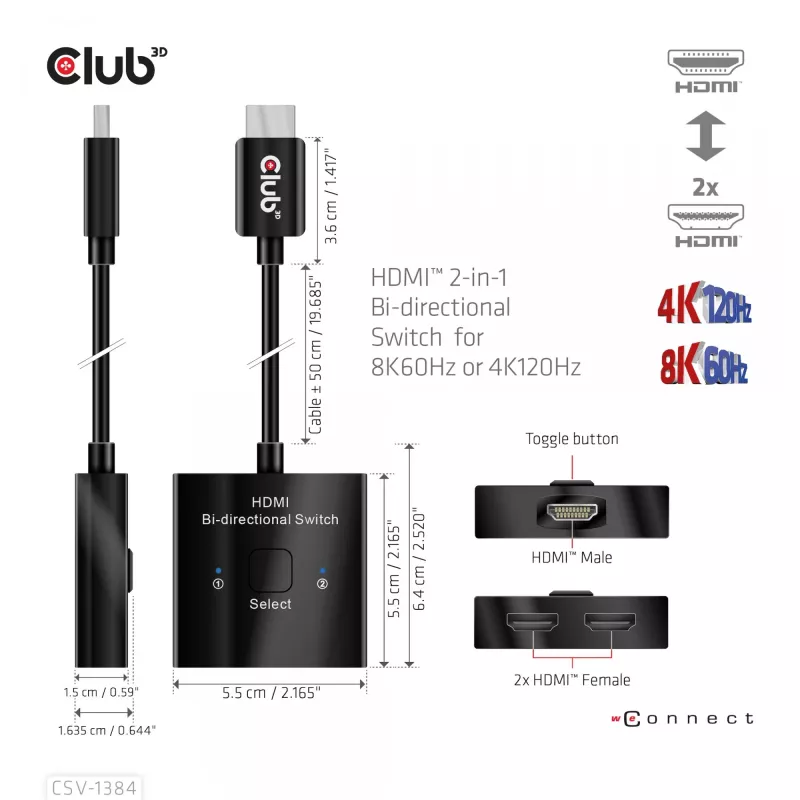

• Included cable: fixed HDMI pigtail, 0.5 m (1.64 ft)

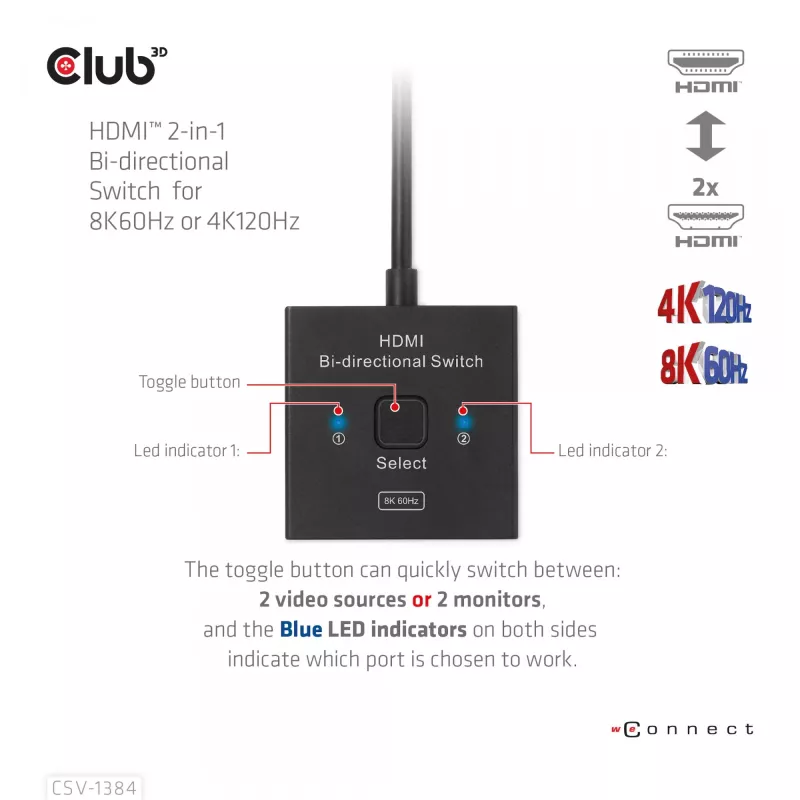

• Control: manual push-button channel selection
• Connector type: HDMI
• Brand: club 3d
• MPN: CSV-1384
• EAN: 8719214472832

How to use

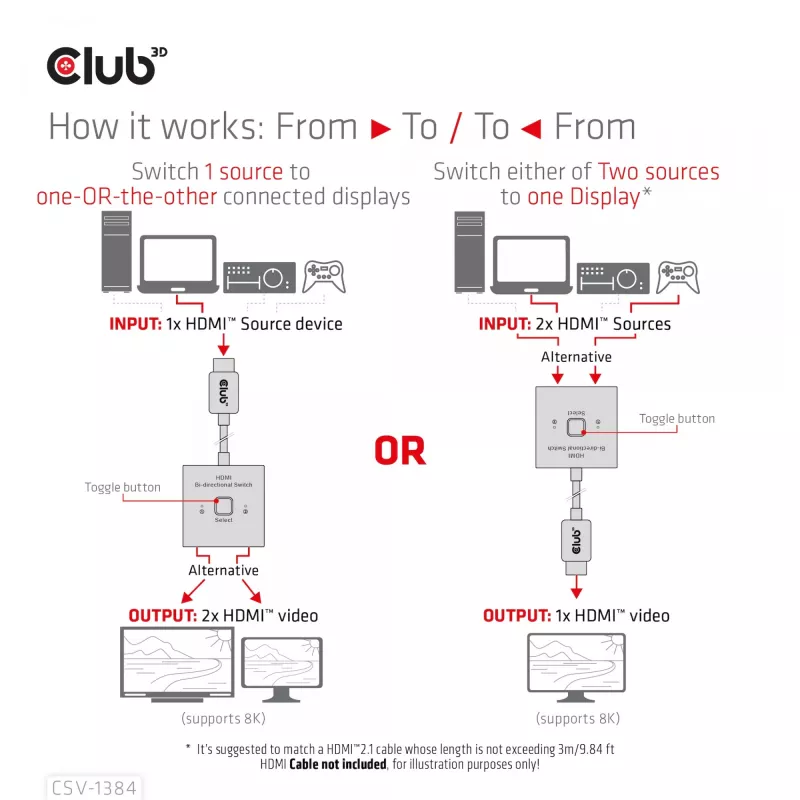

Connect HDMI source devices to the two input ports, or connect the single source to the fixed pigtail and the desired display to the other HDMI port depending on your chosen routing. Use the front push button to toggle between channel 1 and channel 2; the selected channel is routed to the connected display. Ensure all connected devices and cables support the intended resolution and refresh rate to achieve optimal video performance.

Recommendations

For best results, use HDMI cables and source/display devices that explicitly support 8K60Hz or 4K120Hz. Verify the display’s supported modes and set the output device’s resolution and refresh rate accordingly. Avoid using excessively long HDMI runs beyond recommended cable specifications to maintain signal integrity.
