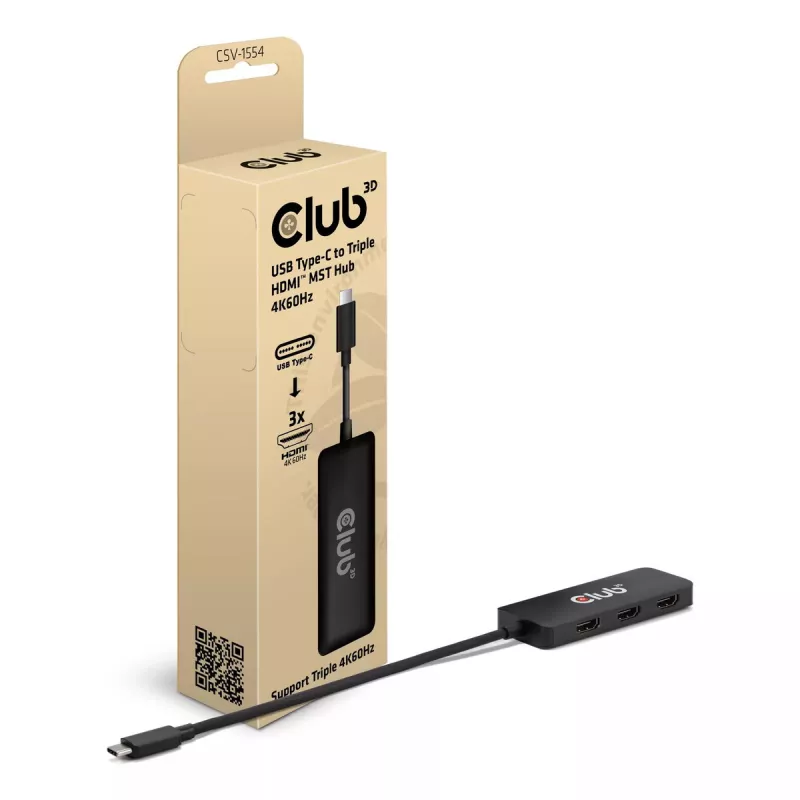

Interface Hub USB Type-C CLUB3D CSV-1554 Black

The CLUB3D CSV-1554 is a USB Type-C MST hub that converts a single USB-C port with DisplayPort Alt Mode into three HDMI outputs. It supports DisplayPort 2.1 Alt Mode and can drive one display up to 8K@30Hz, dual displays up to 8K@30Hz + 4K@144Hz, or three displays at 4K@60Hz each. The hub is lightweight and portable, powered via the host USB-C port and compatible with devices that support DP Alternate Mode, including many phones, tablets, laptops and Thunderbolt 4 hosts.

Advantages

The CSV-1554 enables simultaneous multi-monitor setups from a single USB-C port without requiring external power. It supports high resolutions and refresh rates (up to 8K and 144Hz where supported) and is compact and easy to carry. The hub is compatible with a wide range of DP Alt Mode and Thunderbolt 4 devices and provides three HDMI outputs for connecting TVs, monitors or projectors.

Suitable for (tasks / use cases)

• Expanding a laptop or ultrabook to multiple external monitors
• Connecting a compatible smartphone or tablet to HDMI displays
• Presentations with multiple screens (meeting rooms, classrooms)
• Home office setups that require up to three HDMI displays
• Driving high-resolution displays for photo, video or design reviews

Key specifications

• Host interface: USB Type-C with DisplayPort Alt Mode (DP2.1)
• Outputs: 3 × HDMI
• Maximum single-display capability: up to 8K @ 30Hz
• Multi-display modes: dual up to 8K@30Hz + 4K@144Hz; triple 4K@60Hz each
• Compatibility: DP Alternate Mode supported USB-C and Thunderbolt 4 devices
• Weight: 0.053 kg
• Colour: Black

How to use

Connect the CSV-1554 to a host device using the USB Type-C port that supports DisplayPort Alt Mode. Attach up to three HDMI cables from the hub to displays, TVs or projectors. The host device should detect the external displays automatically; configure display arrangement and resolution in the operating system display settings. No additional drivers are normally required for DP Alt Mode compatible devices.

Recommendations

Use a host device that explicitly supports DisplayPort Alternate Mode (DP2.1 recommended) or Thunderbolt 4 for full functionality. For best video quality at high resolutions or refresh rates, use high-quality HDMI cables rated for the target resolution and ensure the host GPU and OS support the desired multi-monitor configuration.
