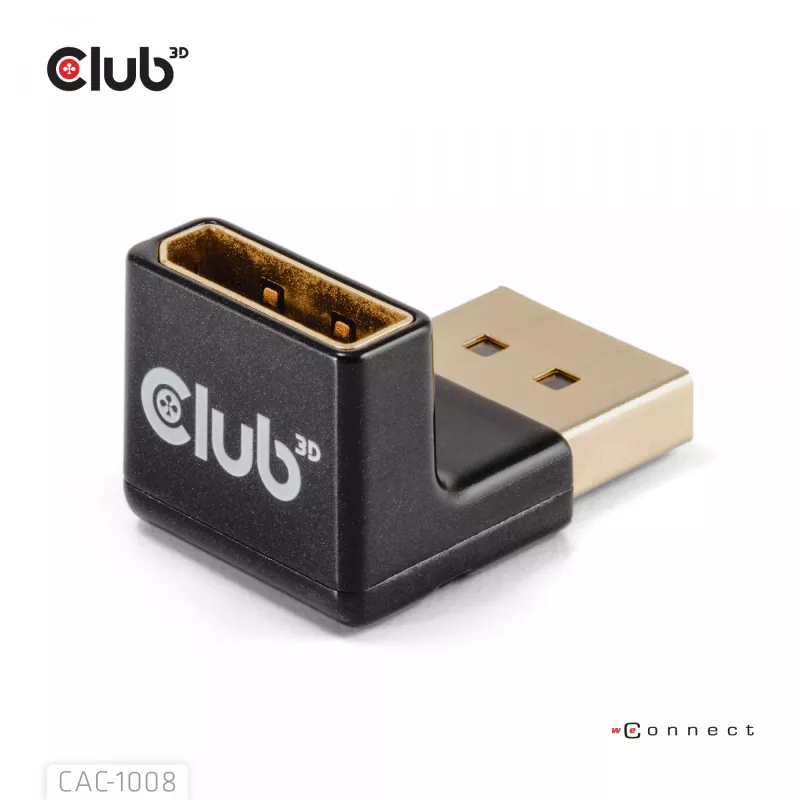

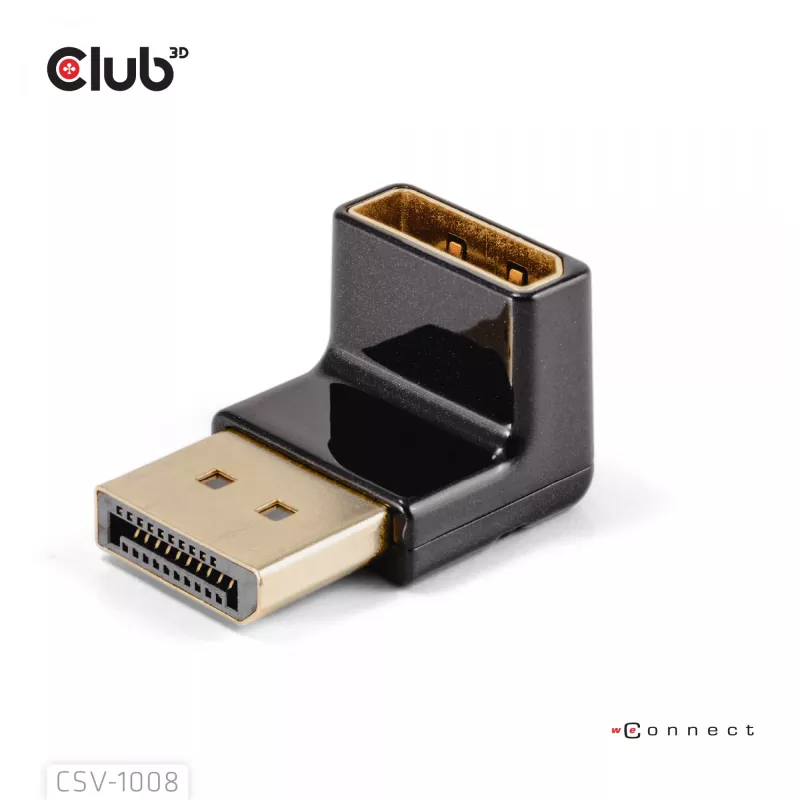

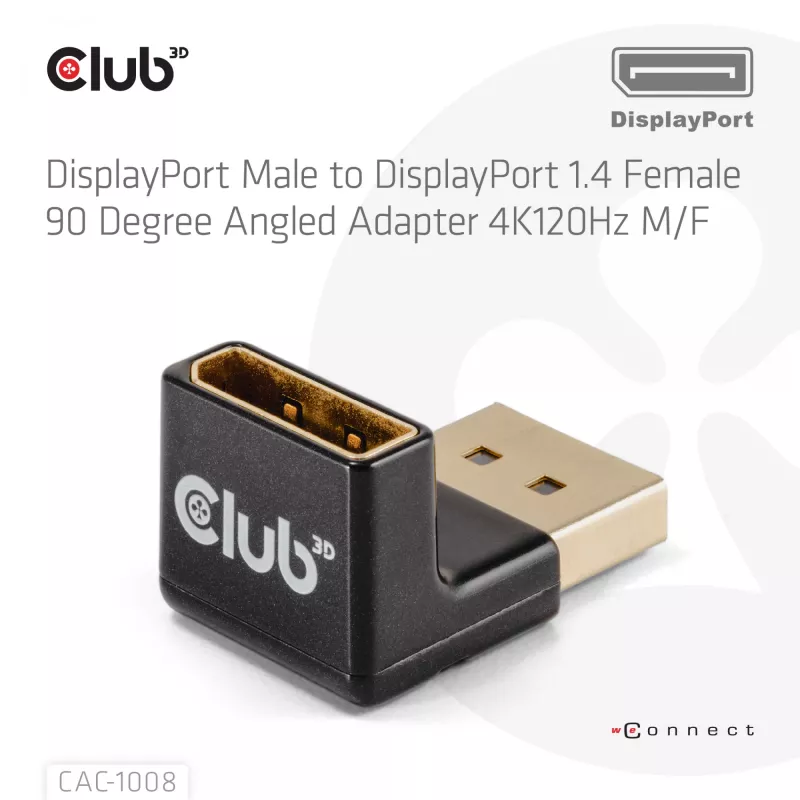

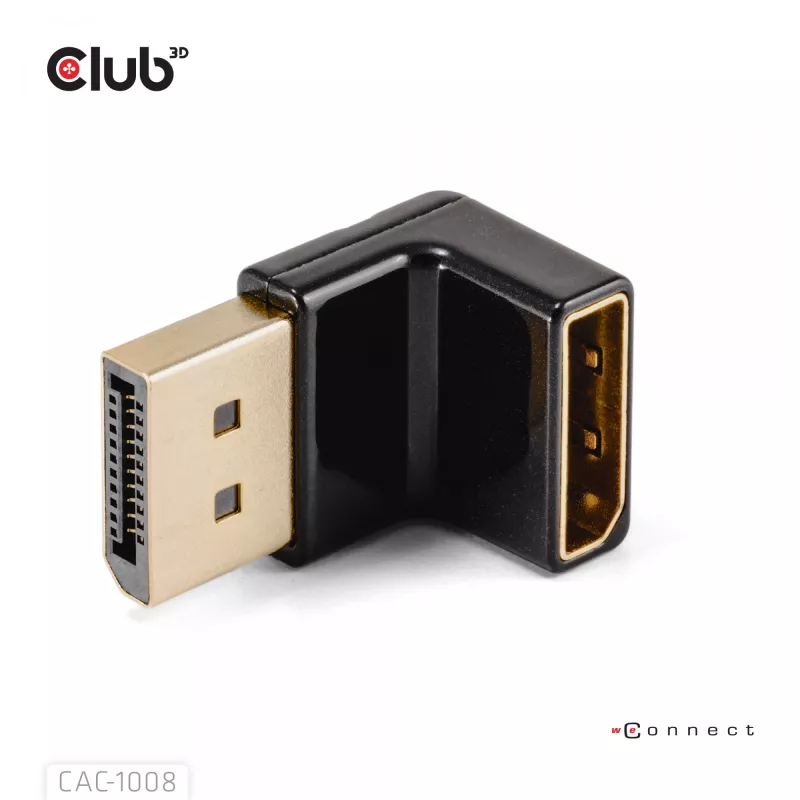

Adapter club 3d DisplayPort male to DisplayPort 1.4 female 90° angled, supports 4K@120Hz

The CLUB3D DisplayPort Male to DisplayPort 1.4 Female 90 Degree Angled adapter provides a compact solution for connecting DisplayPort devices in confined or tight spaces. It supports high-resolution video and audio transmission and is compatible with DisplayPort 1.4 sources and displays.

Advantages

This angled adapter preserves DisplayPort 1.4 signal integrity while enabling a right-angle connection that reduces cable strain and saves space behind monitors or devices. It supports 4K resolution at 120 Hz for smooth video playback and maintains compatibility with a range of DisplayPort-equipped equipment.

Suitable for

• Connecting a DisplayPort cable to a monitor with limited rear clearance
• Rear I/O panels on PCs, workstations, or small form-factor systems
• Gaming setups and professional displays where cable routing is constrained

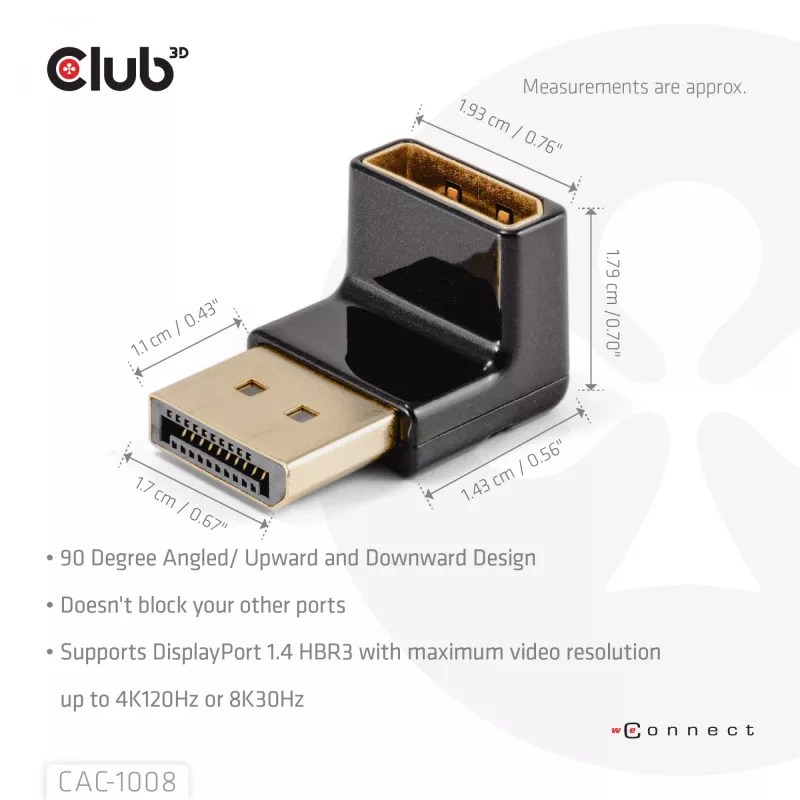

Key specifications

• Interface: DisplayPort male to DisplayPort 1.4 female
• Angle: 90-degree right-angle connector
• Video support: Up to 4K (3840 × 2160) at 120 Hz via DisplayPort 1.4
• Audio support: Digital multi-channel audio pass-through
• Compatibility: Compatible with DisplayPort 1.4 sources and sinks

How to use

Insert the male DisplayPort end of the adapter into the DisplayPort output on your source device, then connect a DisplayPort cable to the female DisplayPort 1.4 port on the adapter and route the cable as needed. Ensure both devices are powered and configured to use the appropriate display resolution and refresh rate. Secure connections to prevent strain on the ports.

Recommendations

Use the adapter when rear connector clearance is limited and when maintaining DisplayPort 1.4 features such as high refresh rates and audio is required. Avoid excessive bending or torque on the adapter and cable to prolong connector life.
