DIGITUS ASSMANN DisplayPort adapter cable, DP - HDMI type A M/F, 20cm w/interlock, HDMI Ver. 2.0, active, CE, gold, black

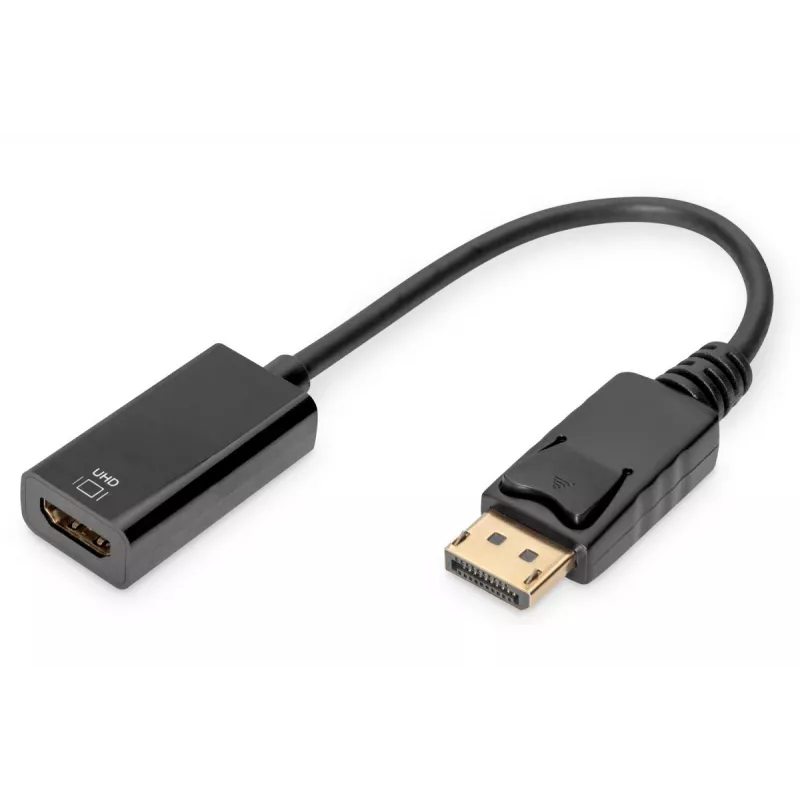

The Active DisplayPort to HDMI Converter Digitus AK-340415-002-S is a compact adapter that converts a DisplayPort source to an HDMI display. With a 0.2 m integrated cable and a standard HDMI Type A connector, it supports resolutions up to 4096 x 2160 (4K Ultra HD) and is suitable for connecting computers or notebooks to TVs or monitors for presentations, video playback and image viewing. The adapter is black, lightweight (0.03 kg) and compatible with DP++ Dual-Mode sources.

Advantages

This active converter supports HDMI 2.0 features, including four-lane transmission with data rates up to 2.7 Gbps per lane, Deep Color 24-bit and built-in automatic receiver equalization to maintain signal quality. It supports DP++ Dual-Mode and delivers Ultra HD 4K resolution for clear, high-detail output on HDMI displays.

Suitable for

• Connecting a laptop or desktop with DisplayPort to an HDMI TV
• Presentations in meeting rooms using an HDMI projector or display
• Displaying 4K video, photos and documents on an external monitor

Key specifications

• Model: Digitus AK-340415-002-S
• Input connector: DisplayPort (male)
• Output connector: HDMI Type A (female)
• Cable length: 0.2 m
• Supported maximum resolution: up to 4096 x 2160 (4K Ultra HD)
• HDMI feature support: HDMI 2.0, DP++ Dual-Mode
• Data lanes and rate: 4 lanes, up to 2.7 Gbps per lane
• Color depth: Deep Color 24-bit
• Weight: 0.03 kg
• Colour: Black

How to use

Connect the DisplayPort male end of the converter to the DisplayPort output on your computer or notebook. Plug an HDMI cable (not included) into the HDMI Type A female connector on the converter and connect the other end to the HDMI input on your TV or monitor. Select the corresponding HDMI input on the display and configure the display settings on your computer to the desired resolution (up to 4096 x 2160). Ensure the source device supports DP++ if required for passive conversion; this active converter will handle signal conversion where needed.

Recommendations

For stable 4K output, use a high-quality HDMI cable rated for 4K/60 Hz, verify that the source GPU and display support the chosen resolution and refresh rate, and keep cable runs as short as practical. If you experience no signal, check the DisplayPort source settings and try restarting both source and display.
