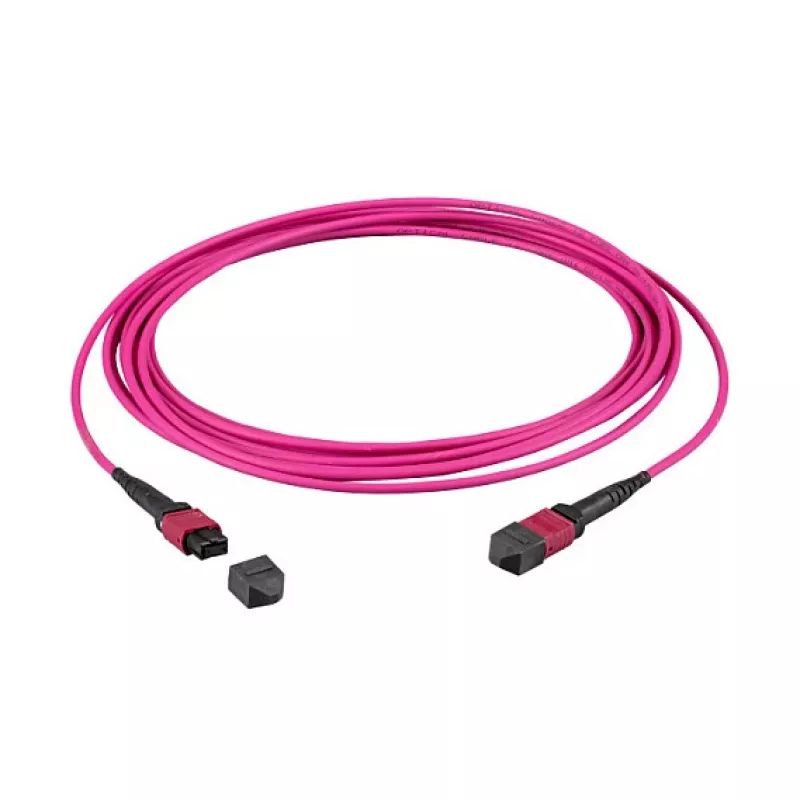

EFB-Elektronik MTP Female to MTP Female 12-Fiber OM4 Patch Cable, LSZH, Erika Violet, Type B, 2m

The EFB-Elektronik MTPF12MTPFOM4-2 is a high-performance 12-fiber MTP female to MTP female patch cable designed for high-density fiber optic networks. With OM4 multimode fiber, LSZH jacket, and polarity Type B, this cable ensures reliable data transmission in data centers and enterprise environments.

Advantages

Optimized for 40G/100G Ethernet applications, this trunk cable supports high bandwidth over longer distances. The MTP female connectors provide low insertion loss and high return loss, ensuring signal integrity. The LSZH jacket reduces smoke and toxic fumes in case of fire, making it safe for indoor use.

Suitable for

• Data center backbone cabling
• High-density network infrastructure
• 40G/100G Ethernet and Fibre Channel links
• Structured cabling systems requiring polarity Type B

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MTP Female
• Connector B: MTP Female
• Cable Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Polarity: Type B (Cross-over)
• Core/Cladding: 50/125 µm
• Insertion Loss (per connector): < 0.75 dB
• Return Loss: > 20 dB
• Bandwidth (850nm): 4700 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Operating Temperature: -10°C to 70°C
• Standards: IEC 61754-7, TIA-604-5 (MPO/MTP)

Recommendations

For optimal performance, pair with EFB-Elektronik MTP adapter panels and cassettes. Ensure proper polarity management in your network design.
