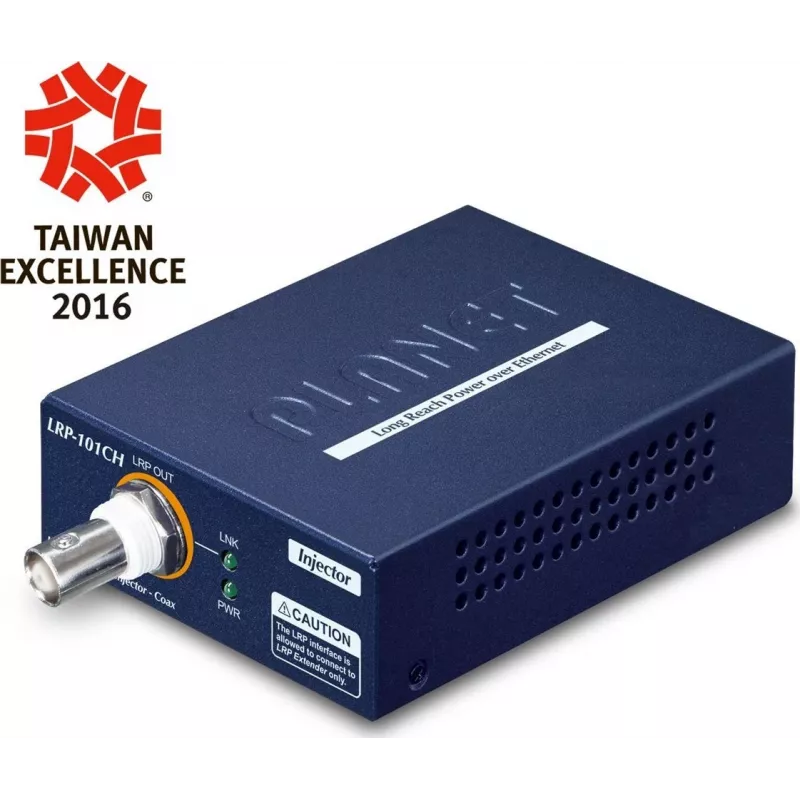

Planet LRP-101CH Long Reach PoE over Coaxial Extender, Wall-mount, 30W

The Planet LRP-101CH is a Long Reach PoE over Coaxial Extender designed to extend Ethernet and PoE connectivity over existing coaxial cable infrastructure. It enables network administrators to leverage legacy coaxial cabling for IP camera, wireless access point, and VoIP deployments, significantly reducing rewiring costs. The extender supports data rates up to 100Mbps and PoE output up to 30W (IEEE 802.3af/at) to power remote devices.

Advantages

Cost-effective solution for extending network reach up to 1000 meters at 10Mbps or 300 meters at 100Mbps over coaxial cable. Supports both Long Reach PoE and Long Reach Ethernet modes via DIP switch. Wall-mount and DIN-rail mountable for flexible installation. Metal housing ensures durability in industrial environments.

Suitable for

• Extending network and PoE to remote IP cameras, access points, and IoT devices
• Upgrading legacy coaxial surveillance systems to IP without rewiring
• Industrial and outdoor installations requiring robust, weather-resistant equipment

Key specifications

• 1 x 10/100BASE-TX RJ45 (PoE PSE output) and 1 x BNC coaxial LRP input
• PoE output: IEEE 802.3af/at, up to 30W
• Max. coaxial distance: 1000m at 10Mbps, 300m at 100Mbps
• Wall-mount and DIN-rail mount support
• LED indicators for Power, LRP Link/Act, PoE, LAN Link/Act
• Operating temperature: -10 to 60°C
• Metal housing, FCC and CE compliant

Recommendations

For optimal performance, pair with Planet LRP-101C or LRP-822CS coaxial injectors. Ensure coaxial cable quality meets required distance specifications. Suitable for use in security, surveillance, and industrial networking applications.
