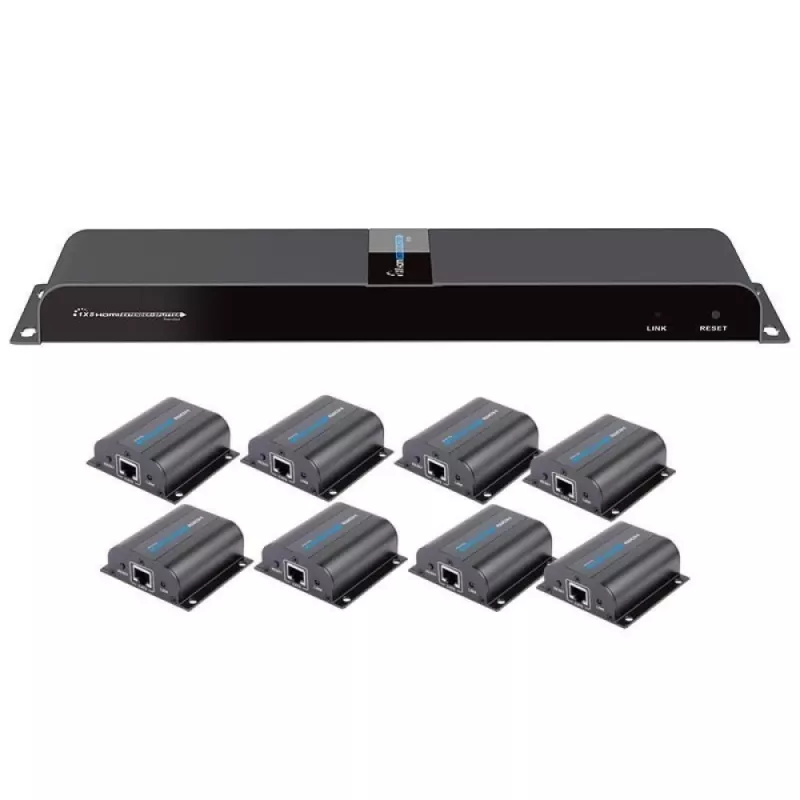

Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY

Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
R8,729
- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously- Compatible with CAT6/6a/7 network cables- The highest resolution supported is up to 1080p@60Hz- Extend HDMI signal up to 50m/164ft over CAT6 cable- Support IR pass back for remote control source device easily- Uncompresse... Read More
Stock 3 Code 332731 Brand TECHLY Model IDATA EX-HL81TY Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

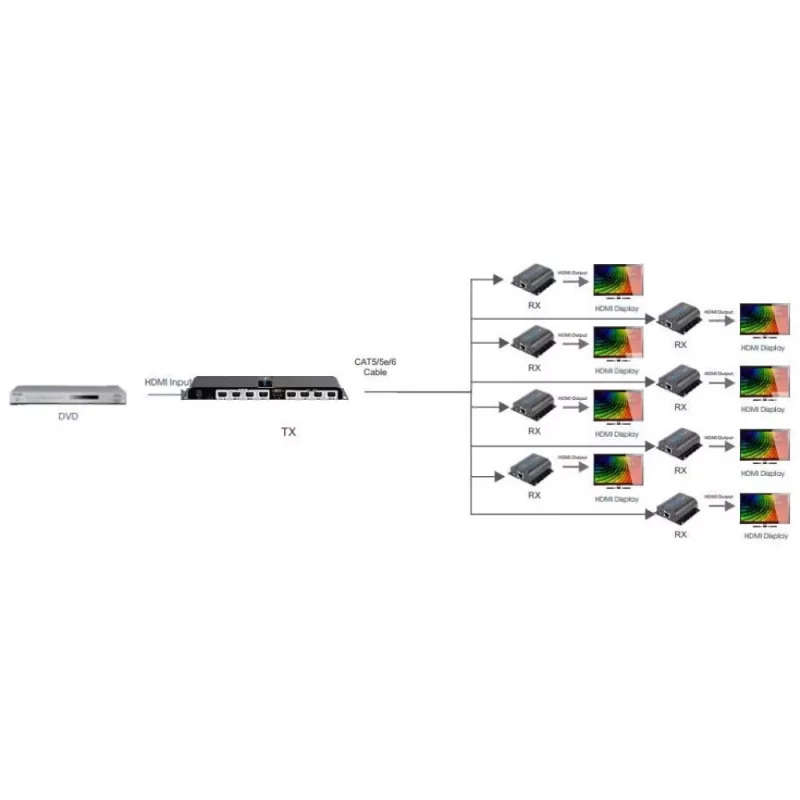

- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously
- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p@60Hz
- Extend HDMI signal up to 50m/164ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug and play

Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat6, Cat6a, Cat7. Operating voltage: 12 V, Input current: 3 A, Operating voltage (receiver): 5 V. Weight: 2.18 kg, Receiver dimensions (WxDxH): 71.6 x 66.6 x 22.6 mm, Transmitter dimensions (WxDxH): 276 x 95.98 x 23 mm. Cables included: IR

Key Highlights
  • Distribute 1 HDMI source to 8 HD displays over network cable simultaneously
  • Compatible with CAT6/6a/7 network cables
  • The highest resolution supported is up to 1080p@60Hz
  • Extend HDMI signal up to 50m/164ft over CAT6 cable
  • Support IR pass back for remote control source device easily
  • Uncompressed and zero latency
  • Plug and play
  • AV transmitter & receiver 1920 x 1080 pixels Black
  • Maximum transfer distance: 40 m
  • 60 Hz
  • HDCP
  • DC-in jack
  • 24 W
Specifications
3D
No
AC adapter included
Yes
Audio formats supported
PCM
Audio support
Yes
Cable types supported
Cat6, Cat6a, Cat7
Cables included
IR
Certification
CE, FCC
Colour depth
36 bit
Compliance certificates
CE
DC-in jack
Yes
External power adapter
Yes
HDCP
Yes
HDCP & EDID bypass
Yes
HDCP version
1.2
HDMI in
1
HDMI version
1.3
Input current
3 A
IR blaster included
Yes
LED indicators
Yes
Material
Aluminium
Maximum refresh rate
60 Hz
Maximum resolution
1920 x 1080 pixels
Maximum transfer distance
40 m
Number of HDMI outputs
9
Operating temperature (T-T)
0 - 60 °C
Operating voltage
12 V
Operating voltage (receiver)
5 V
Plug and Play
Yes
Power consumption (typical)
24 W
Power over Ethernet (PoE)
Yes
Product colour
Black
Quick start guide
Yes
Receiver dimensions (WxDxH)
71.6 x 66.6 x 22.6 mm
Remote (IR) input
1
Remote (IR) output
1
Remote control type
IR
RJ-45 input ports
1
RJ-45 output ports
8
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Transmitter dimensions (WxDxH)
276 x 95.98 x 23 mm
Type
AV transmitter & receiver
Vendor code
028207
Wall mountable
Yes
Weight
2.18 kg

Manual

Open Manual

Leaflet

Open Leaflet
