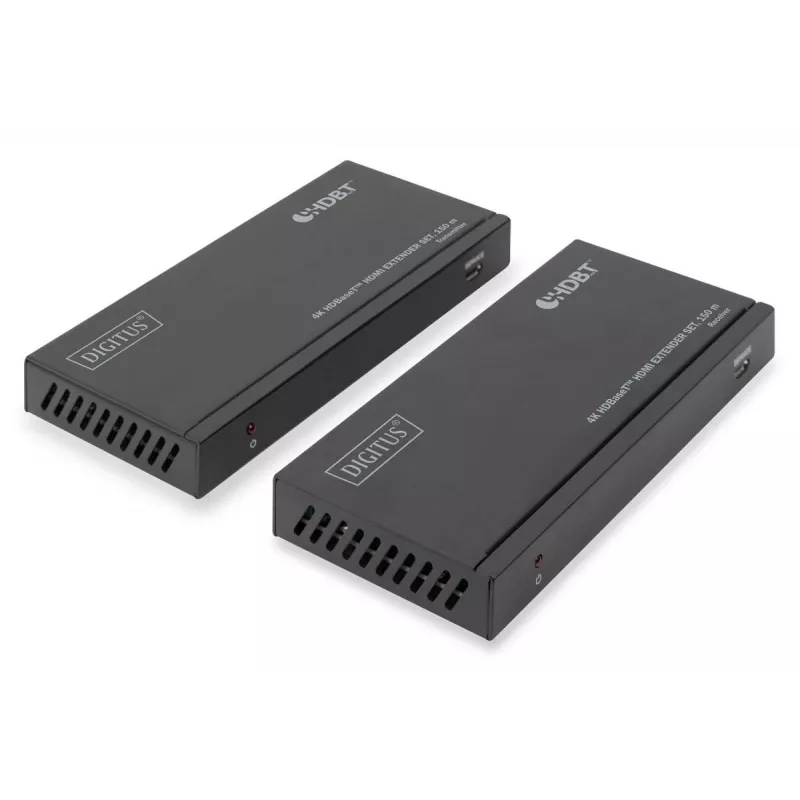

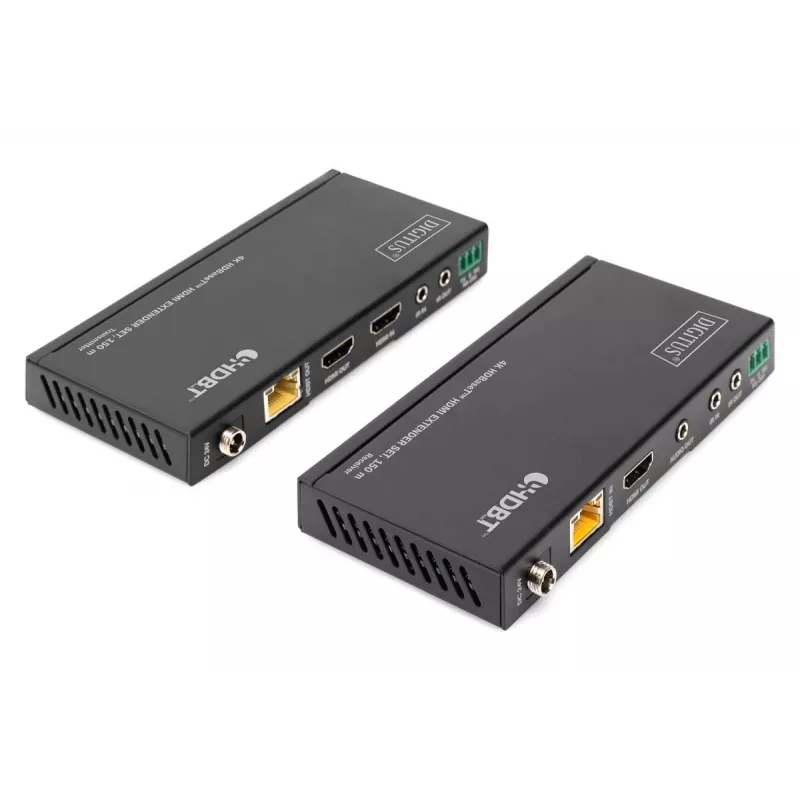

DIGITUS HDBaseT HDMI Extender Set 150m 4K/60Hz 18 Gbps YUV 444 HDR

The DIGITUS AV transmitter & receiver 4K HDBaseT™ HDMI Extender Set enables uncompressed, high-resolution HDMI signal transmission over long distances using standard copper data cables. The set includes a transmitter and a receiver and supports transmission of Full HD up to 150 m and UHD 4K up to 120 m when used with Cat5e–Cat8/CAT6A–CAT8 cables. It supports resolutions up to 3840 x 2160 and a video bandwidth of 18 Gbps, and requires only one external power adapter thanks to Power over Cable (PoC).

Advantages

The extender set supports HDBaseT™ 1.0 and HDCP 2.2/1.4, delivers 4K2K/60Hz (4:4:4) video, and is compatible with HDR formats including HDR10+, Dolby Vision and HLG. It provides HDMI loop-out on the transmitter for local monitoring, transmits RS232 and bi-directional IR signals, and works with Cat5e to Cat8 cabling for flexible installation. The compact black units offer a practical solution for extending HDMI signals without compression.

Suitable for

• Extending HDMI sources (Blu-ray players, media players, set-top boxes) to distant displays
• AV installations in conference rooms, classrooms and retail spaces
• Digital signage and video wall applications requiring long cable runs

Key specifications

• Type: AV transmitter & receiver
• Maximum resolution: 3840 x 2160 (4K)
• Video bandwidth: 18 Gbps
• Maximum transfer distance: 150 m (Full HD), 120 m (UHD 4K)
• Cable types supported: Cat5e, Cat6, Cat6A, Cat7, Cat8
• HDMI in / HDMI out: 1 / 1
• RJ-45 in / out: 1 / 1
• Power: PoC (only one unit needs external adapter)
• Compliance: HDBaseT™ 1.0, HDCP 2.2 / 1.4
• Color: Black

How to use

Connect the HDMI source to the transmitter's HDMI input and run a suitable Cat5e–Cat8 cable between the transmitter RJ-45 output and the receiver RJ-45 input. Connect the receiver HDMI output to the display. If a local monitor is needed at the transmitter location, use the transmitter's HDMI loop-out. Provide power to one unit using the supplied external power adapter; PoC will power the other unit over the cable. Configure RS232 or IR control as required for remote device control.

Recommendations

Use high-quality shielded Cat6A or Cat7/8 cable for optimal 4K/60Hz performance and reliable HDR support; verify cable terminations and avoid running the cable alongside high-voltage lines to reduce interference.
