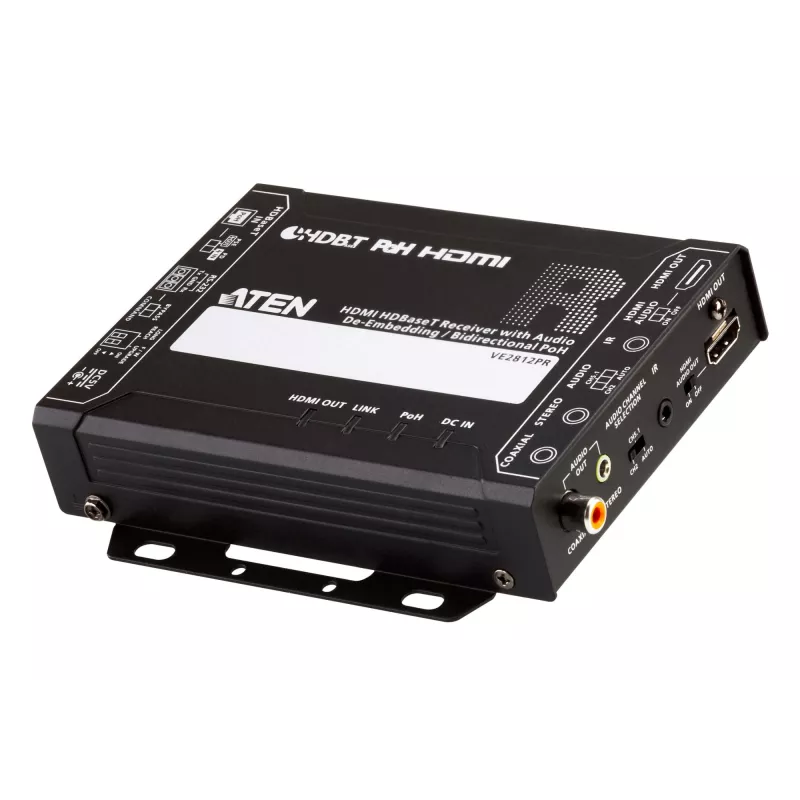

ATEN HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)

Featuring powerful Class A HDBaseT technology, the VE2812PR is a receiver for 4K HDMI video, audio, and control signals over a distance of up to 100 m via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable. HDMI signal transmission extends further up to 150 m @ 1080p when the HDBaseT Long Reach Mode is enabled.

Designed to optimize flexibility, the VE2812PR ships with 2-way PoH capability, either allowing a PoH PD-enabled Tx (VE2812AT series is recommended) to be remotely powered by the locally powered VE2812PR, or enabling power distribution along the cable from a PoH PSE-enabled Tx (VE1812T is recommended) to the VE2812PR. Speaking of VE2812PR’s audio de-embedding, audio signal can be extracted from the incoming HDMI source and then transmitted through Coaxial or Stereo output to external audio distribution systems. The VE2812PR gives users the extra convenience when it comes to extending control and communication signals via the built-in RS-232 and bi-directional IR ports. Plus, it is HDCP 2.2 compliant and supports HDMI specification features, such as 4K2K, 3D, Deep Color, and CEC for reliable transmission of high-quality uncompressed HDMI content.

With all highlights packed in a compact enclosure, the VE2812PR assures easy and discreet installation, keeping the presentation space tidy. It is ideal for small / mid-sized areas where 4K HDMI and control signal transmission over a long distance is required, such as boardrooms, lecture halls, and digital signage applications.

ATEN HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD). Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Audio output: 3.5mm, Serial interface type: RS-232. Power source type: DC, Operating voltage: 5 V, Power consumption (typical): 5.83 W. Width: 123 mm, Depth: 145.3 mm, Height: 30 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm
