Network Media Converter PLANET IP30 Industrial 10/100/1000BA

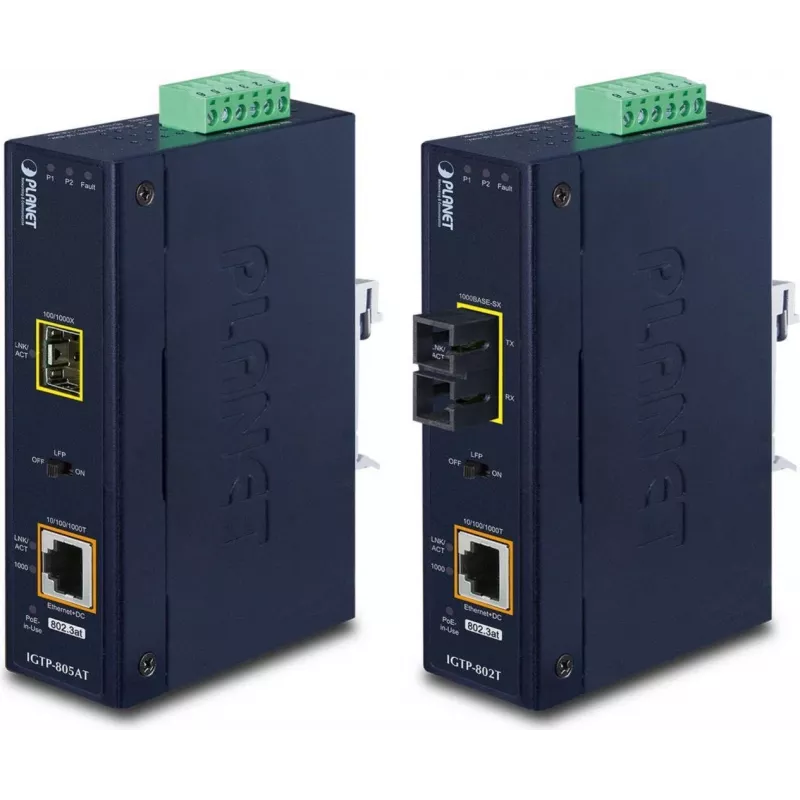

The PLANET IGTP-802T is an industrial Gigabit media converter that combines 1000BASE-X fibre uplink with a 10/100/1000BASE-T Ethernet port and an integrated IEEE 802.3at Power over Ethernet Plus (PoE+) injector. It supplies up to 30 W of PoE power to a single powered device and supports fibre uplink distances up to 550 m (SC, multi-mode). The unit accepts 12–48 V DC or 24 V AC input for flexible and redundant power arrangements and is housed in an IP30-rated metal case for operation in industrial environments at temperatures from -40 to 75 °C.

Advantages

The IGTP-802T extends network reach by combining long-distance fibre connectivity with Gigabit copper and delivering data and up to 30 W of power over a single Ethernet cable. It uses store-and-forward switching with IEEE 802.3x flow control and Link Fault Passthrough (LFP) to maintain transmission reliability and to notify administrators of link failures. The device’s wide input voltage range and DC-to-52 V boost design enable use with common 12–48 V DC or 24 V AC sources for redundancy without requiring special power supplies.

Suitable for

• Connecting remote PoE devices such as IP cameras, wireless access points or IP phones where local power is unavailable
• Extending PoE deployment beyond the 100 m copper limit using multi-mode fibre up to 550 m
• Industrial and outdoor cabinet installations requiring DIN-rail or wall mounting

Key specifications

• Model: PLANET IGTP-802T
• Data rate: up to 1000 Mbit/s
• Fiber connector: SC (multi-mode, 1000BASE-SX)
• Maximum fiber distance: 550 m (multi-mode)
• Ethernet: 1 × 10/100/1000BASE-T (RJ-45) with PoE+ injector
• PoE output: up to 30 W (IEEE 802.3at), backward compatible with 802.3af
• Power input: 12–48 V DC or 24 V AC (DC-to-52 V boost implemented)
• Operating temperature: −40 to 75 °C
• Case: IP30 metal housing; mounting: DIN-rail or wall
• Dimensions: 135 × 87 × 32 mm; Weight: 0.416 kg

How to use

Mount the IGTP-802T on a DIN rail or wall bracket, connect a compatible multi-mode SC fibre cable to the 1000BASE-SX uplink, and plug the powered device into the RJ-45 PoE-enabled port. Provide input power using a 12–48 V DC source or a 24 V AC source; the unit’s internal boost converts input to the required PoE voltage. No software configuration is required—PoE negotiation follows IEEE standards and the device operates as a plug-and-play media converter.

Recommendations

Install the media converter inside a protected cabinet when possible, verify fiber type and length against the 550 m multi-mode limit, and ensure the chosen power source can supply sufficient current for the connected PD and any required redundancy.
