Managed L2+ Gigabit Ethernet Switch PLANET IGS-5225-4UP1T2S

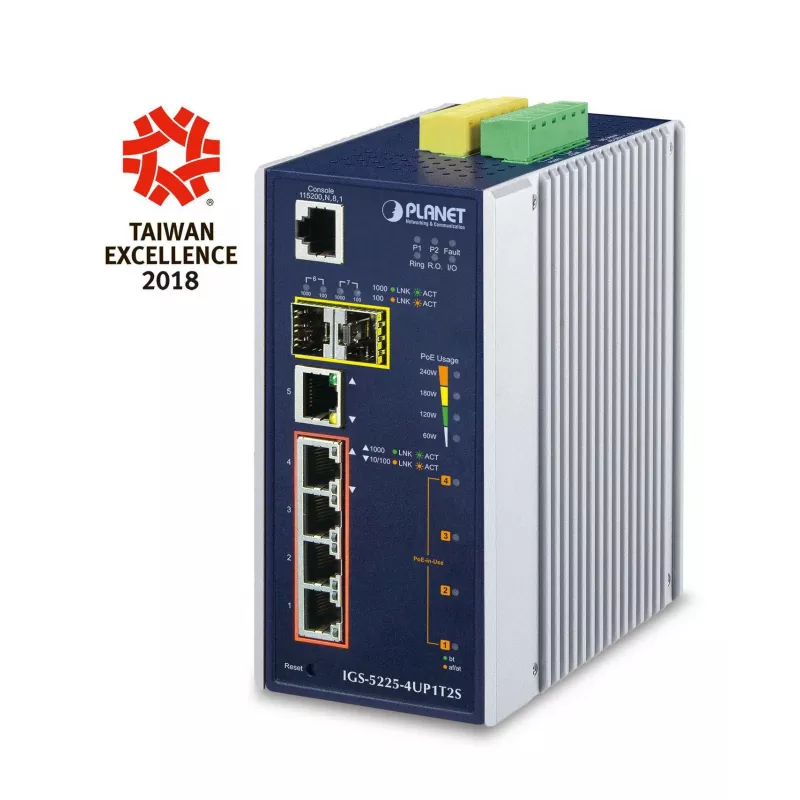

The PLANET IGS-5225-4UP1T2S is a managed L2+ Gigabit Ethernet switch designed for hardened industrial environments. It comes in an IP30 metal case, offers four 10/100/1000BASE-T ports with IEEE 802.3bt PoE++ (each port up to 90–95 W), one additional 10/100/1000BASE-T copper port and two 100/1000BASE-X SFP slots. The switch supports wide operating temperatures (-40 to 75 °C), DIN-rail or wall mounting, and provides a switching capacity of 14 Gbit/s with an 8000-entry MAC address table. It accepts 48–56 V DC input and implements multiple Layer 2 and basic Layer 3 features for reliable network operation in industrial automation and surveillance systems.

Advantages

The IGS-5225-4UP1T2S provides high-power PoE++ delivery using standard Cat5e/6 cabling (802.3bt and PoH), flexible PoE power modes (including 90 W/95 W 4-pair modes, 30 W end-/mid-span and 60 W force mode), and intelligent PoE management such as alive check, scheduled power and scheduled recycling. It includes industrial-grade redundancy (ITU-T G.8032 ERPS, MSTP), enhanced cybersecurity features, ONVIF device detection for video deployments, SMTP/SNMP trap alerts, and digital input/output for external alarms. Additional features include SFP-DDM diagnostics, Modbus TCP support for SCADA integration, and IPv4/IPv6 software VLAN routing for secure, flexible management.

Suitable for

• PoE PTZ and high-power IP cameras
• Wireless access points and PoE thin clients
• All-in-one touch PCs, POS kiosks and digital signage
• Industrial automation and SCADA/Modbus TCP integration
• Small to medium enterprise or factory edge networks requiring managed switching and redundancy

Key specifications

• Model: PLANET IGS-5225-4UP1T2S
• Ports: 4 × 10/100/1000 BASE-T PoE++ (802.3bt), 1 × 10/100/1000 BASE-T, 2 × 100/1000BASE-X SFP
• PoE power per port: up to 90–95 W (802.3bt / PoH, 4-pair)
• PoE modes: 90 W 802.3bt, 95 W UPOE/PoH, 30 W end-span, 30 W mid-span, 60 W force mode
• Switching capacity: 14 Gbit/s
• MAC address table: 8000 entries
• Input voltage: 48–56 V DC
• Operating temperature: -40 to 75 °C
• Mounting: DIN-rail or wall mount
• Weight: 1.05 kg

How to use

Install the switch on a DIN rail or wall plate in a location meeting the operating temperature and ventilation requirements. Connect the DC power supply (48–56 V) to the redundant power input terminals. Use Cat5e/6 cables to connect PoE devices to the four PoE++ ports and fiber or copper to uplinks via the SFP or copper port. Access the switch management through the web GUI, console, Telnet, or SNMPv3 to configure PoE modes, PoE schedules, VLANs, L3 IPv4/IPv6 software routing, ring protocols (ERPS/MSTP) and security policies. Enable ONVIF detection from the GUI to discover and manage connected IP cameras when required.

Recommendations

Use the appropriate PoE output mode matching the powered device specification (802.3bt/PoH or 4-pair force mode) and configure PoE schedules or scheduled recycling when deploying many cameras or APs to reduce downtime and save energy. For critical ring topologies, enable ERPS/MSTP and verify recovery times. Integrate Modbus TCP with SCADA/HMI for centralized monitoring in industrial environments.
